071174 - Dodge - EP2B-IP-208L
Regular price
$563.64 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

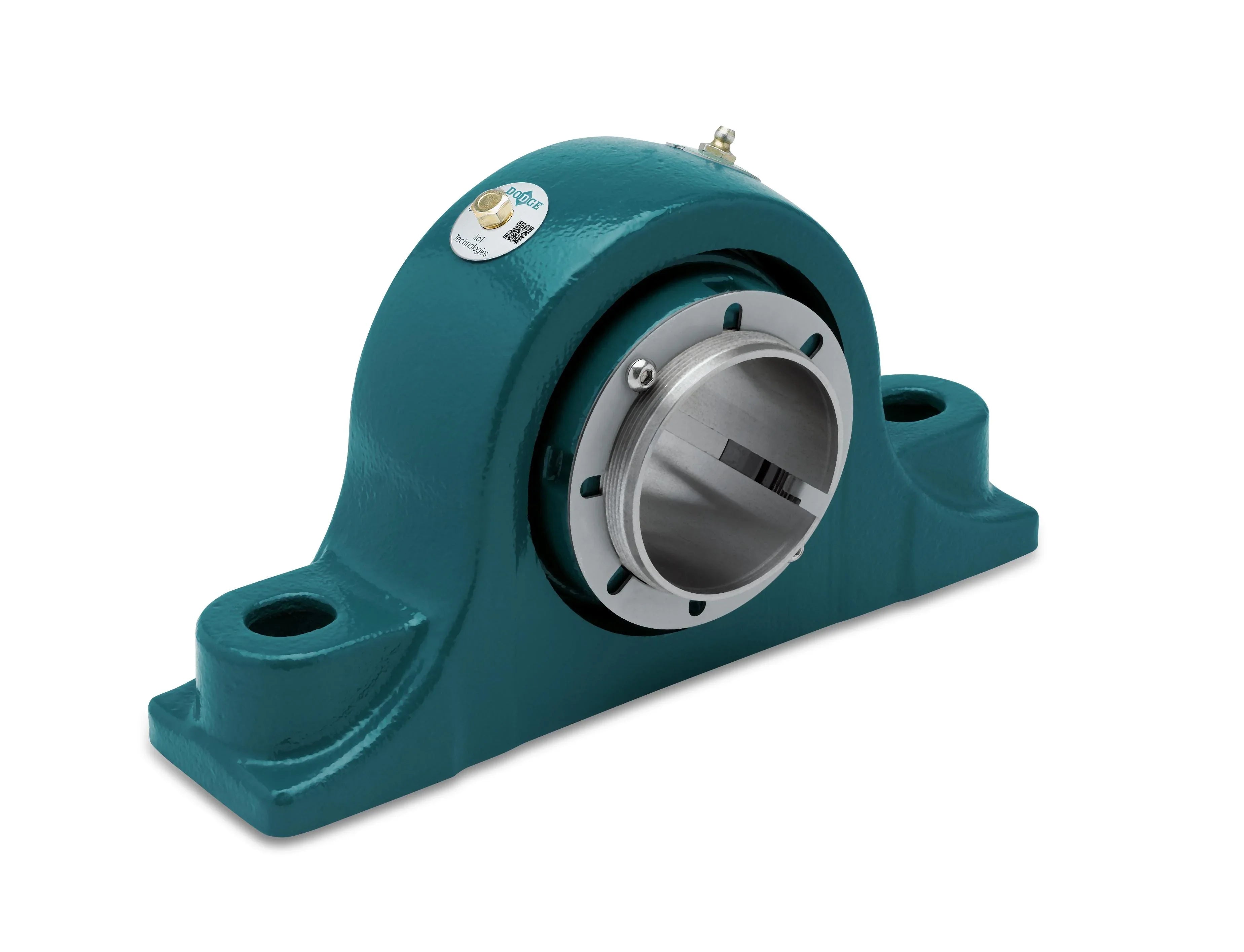

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071174 - Dodge - EP2B-IP-208L
EP2B-IP-208L
Technical Specifications
| Base to Center Height | 2.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 8.6200 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.4200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/ep2b_ip_l_asmtab.prj&varset={SS=2-1/2},{TYPE=N},{ST=Labyrinth Seal},{A=3.42},{B=10.5},{C=2.87},{DMIN=8.38},{DMAX=8.62},{F=5/8},{G=0.88},{H=1.63},{J=5.71},{L=3.88},{M=2.75},{R=1.20},{S=2.22},{X=0.25},{Y=0.025},{Z=2.95}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 39000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3800 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 47500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,TS-350 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
