071064 - Dodge - P2B522-ISN-100MLS
Regular price
$1,401.40 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

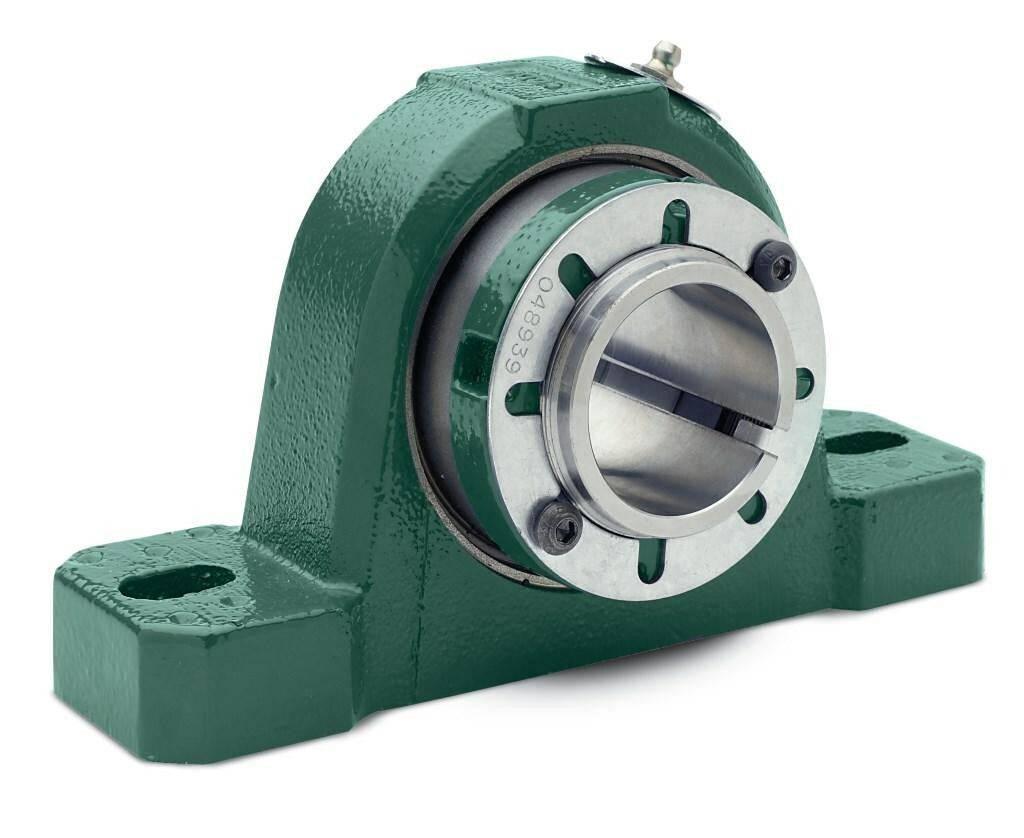

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
ISN 522-100MLS
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 125 mm |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 24 mm |
| Bolt to Bolt (Max) | 14.016 in |
| Bolt to Bolt (Min) | 12.378 in |
| Bore Length | 4.72 in |
| Dynamic Load Capacity | 82955 lbf |
| Expansion Capability | Expansion (Float) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | SN |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Insert Outer Diameter | 180 mm |
| Lubrication | Grease |
| Maximum Speed | 2200 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 100 mm |
| Static Load Capacity | 104087 lbf |
