071061 - Dodge - P2B518-ISN-080MLS
Regular price
$819.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

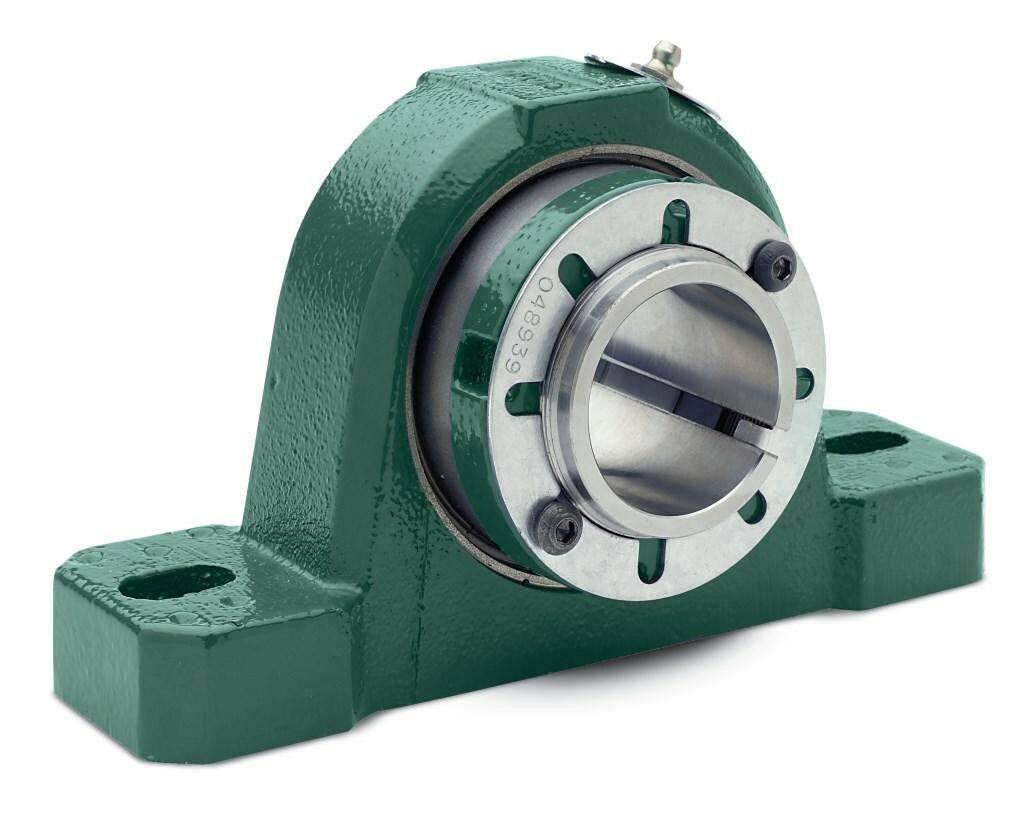

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
ISN 518-080MLS
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 95 mm |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 20 mm |
| Bolt to Bolt (Max) | 11.56 in |
| Bolt to Bolt (Min) | 10.63 in |
| Bore Length | 4.17 in |
| Dynamic Load Capacity | 65500 lbf |
| Expansion Capability | Expansion (Float) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | SN |
| Housing Material | Cast Iron |
| Housing Series | 518 Series (80mm ISN) |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Insert Outer Diameter | 160 mm |
| Lubrication | Grease |
| Maximum Speed | 1825 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 80 mm |
| Static Load Capacity | 81500 lbf |
