070839 - Dodge - TPHU-S2-307RE
Regular price
$1,499.52 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

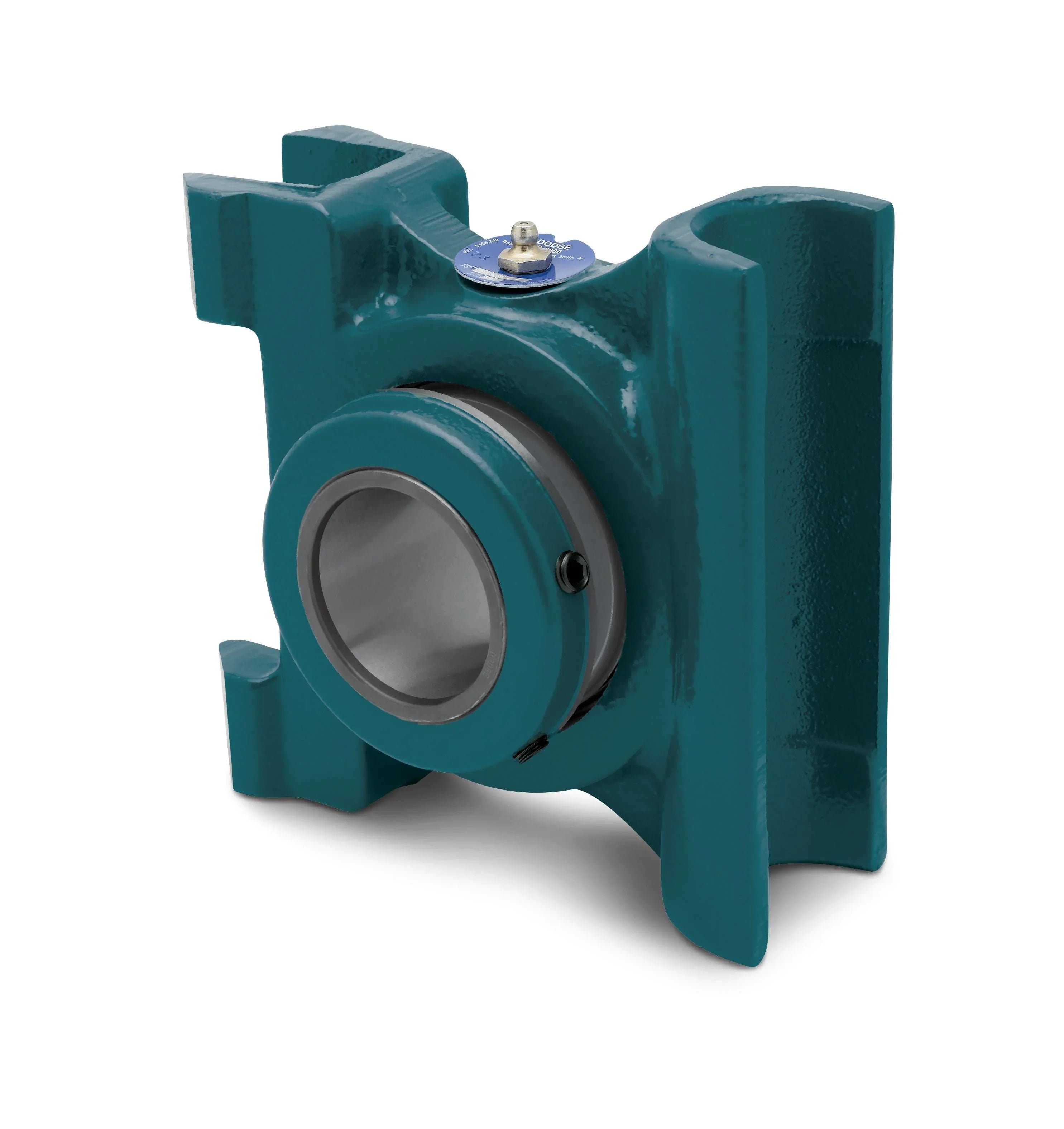

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070839 - Dodge - TPHU-S2-307RE
TPHU-S2-307RE
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bore Length | 4.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/tphu_s2_hci_asmtab.prj&varset={SS=3-7/16},{PN=070839},{DESCRIPTION=TPHU-S2-307RE},{EF=Expansion Type},{ST=Contact Seal},{A=4},{B=3-1/8},{C=13/16},{D=8-13/32},{E=4-3/32},{F=1-9/16},{G=11/16},{H=9-1/2},{J=10-1/16},{K=4-1/2},{L=5-1/2},{M=9},{N=2-17/32},{P=2-1/4},{Q=1-5/16},{R=4-7/32},{S=2-21/32},{T=5/16},{U=1-23/32},{V=3-1/8},{W=31/32},{X=1/4},{Y=0.025},{Z=4-3/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 65500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Top-Angle Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1280 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 81500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TP-50,TPHU-150 |
| HTS Code | 8483204080 |
| ECCN | ear99 |
