070829 - Dodge - TPHU-S2-115RE
Regular price
$576.58 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

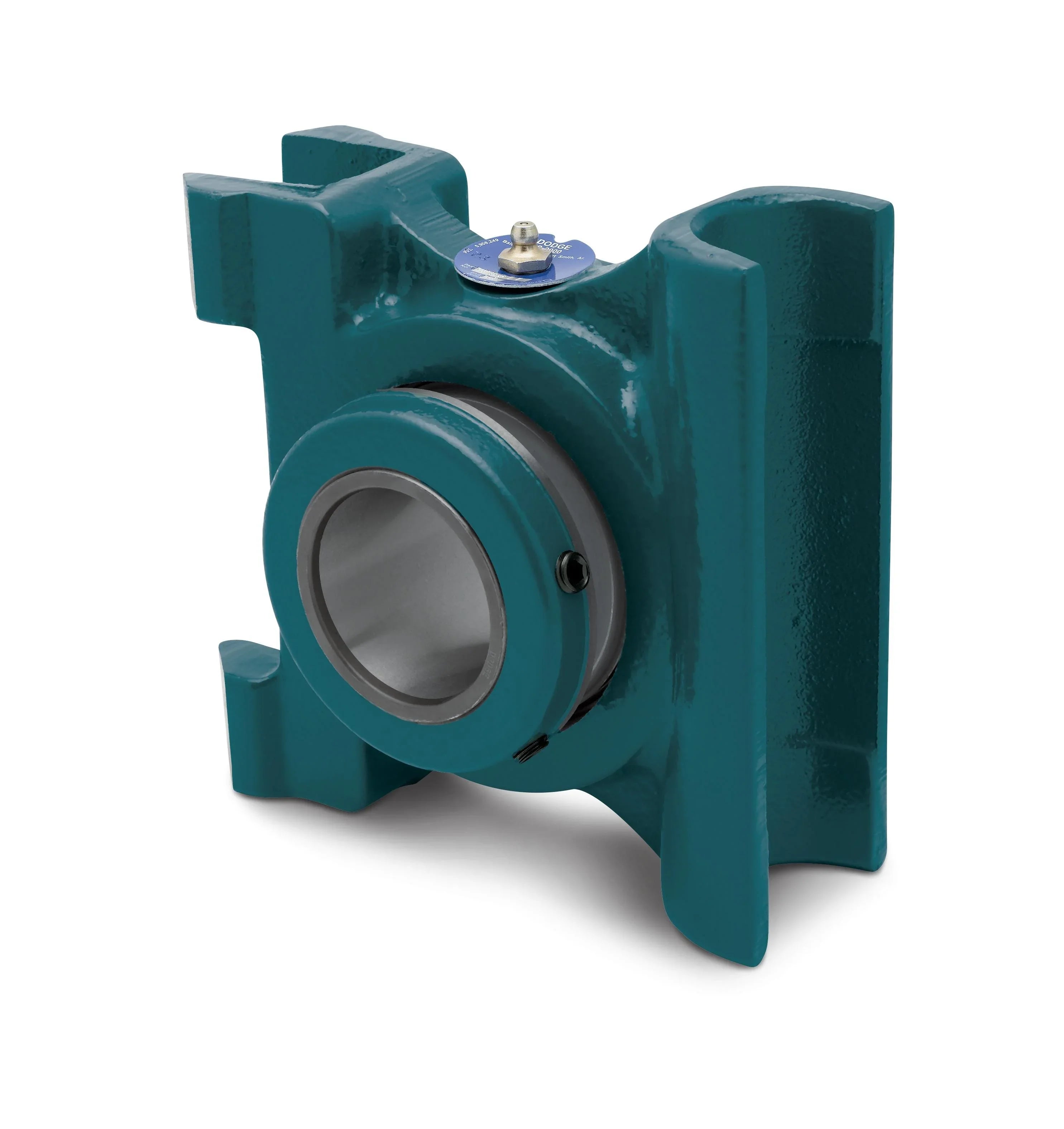

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070829 - Dodge - TPHU-S2-115RE
TPHU-S2-115RE
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bore Length | 2.8400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/tphu_s2_hci_asmtab.prj&varset={SS=1-15/16},{PN=070829},{DESCRIPTION=TPHU-S2-115RE},{EF=Expansion Type},{ST=Contact Seal},{A=2-27/32},{B=2-3/8},{C=13/16},{D=5-1/4},{E=2-3/8},{F=1-1/16},{G=7/16},{H=6-1/2},{J=6-7/16},{K=3-1/16},{L=3-7/16},{M=6},{N=1-21/32},{P=1-1/4},{Q=13/16},{R=3-3/16},{S=2},{T=5/16},{U=1-1/16},{V=2},{W=7/8},{X=1/4},{Y=0.020},{Z=2-19/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 22000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Top-Angle Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 24000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TP-10 |
| HTS Code | 8483204080 |
| ECCN | ear99 |
