070815 - Dodge - TPHU-S2-207R
Regular price
$777.22 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

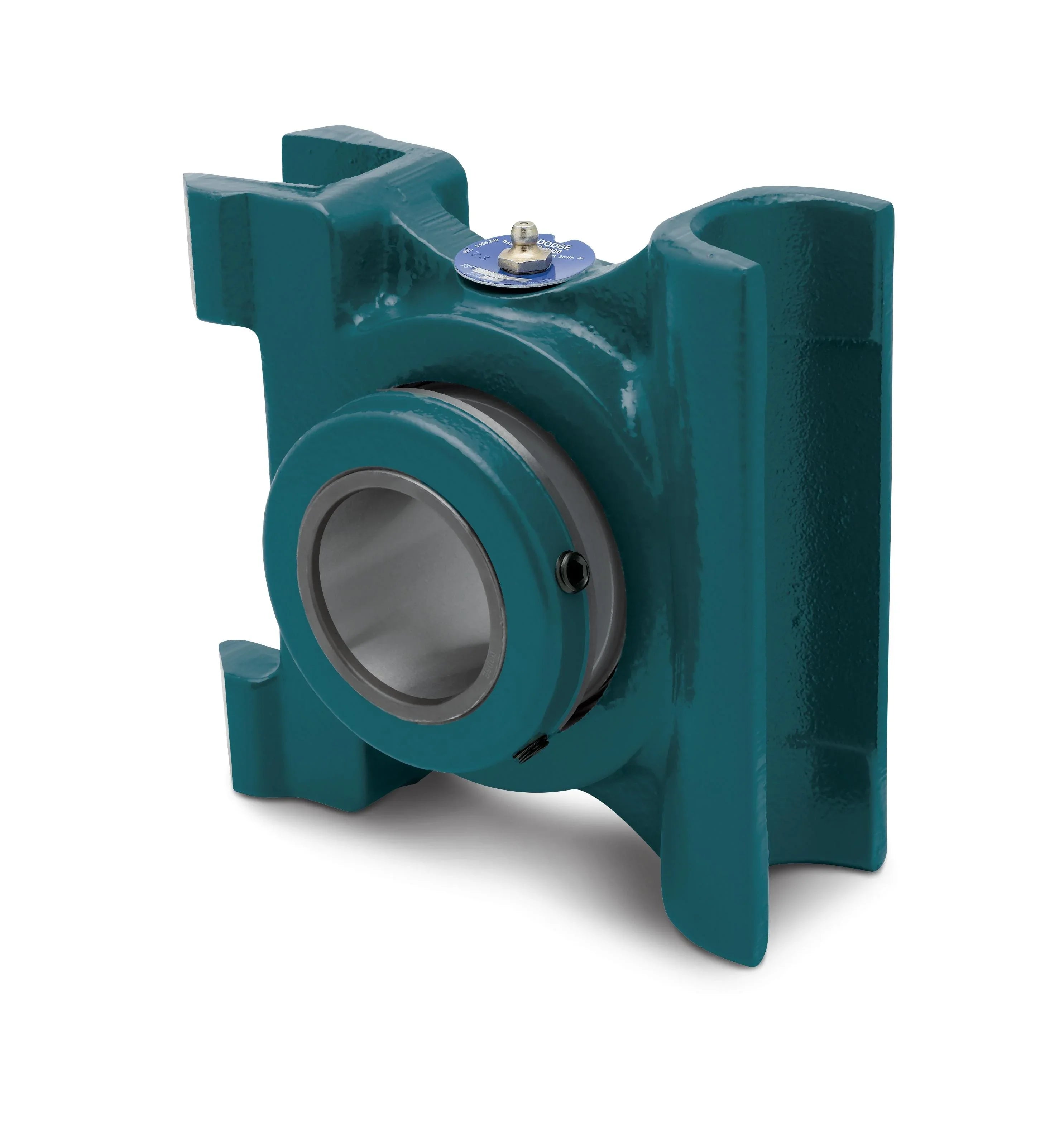

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070815 - Dodge - TPHU-S2-207R
TPHU-S2-207R
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bore Length | 3.2000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/tphu_s2_hci_asmtab.prj&varset={SS=2-7/16},{PN=070815},{DESCRIPTION=TPHU-S2-207R},{EF=Non-Expansion Type},{ST=Contact Seal},{A=3-13/64},{B=2-3/4},{C=13/16},{D=6-21/64},{E=3-21/64},{F=1-7/16},{G=9/16},{H=8-1/2},{J=8-9/32},{K=3-27/32},{L=4-1/16},{M=8},{N=1-7/8},{P=1-3/4},{Q=1-1/16},{R=3-17/32},{S=2-5/32},{T=5/16},{U=1-7/16},{V=2-3/4},{W=1},{X=1/4},{Y=0.025},{Z=2-15/16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 39000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Top-Angle Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1740 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 47500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TP-40,TPHU-130 |
| HTS Code | 8483907000 |
| ECCN | ear99 |
