070801 - Dodge - WSTU-S2-415RE
Regular price
$5,364.48 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

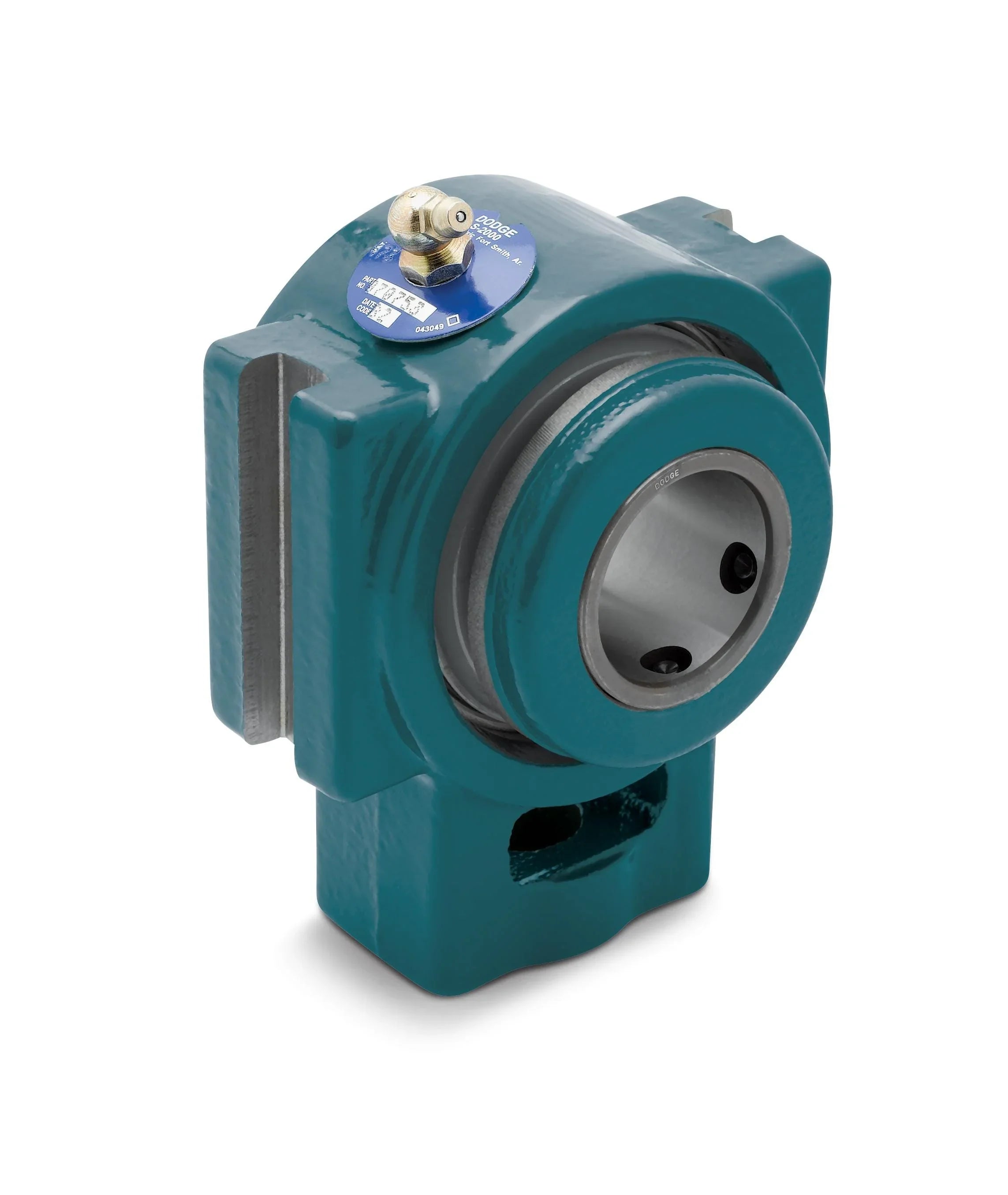

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070801 - Dodge - WSTU-S2-415RE
WSTU-S2-415RE
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bore Length | 6.9100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/wstu_s2_hci_asmtab.prj&varset={SS=4-15/16},{PN=070801},{DESCRIPTION=WSTU-S2-415RE},{EF=Expansion Type},{ST=Contact Seal},{A=6-29/32},{B=15-5/8},{C=2-1/16},{D=9},{E=10-5/16},{F=2-3/8},{G=2-1/2},{H=2-1/2},{J=7},{K=3-3/4},{L=7-29/64},{M=10-1/4},{N=11-1/4},{R=5-47/64},{S=3-41/64},{T=4-3/16},{X=3/8},{Y=0.036},{Z=5-27/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 146000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 870 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 4.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 196000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-1004 |
| HTS Code | 8483204080 |
| ECCN | ear99 |
