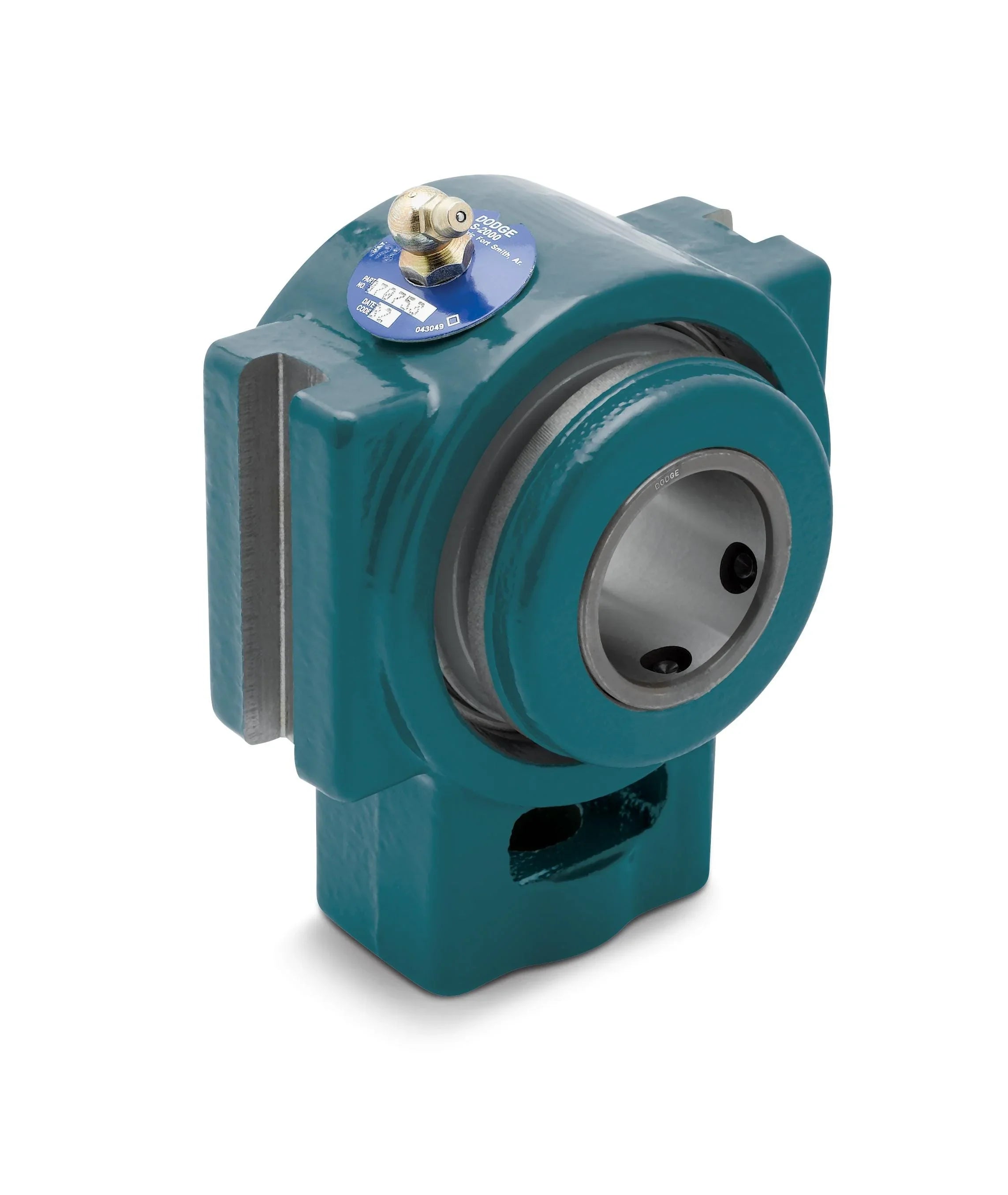

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070785 - Dodge - WSTU-S2-115RE
WSTU-S2-115RE
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bore Length | 2.8400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/wstu_s2_hci_asmtab.prj&varset={SS=1-15/16},{PN=070785},{DESCRIPTION=WSTU-S2-115RE},{EF=Expansion Type},{ST=Contact Seal},{A=2-27/32},{B=6-3/16},{C=11/16},{D=3-5/8},{E=3-15/16},{F=1-1/8},{G=15/16},{H=3/4},{J=3-5/16},{K=1-15/16},{L=3-7/16},{M=4},{N=4-3/4},{R=2-15/16},{S=1-15/16},{T=2},{X=1/4},{Y=0.020},{Z=2-19/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 22000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 24000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-400 |
| HTS Code | 8483204080 |
| ECCN | ear99 |
