070648 - Dodge - FC-S2-111R
Regular price
$447.74 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

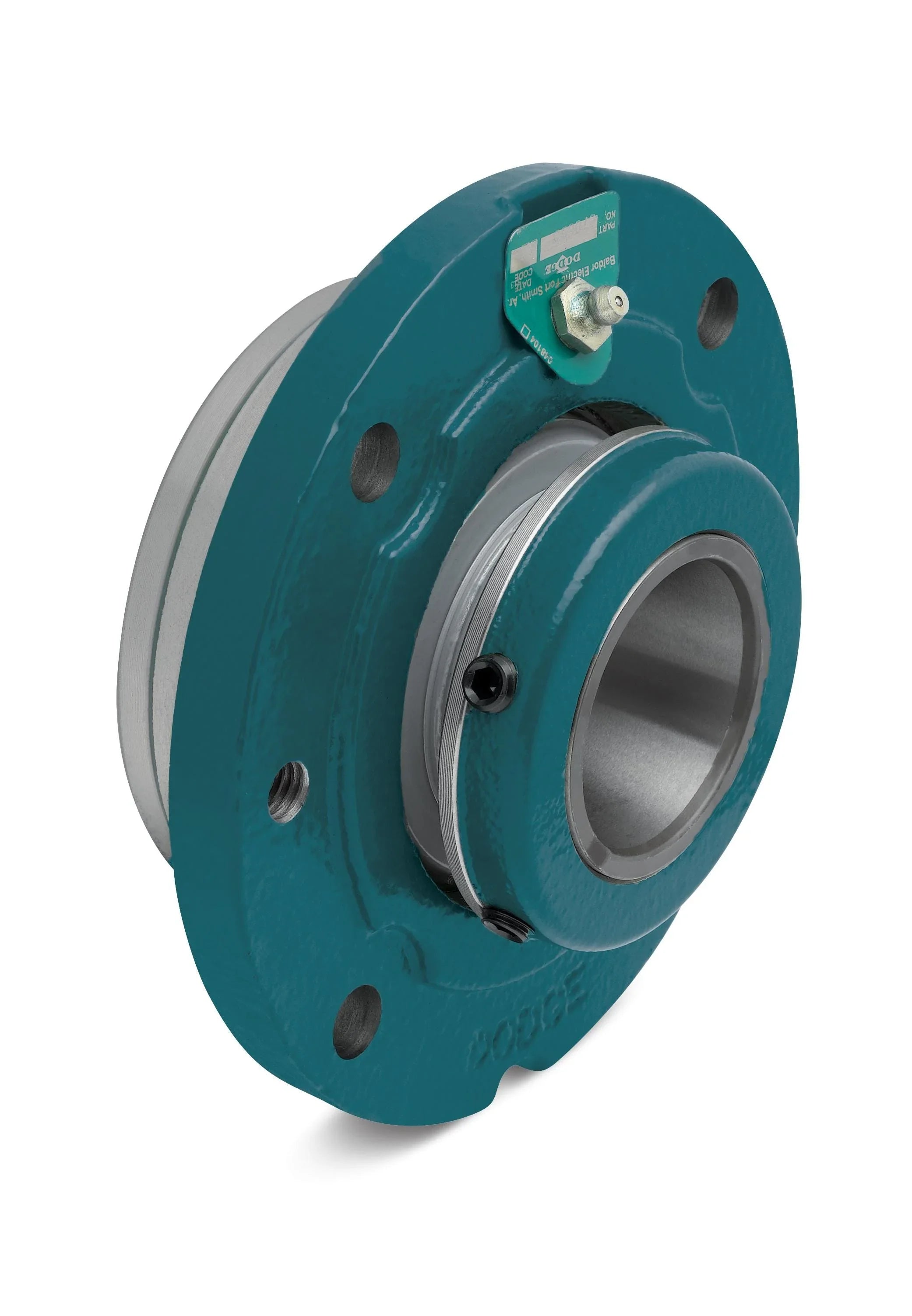

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070648 - Dodge - FC-S2-111R
FC-S2-111R
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 3.1300 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.4375 |
| Bolt Diameter (Unit) | INCH |
| Bore Length | 2.6700 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/fc_s2_hci_asmtab.prj&varset={SS=1-11/16},{PN=070648},{DESCRIPTION=FC-S2-111R},{EF=Non-Expansion Type},{ST=Contact Seal},{A=2-43/64},{B=6-1/8},{C=1-29/32},{D=3-5/8},{DD=5-1/8},{E=7/8},{F=7/16},{G=1-29/64},{H=1/2},{K=4.250},{L=3-3/16},{M=7/16-14},{N=2-23/32},{P=1-7/32},{Q=1-17/64},{X=1/4},{Y=0.020},{Z=2-5/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 20800 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2460 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.8800 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 4.2500 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.6875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 22000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483204080 |
| ECCN | ear99 |
