070607 - Dodge - F4S-S2-200L
Regular price
$479.42 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

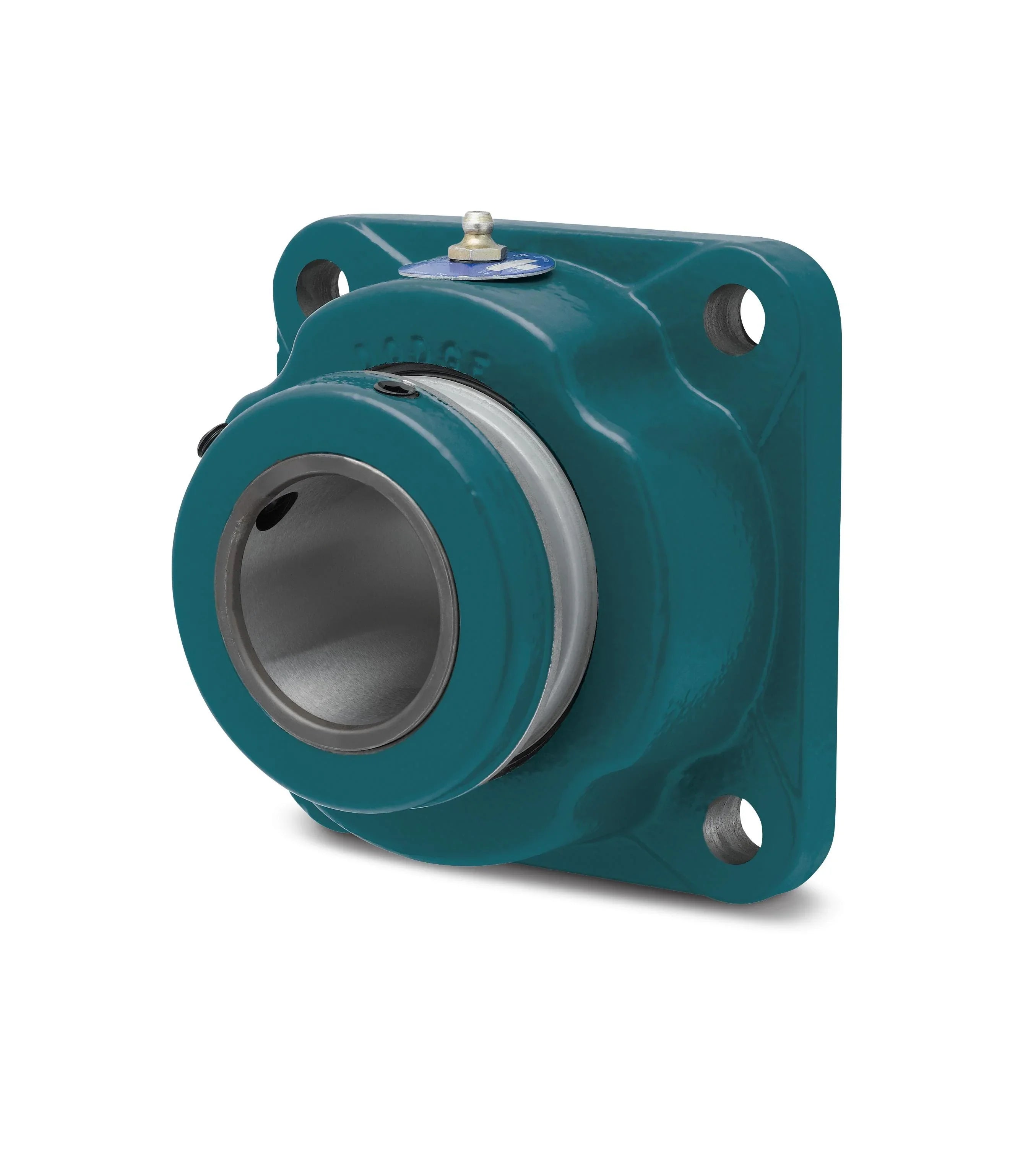

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070607 - Dodge - F4S-S2-200L
F4S-S2-200L
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 5.7500 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.0600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.0600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 0.0000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 2.8400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/f4s_s2_hli_asmtab.prj&varset={SS=2},{PN=070607},{DESCRIPTION=F4S-S2-200L},{EF=Non-Expansion Type},{ST=Labyrinth Seal},{A=2-27/32},{B=5-19/64},{C=3-5/32},{D=4-1/16},{F=1/2},{G=1-15/64},{H=9/16},{J=4-31/32},{K=5-3/4},{L=3-7/16},{N=2-29/32},{P=5/16},{X=1/4},{Y=0.020},{Z=2-19/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 22000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 90.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 3180 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 24000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8542900000 |
| ECCN | ear99 |
