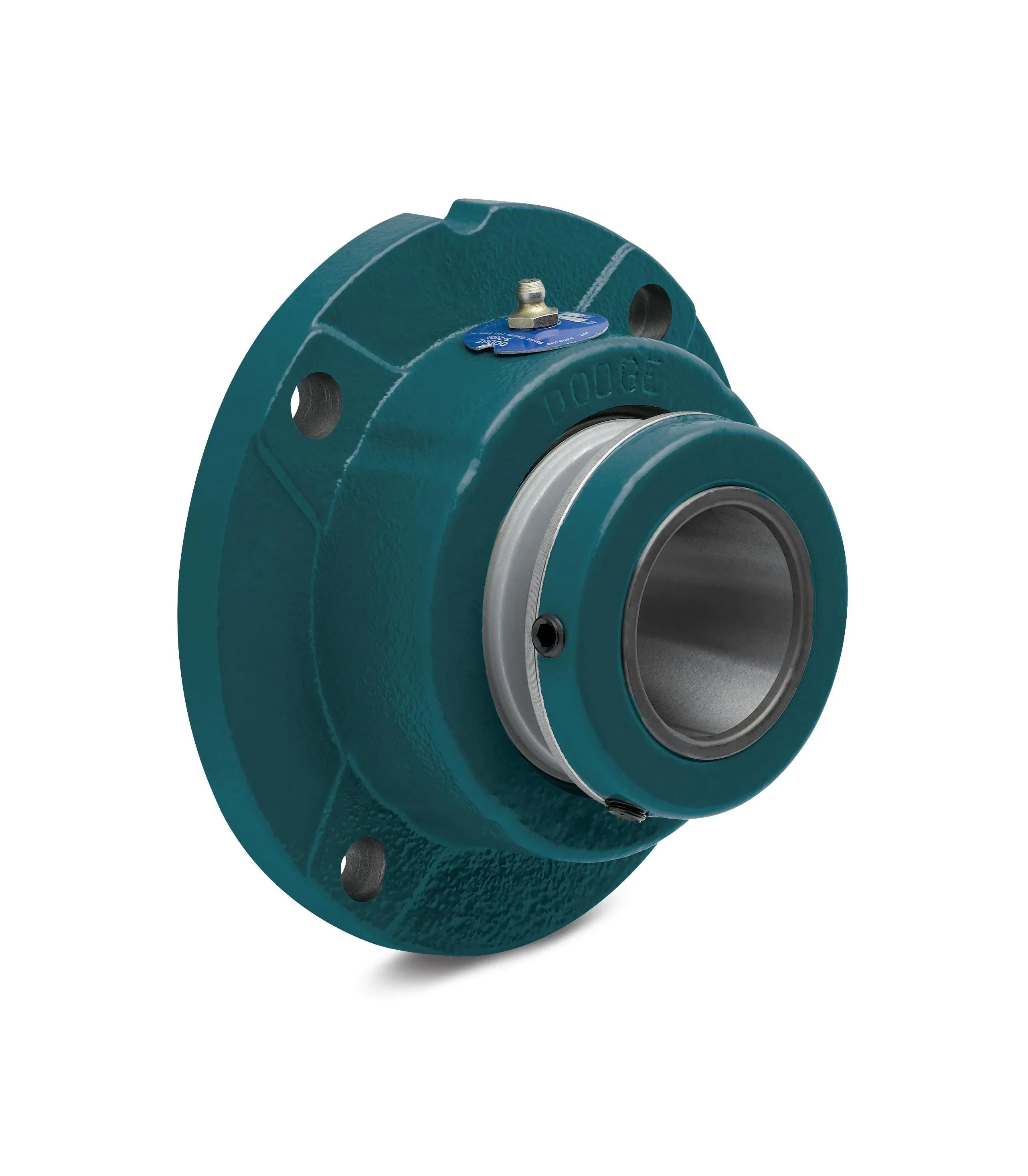

070450 - Dodge - F4R-S2-300R
Regular price
$840.58 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
F4R-S2-300R
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 7.88 in |
| Bolt Diameter | 0.75 in |
| Bolt to Bolt (Max) | 5.56 in |
| Bolt to Bolt (Min) | 5.56 in |
| Bolt Width | 0 in |
| Bore Length | 3.59 in |
| Dynamic Load Capacity | 41500 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Round) |
| Insert Material | Steel |
| Insert Outer Diameter | 130 mm |
| Lubrication | Grease |
| Maximum Speed | 1490 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 3 in |
| Static Load Capacity | 53000 lbf |
