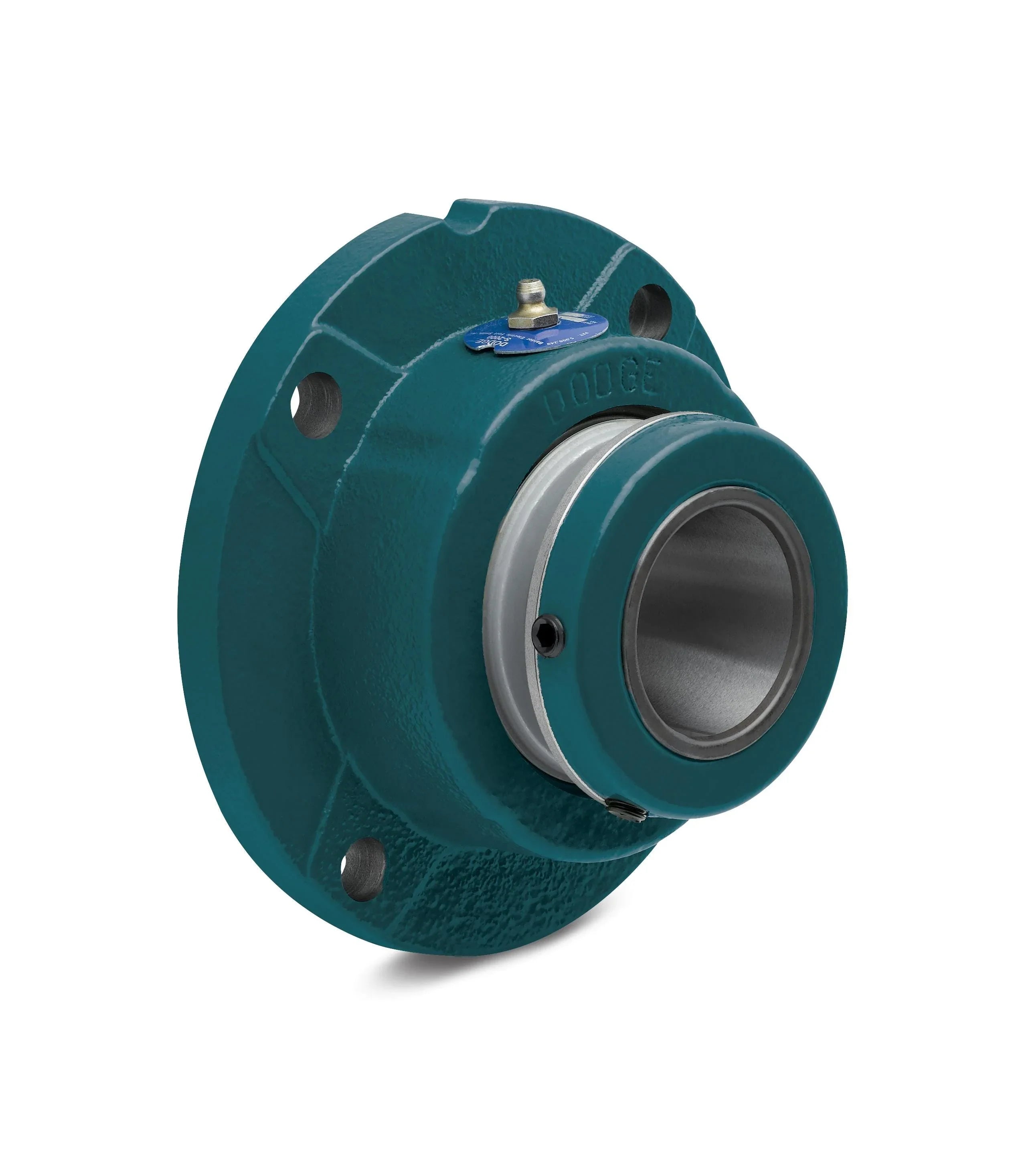

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070449 - Dodge - F4R-S2-215R
F4R-S2-215R
Technical Specifications
| Bearing Type | Spherical Roller |
| Bolt Circle | 7.8800 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.5600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.5600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/f4r_s2_hci_asmtab.prj&varset={SS=2-15/16},{PN=070449},{DESCRIPTION=F4R-S2-215R},{EF=Non-Expansion Type},{ST=Contact Seal},{A=3-19/32},{B=9-1/4},{C=3-57/64},{D=5-9/16},{DD=7-7/8},{E=2-25/64},{F=3/4},{H=7/8},{J=6-23/64},{L=4-45/64},{P=19/64},{X=1/4},{Y=0.025},{Z=3-15/32}&hidePortlets=searchHeader |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Series | 215 Series (211-300 S2IP) |
| Insert Material | Steel |
| Lubrication | Grease |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| HTS Code | 8483204080 |
| ECCN | ear99 |
