070416 - Dodge - P4B-S2-200LE
Regular price
$451.97 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

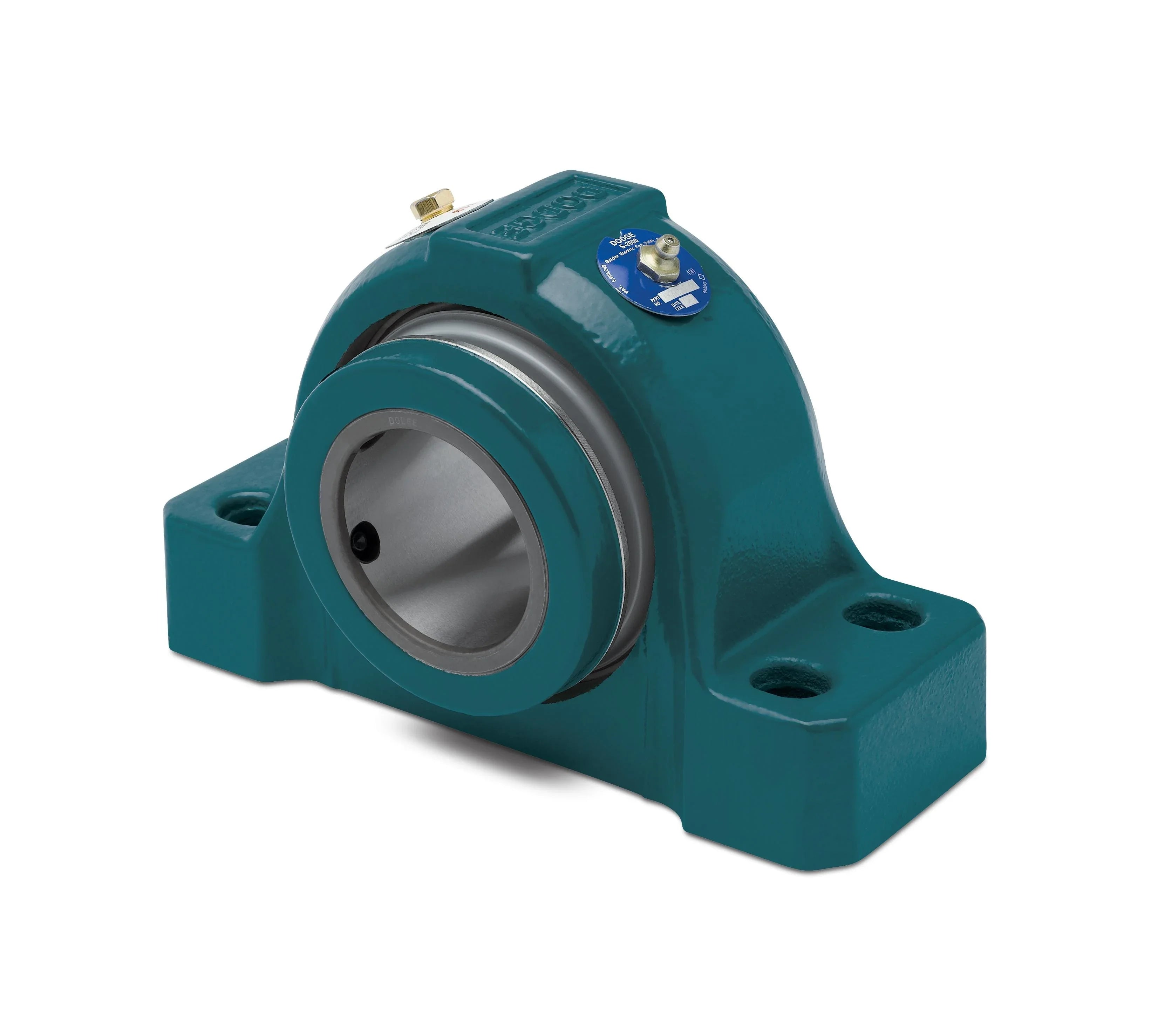

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070416 - Dodge - P4B-S2-200LE
P4B-S2-200LE
Technical Specifications
| Base to Center Height | 2.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.4400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.0600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 1.5900 |
| Bolt Width (Unit) | INCH |
| Bore Length | 2.8400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/p4b_s2_hl_i_asmtab.prj&varset={SS=2},{PN=070416},{DESCRIPTION=P4B-S2-200LE},{EF=Expansion Type},{ST=Labyrinth Seal},{A=2-27/32},{B=8},{C=3-3/16},{DMIN=6-1/16},{DMAX=6-7/16},{E=1-19/32},{F=1/2},{G=13/16},{H=1-5/16},{J=4-9/16},{L=3-7/16},{M=2-1/4},{R=27/32},{S=2},{X=1/4},{Y=0.020},{Z=2-19/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 22000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3180 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 24000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
