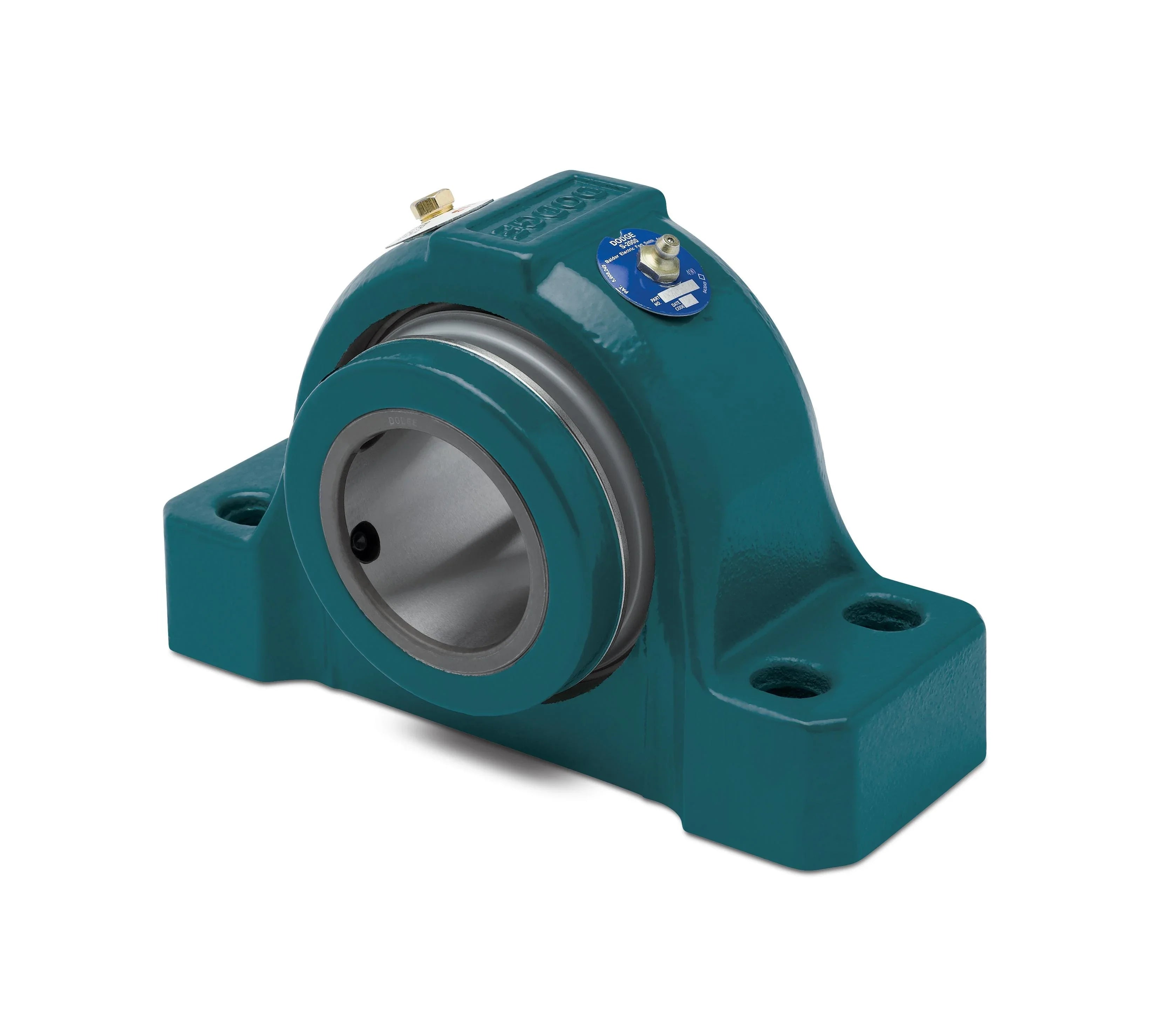

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070411 - Dodge - P4B-S2-407L
P4B-S2-407L
Technical Specifications
| Base to Center Height | 4.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 14.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 13.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.5000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 6.5300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/p4b_s2_hl_i_asmtab.prj&varset={SS=4-7/16},{PN=070411},{DESCRIPTION=P4B-S2-407L},{EF=Non-Expansion Type},{ST=Labyrinth Seal},{A=6-17/32},{B=16-1/2},{C=4-3/4},{DMIN=13},{DMAX=14},{E=2-1/2},{F=3/4},{G=1-3/8},{H=2-3/4},{J=9-5/8},{L=6-29/64},{M=4-3/4},{R=3-5/64},{S=3-29/64},{X=3/8},{Y=0.036},{Z=5}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 104000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 4.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 132000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-350 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
