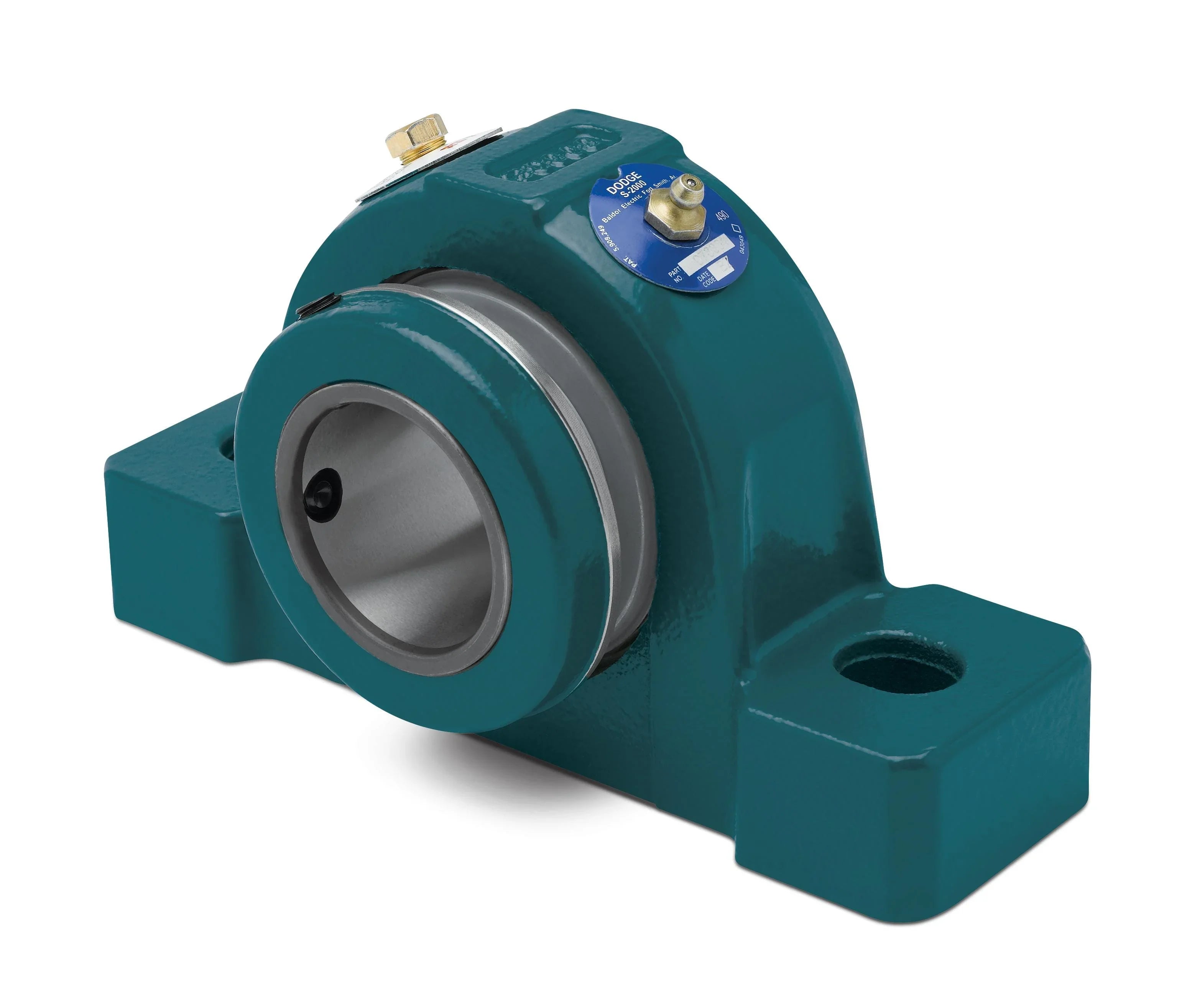

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070288 - Dodge - P2B-S2-307R
P2B-S2-307R
Technical Specifications
| Base to Center Height | 3.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 10.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 9.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 4.0200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/p2b_s2_hc_i_asmtab.prj&varset={SS=3-7/16},{PN=070288},{DESCRIPTION=P2B-S2-307R},{EF=Non-Expansion Type},{ST=Contact Seal},{A=4},{B=13},{C=3-27/64},{DMIN=9-3/8},{DMAX=10-5/8},{F=7/8},{G=1-5/8},{H=2-1/4},{J=7-1/2},{L=5-1/2},{M=3-3/4},{R=1-31/64},{S=2-33/64},{X=1/4},{Y=0.025},{Z=4-3/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 65500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1280 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 81500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-250,TS-400 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
