070273 - Dodge - P2B-S2-107R
Regular price
$302.02 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

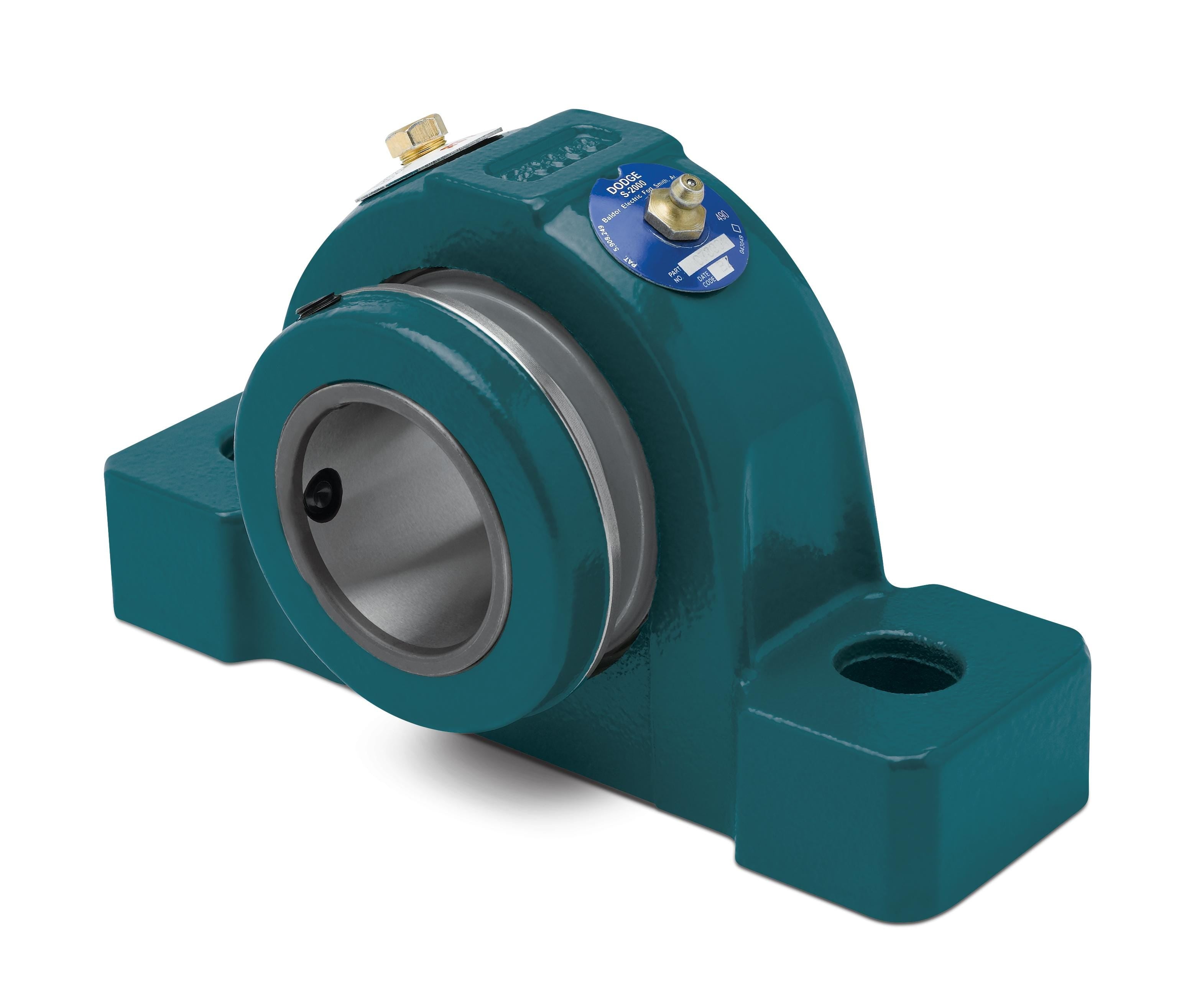

070273 - Dodge - P2B-S2-107R
P2B-S2-107R
Technical Specifications
| Base to Center Height | 1.8800 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.2000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.8100 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.5300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/p2b_s2_hc_i_asmtab.prj&varset={SS=1-7/16},{PN=070273},{DESCRIPTION=P2B-S2-107R},{EF=Non-Expansion Type},{ST=Contact Seal},{A=2-17/32},{B=6-7/8},{C=1-61/64},{DMIN=4-13/16},{DMAX=5-13/64},{F=1/2},{G=13/16},{H=1-1/8},{J=3-7/8},{L=2-3/4},{M=1-7/8},{R=7/8},{S=1-21/32},{X=3/16},{Y=0.020},{Z=1-51/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 20800 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2900 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 21000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,TS-250 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
