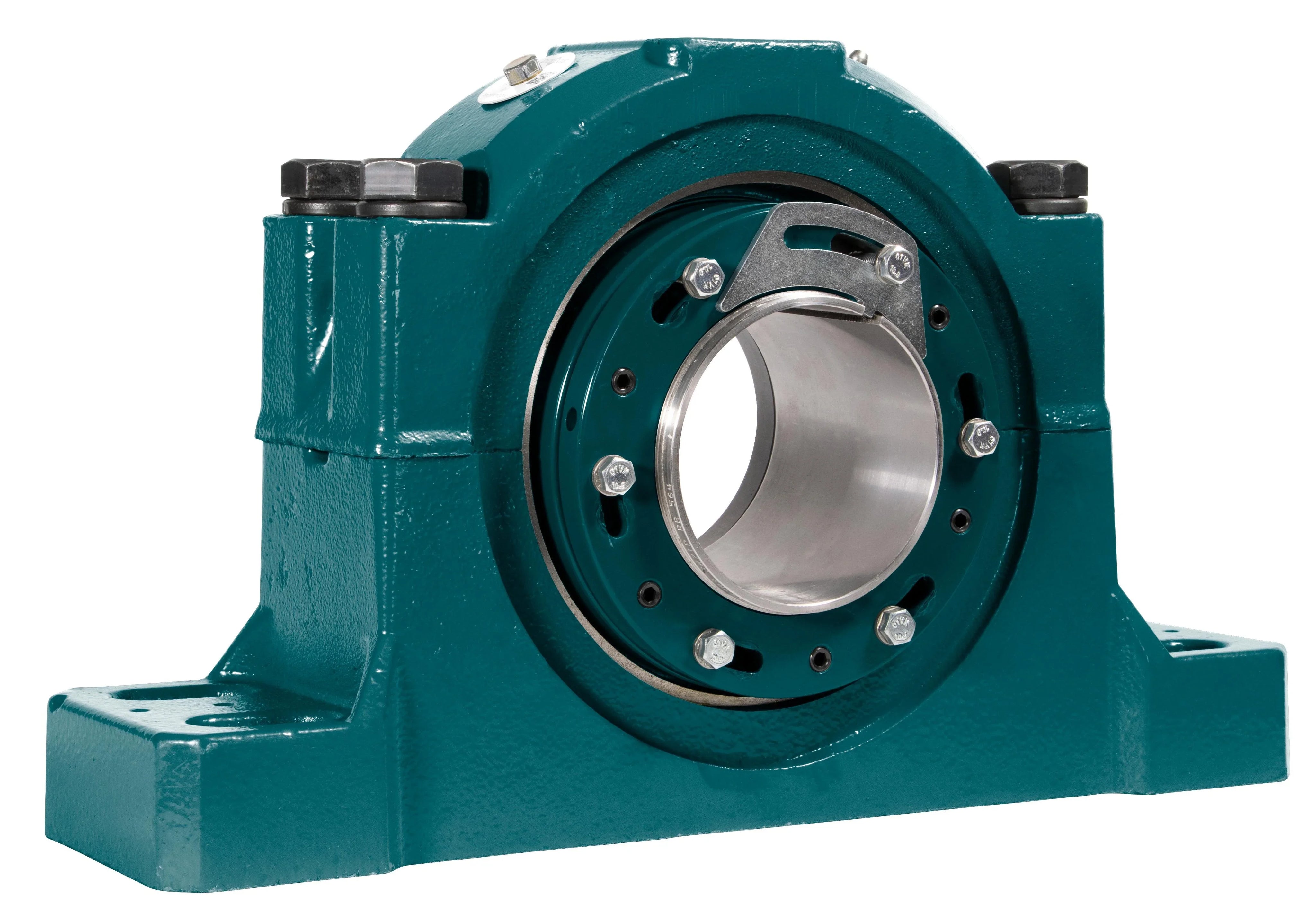

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070083 - Dodge - P4B528-ISAF-415L
P4B528-ISAF-415L
Technical Specifications
| Base to Center Height | 6.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 17.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 15.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.3800 |
| Bolt Width (Unit) | INCH |
| Bore Length | 5.9800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/isaf/isaf_p2b_p4b_asmtab.prj&varset={SS=4-15/16},{SAF=528},{PN=070083},{DESCRIPTION=P4B528-ISAF-415L},{EF=Non-Expansion Type},{ST=Labyrinth Seal},{A=6.023},{B=19-45/64},{C=5-7/8},{DMIN=15-5/8},{DMAX=17-3/8},{E=3-3/8},{F=1},{G=2},{H=2-1/16},{J=12-13/32},{L=7-5/8},{M=6},{P=13-3/8},{S=3.916},{X=3/8},{Y=0.036},{Z=5-27/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 146000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1800 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 4.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 196000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-500,TS-500 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
