070061 - Dodge - P4B522-ISAF-315R
Regular price
$1,891.56 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

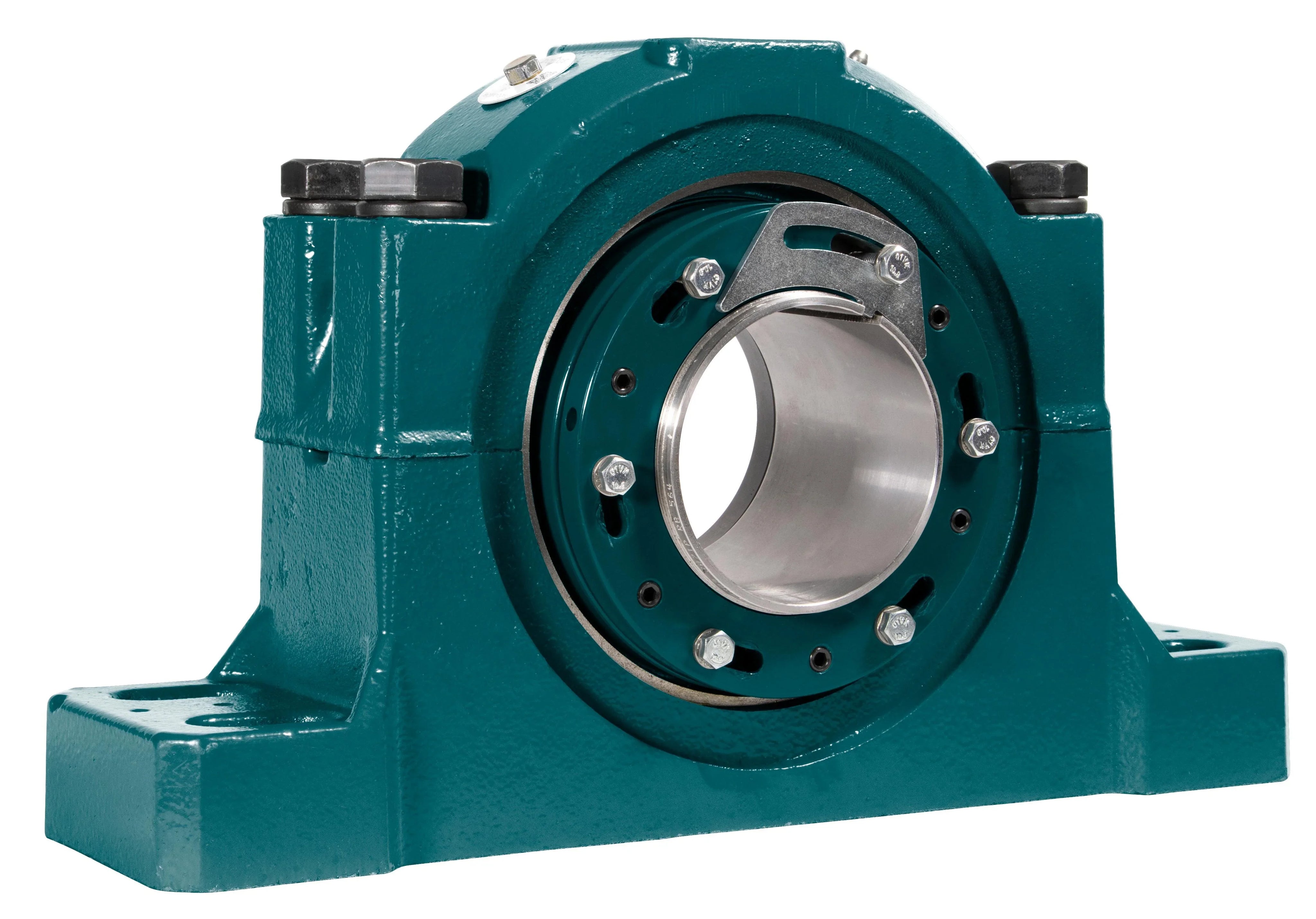

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070061 - Dodge - P4B522-ISAF-315R
P4B522-ISAF-315R
Technical Specifications
| Base to Center Height | 4.9400 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 14.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 12.5900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 4.7000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/isaf/isaf_p2b_p4b_asmtab.prj&varset={SS=3-15/16},{SAF=522},{PN=070061},{DESCRIPTION=P4B522-ISAF-315R},{EF=Non-Expansion Type},{ST=Contact Seal},{A=4.82},{B=16-1/2},{C=4-3/4},{DMIN=12-19/32},{DMAX=14-1/2},{E=2-3/4},{F=3/4},{G=1-53/64},{H=1-25/32},{J=10-3/16},{L=6.15},{M=4-15/16},{P=10-23/32},{S=3.173},{X=3/8},{Y=0.025},{Z=4-1/2}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 83000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1530 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 104000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-400,TS-500 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
