070057 - Dodge - P2B513-ISAF-203R
Regular price
$594.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

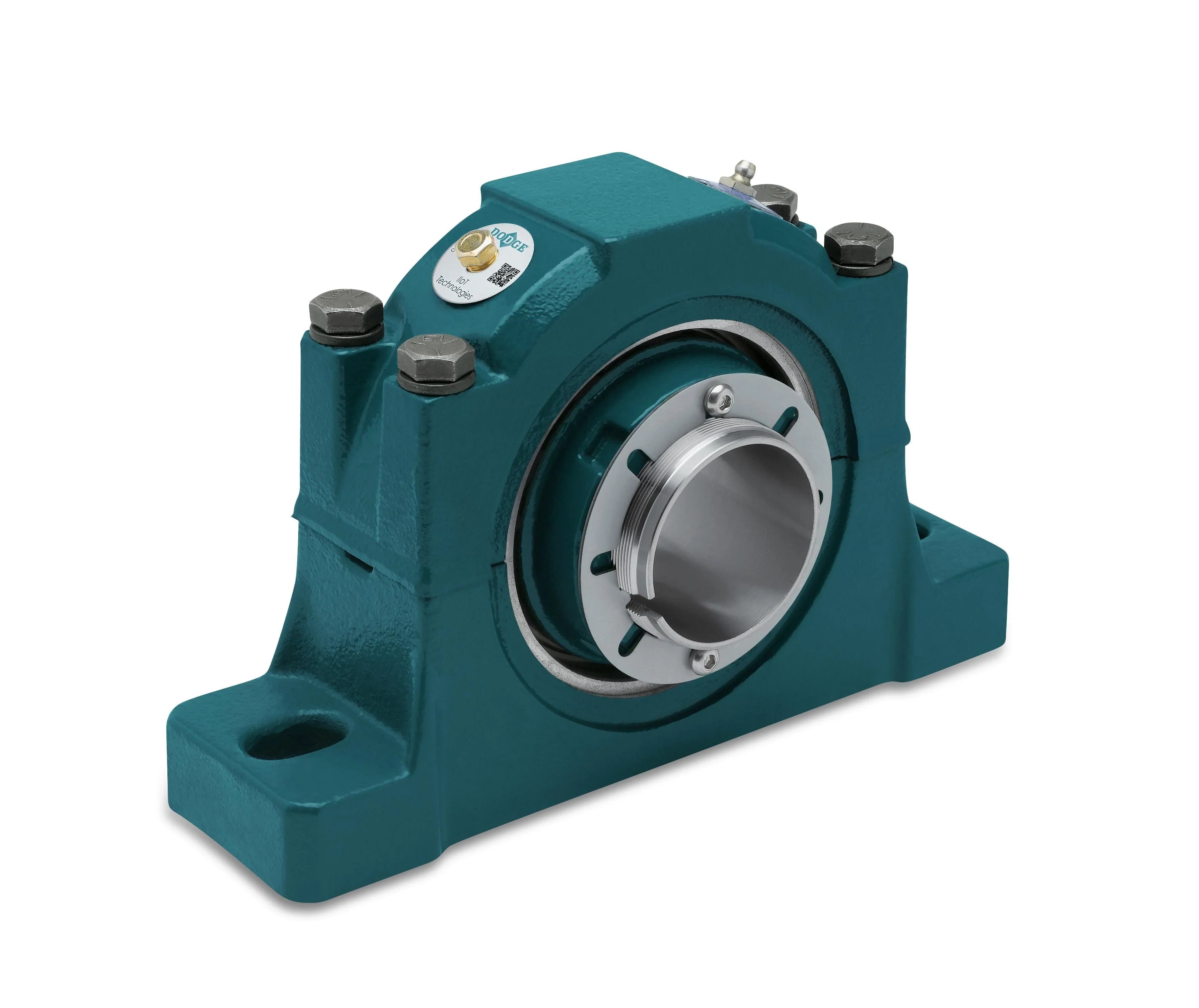

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070057 - Dodge - P2B513-ISAF-203R
P2B513-ISAF-203R
Technical Specifications
| Base to Center Height | 3.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 9.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.0300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/isaf/isaf_p2b_p4b_asmtab.prj&varset={SS=2-3/16},{SAF=513},{PN=070057},{DESCRIPTION=P2B513-ISAF-203R},{EF=Non-Expansion Type},{ST=Contact Seal},{A=3-1/32},{B=11},{C=3-1/4},{DMIN=8-21/32},{DMAX=9-1/2},{E=N/A},{F=5/8},{G=1-5/32},{H=1-1/32},{J=6-11/32},{L=3-1/2},{M=3},{P=6-31/32},{S=1-7/8},{X=7/32},{Y=0.025},{Z=2-19/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 27000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 29000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,TS-400 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
