070054 - Dodge - P2B509-ISAF-107R
Regular price
$448.80 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

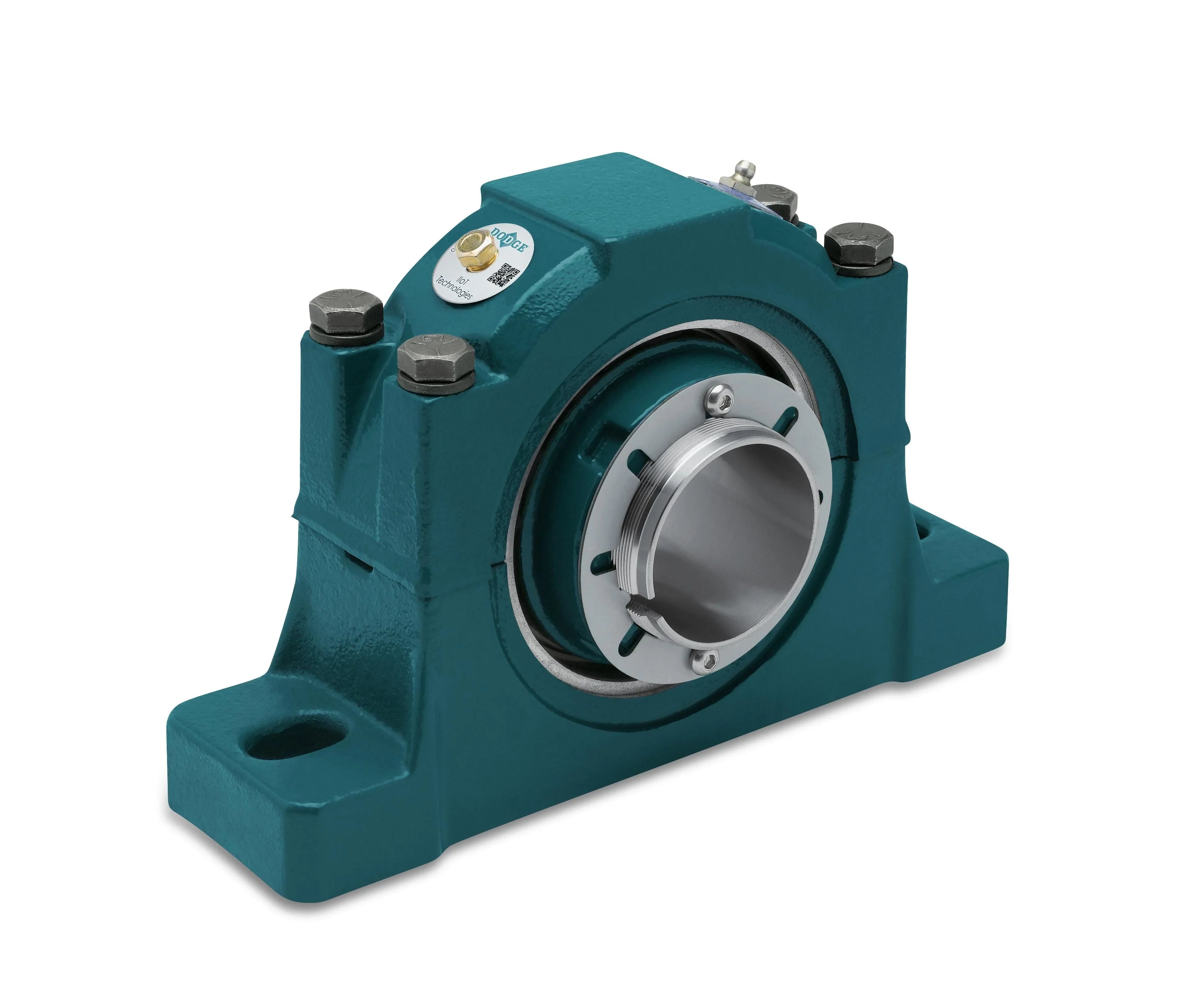

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
070054 - Dodge - P2B509-ISAF-107R
P2B509-ISAF-107R
Technical Specifications
| Base to Center Height | 2.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 7.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.6300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/isaf/isaf_p2b_p4b_asmtab.prj&varset={SS=1-7/16},{SAF=509},{PN=070054},{DESCRIPTION=P2B509-ISAF-107R},{EF=Non-Expansion Type},{ST=Contact Seal},{A=2-5/8},{B=8-1/4},{C=2-3/16},{DMIN=6-1/4},{DMAX=7},{E=N/A},{F=1/2},{G=15/16},{H=7/8},{J=4-15/16},{L=2-23/32},{M=2-1/4},{P=5-33/64},{S=1-17/32},{X=7/32},{Y=0.020},{Z=1-51/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 20800 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3975 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 21000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
