069922 - Dodge - FC-IP-303LE
Regular price
$1,630.20 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

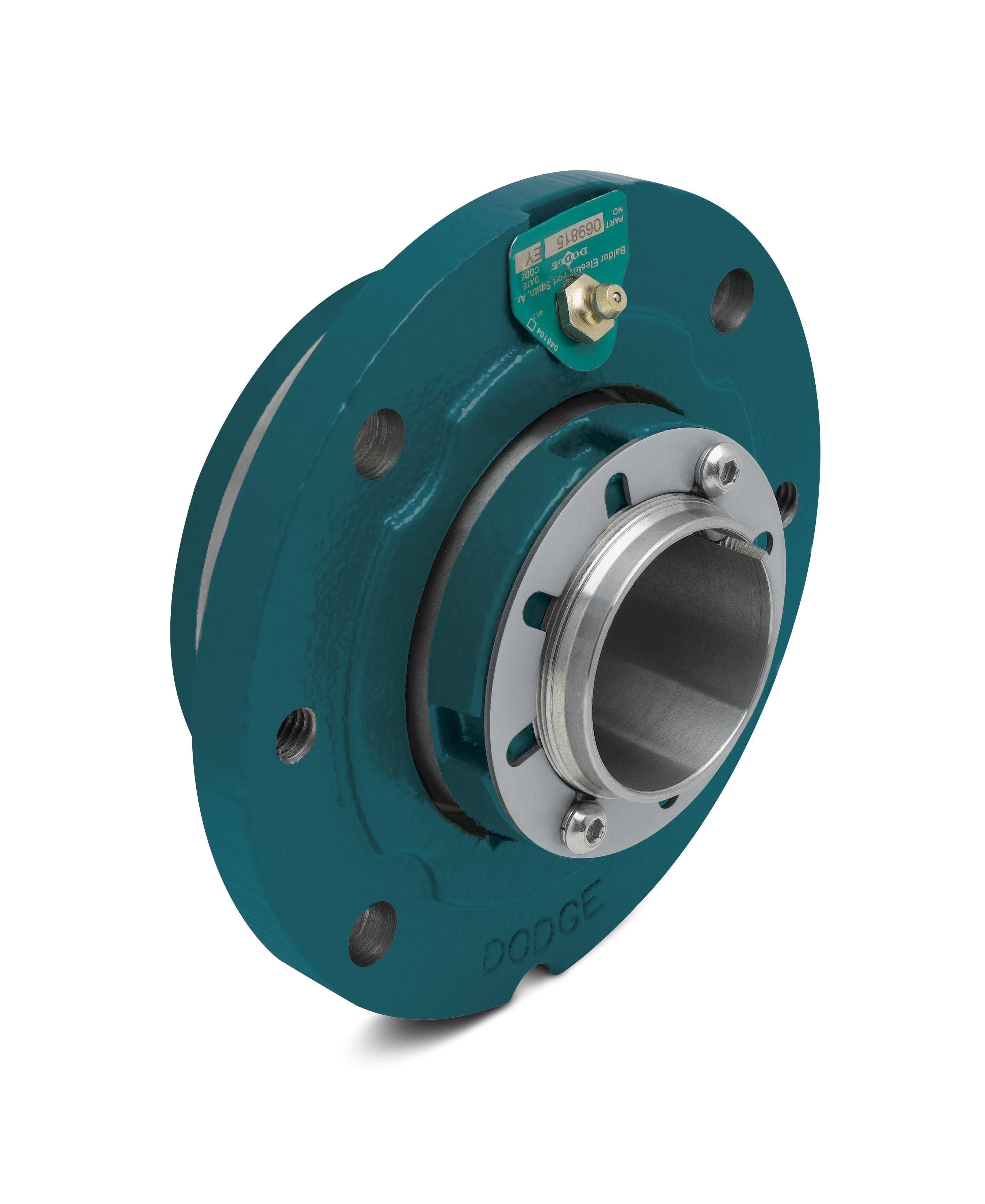

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
069922 - Dodge - FC-IP-303LE
FC-IP-303LE
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 8.6300 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bore Length | 4.1700 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/fc_ip_hli_asmtab.prj&varset={SS=3-3/16},{PN=069922},{DESCRIPTION=FC-IP-303LE},{EF=Expansion Type},{ST=Labyrinth Seal},{A=4.206},{B=10-1/4},{C=3},{D=6-3/32},{DD=8-5/8},{E=1-17/64},{F=3/4},{G=2-17/32},{H=15/16},{K=7.375},{L=5.7},{M=3/4-10},{N=4-1/16},{P=1-41/64},{Q=1-33/64},{X=1/4},{Y=0.025},{Z=4-3/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 65500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2600 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 1.5200 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 7.3750 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 81500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483204080 |
| ECCN | ear99 |
