069889 - Dodge - FC-IP-300L
Regular price
$1,090.32 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

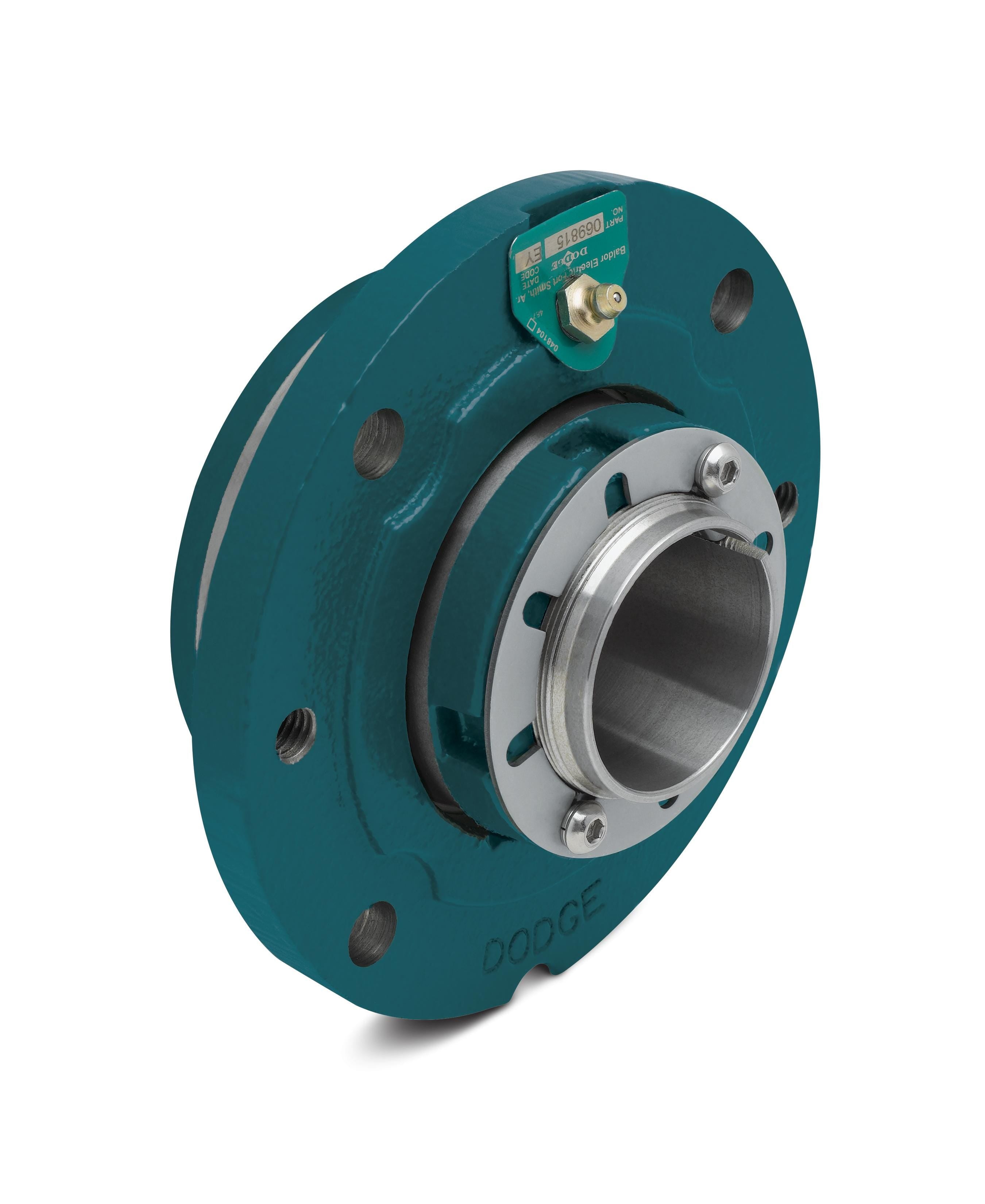

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
069889 - Dodge - FC-IP-300L
FC-IP-300L
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 7.5000 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bore Length | 3.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/fc_ip_hli_asmtab.prj&varset={SS=3},{PN=069889},{DESCRIPTION=FC-IP-300L},{EF=Non-Expansion Type},{ST=Labyrinth Seal},{A=3-1/2},{B=8-3/4},{C=2-5/8},{D=5-19/64},{DD=7-1/2},{E=1-1/4},{F=5/8},{G=1-15/16},{H=3/4},{K=6.375},{L=4-9/32},{M=5/8-11},{N=3-9/16},{P=1-9/16},{Q=1-5/8},{X=1/4},{Y=0.025},{Z=3-15/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 41500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3400 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 1.6300 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 6.3750 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 53000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483204080 |
| ECCN | ear99 |
