069792 - Dodge - F4S-IP-207LE
Regular price
$597.96 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

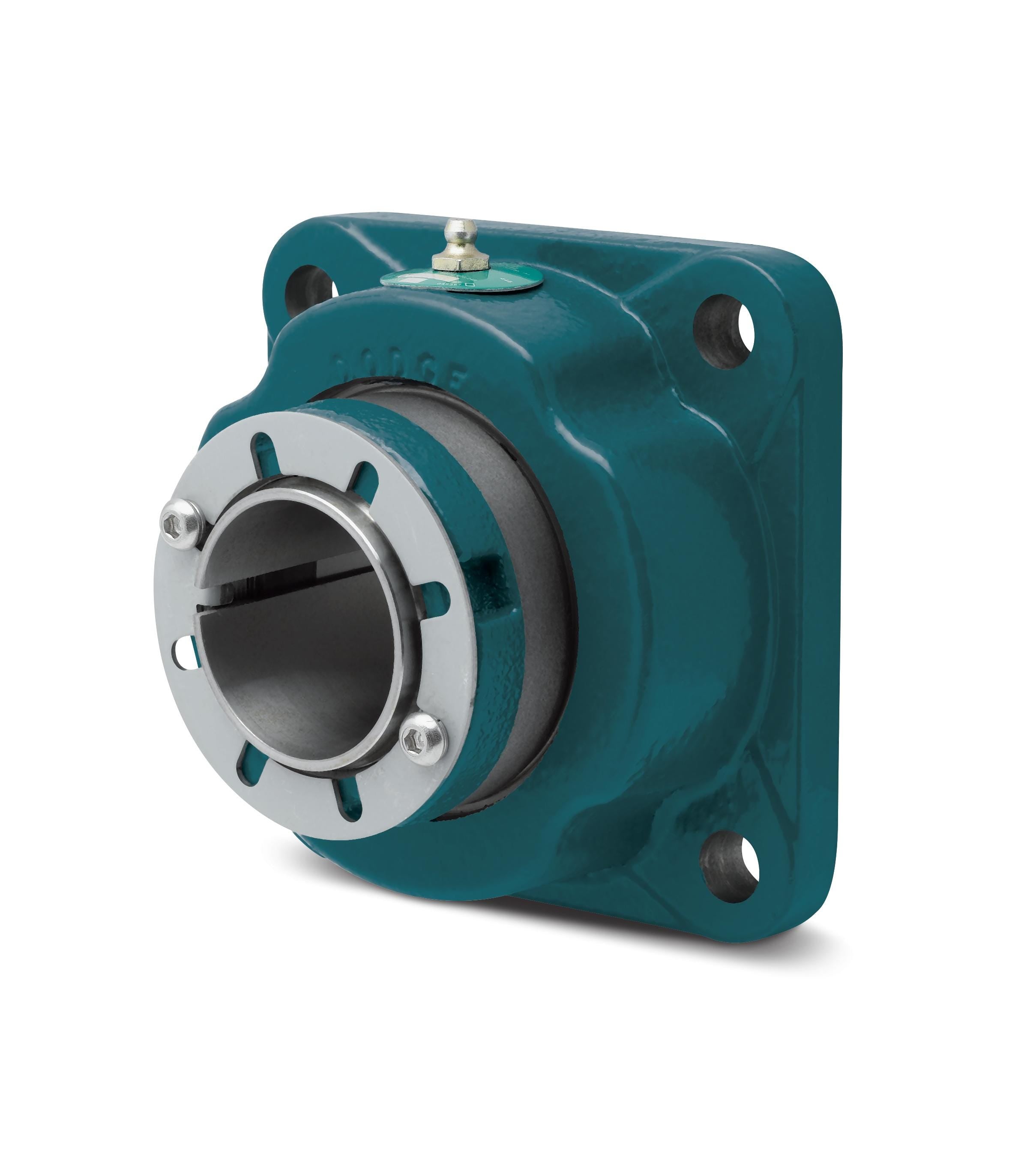

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
069792 - Dodge - F4S-IP-207LE
F4S-IP-207LE
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 6.7500 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.7800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.7800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 0.0000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 4.3200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/f4s_ip_hli_asmtab.prj&varset={SS=2-7/16},{PN=069792},{DESCRIPTION=F4S-IP-207LE},{EF=Expansion Type},{ST=Labyrinth Seal},{A=3-27/64},{B=6-1/8},{C=3-47/64},{D=4-25/32},{F=5/8},{G=1-23/64},{H=41/64},{J=5-5/8},{K=6-3/4},{L=3-7/8},{N=3-13/32},{P=5/16},{X=1/4},{Y=0.025},{Z=2-15/16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 39000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 120.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 3800 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 47500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483204080 |
| ECCN | ear99 |
