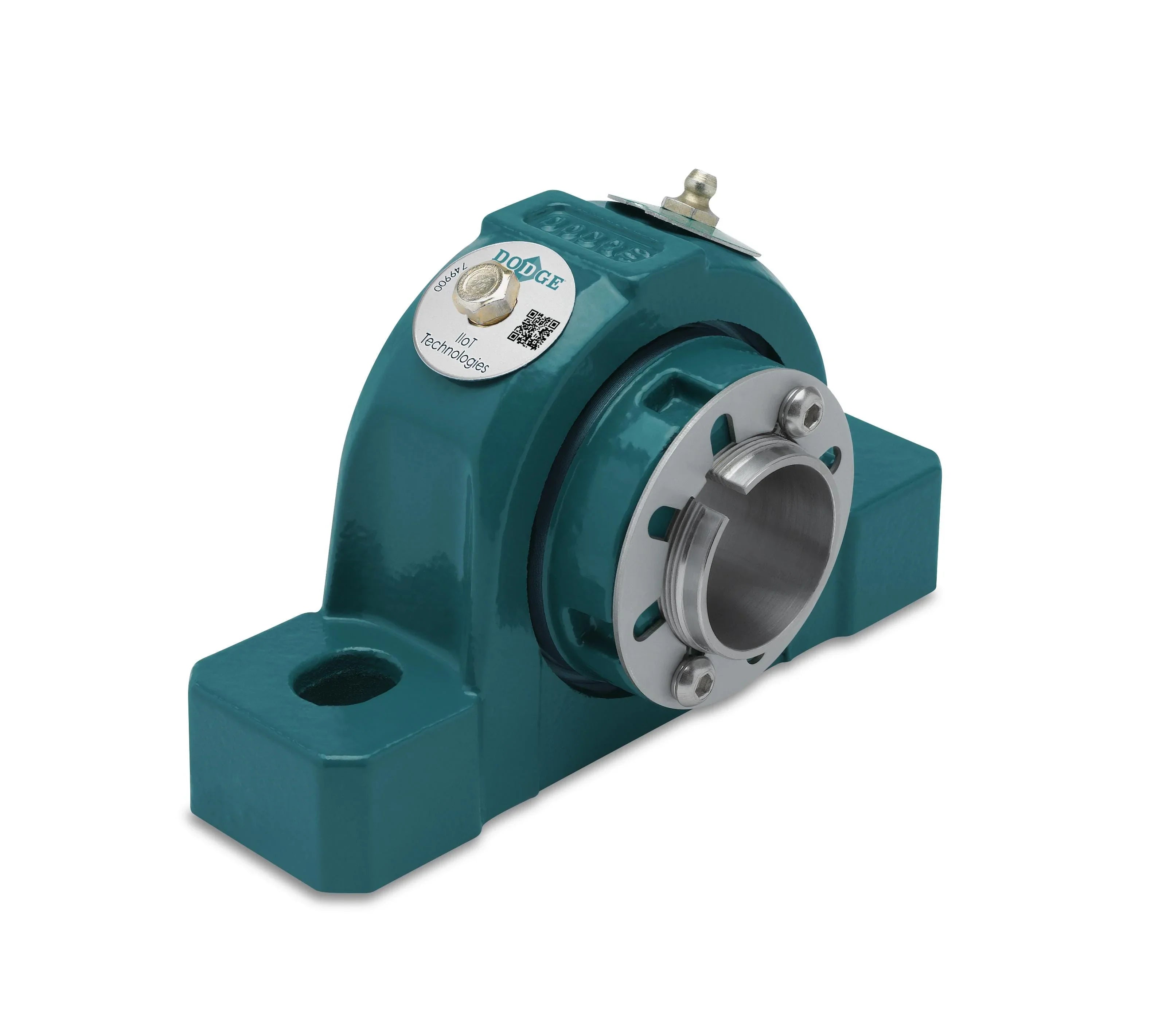

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
069468 - Dodge - P2B-IP-203L
P2B-IP-203L
Technical Specifications
| Base to Center Height | 2.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.9400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.5600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.0300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/p2b_ip_hli_asmtab.prj&varset={SS=2-3/16},{PN=069468},{DESCRIPTION=P2B-IP-203L},{EF=Non-Expansion Type},{ST=Labyrinth Seal},{A=3-1/32},{B=8-7/8},{C=2-5/8},{DMIN=6-9/16},{DMAX=6-15/16},{F=5/8},{G=61/64},{H=1-1/2},{J=5},{L=3-1/2},{M=2-1/2},{R=29/32},{S=2-1/8},{X=1/4},{Y=0.025},{Z=2-19/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 27000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 29000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,TS-300 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
