069462 - Dodge - P2B-IP-110L
Regular price
$402.60 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

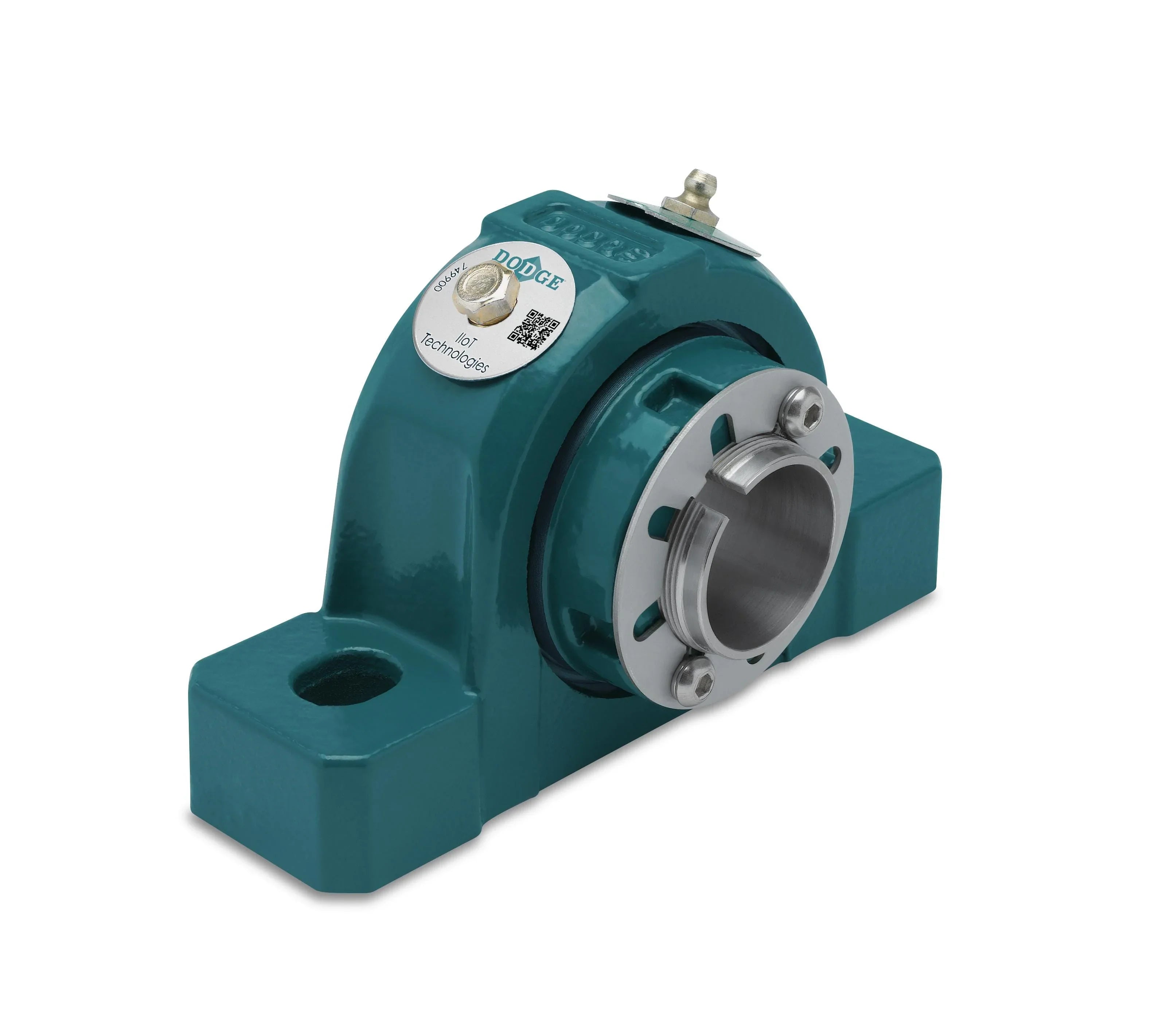

069462 - Dodge - P2B-IP-110L
P2B-IP-110L
Technical Specifications
| Base to Center Height | 2.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.7000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.3100 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.8100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/p2b_ip_hli_asmtab.prj&varset={SS=1-5/8},{PN=069462},{DESCRIPTION=P2B-IP-110L},{EF=Non-Expansion Type},{ST=Labyrinth Seal},{A=2-13/16},{B=7-3/8},{C=2-1/16},{DMIN=5-5/16},{DMAX=5-45/64},{F=1/2},{G=13/16},{H=1-1/4},{J=4-17/64},{L=3},{M=2-1/8},{R=13/16},{S=2},{X=1/4},{Y=0.020},{Z=2-5/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 20800 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5600 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.6250 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 22000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,TS-300 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
