069380 - Dodge - WSTU-IP-203RE
Regular price
$625.68 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

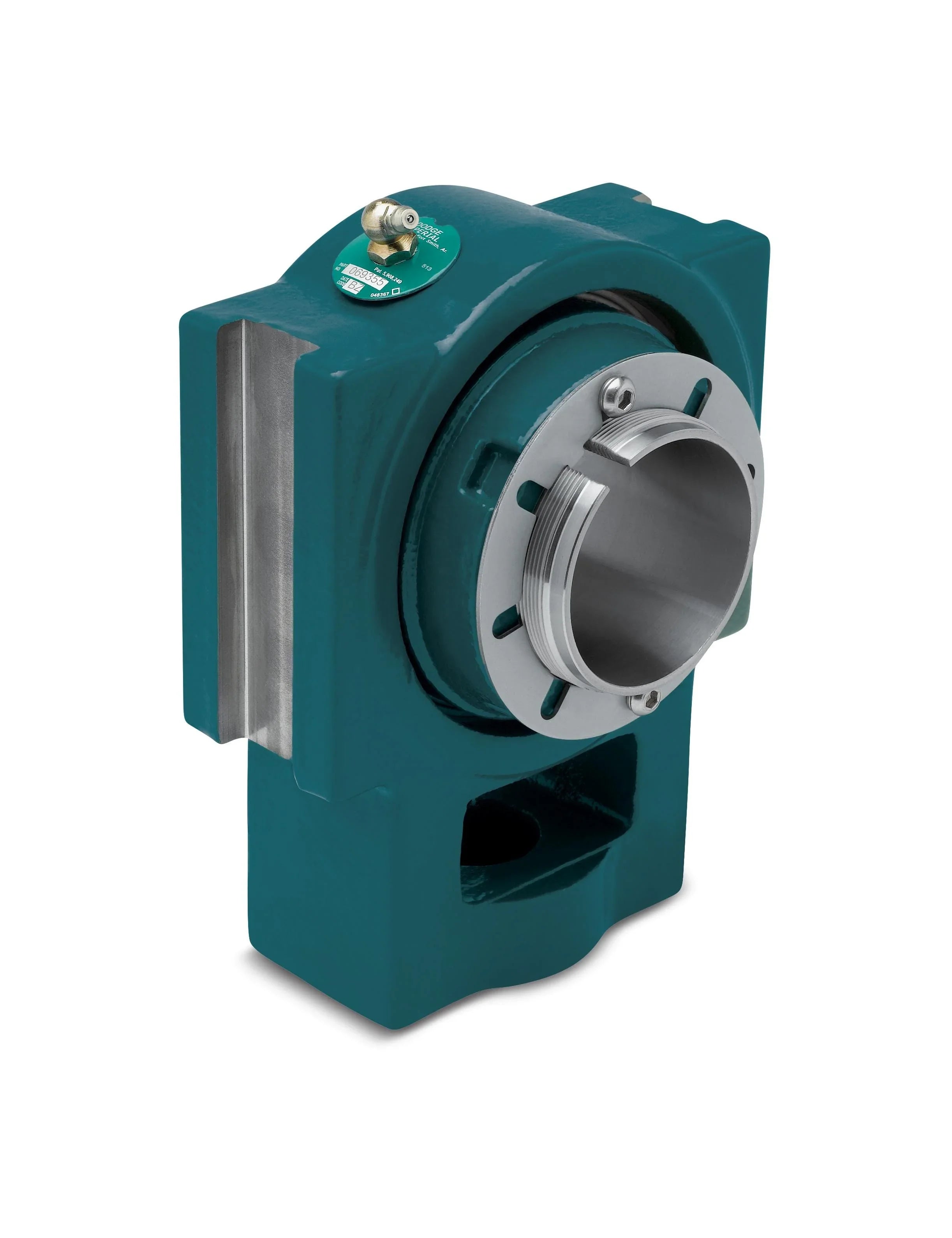

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
069380 - Dodge - WSTU-IP-203RE
WSTU-IP-203RE
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bore Length | 3.0300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/wstu_ip_i_asmtab.prj&varset={SS=2-3/16},{PN=069380},{DESCRIPTION=WSTU-IP-203RE},{EF=Expansion},{ST=Contact Seal},{A=3-1/32},{B=7-1/16},{C=13/16},{D=3-5/8},{E=4-5/8},{F=1-3/8},{G=15/16},{H=1-1/4},{J=3-7/8},{K=2-1/4},{L=3-1/2},{M=4-1/2},{N=5-1/4},{R=3-3/16},{S=2-7/64},{T=2-7/32},{X=1/4},{Y=0.025},{Z=2-19/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 27000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 29000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483204080 |
| ECCN | ear99 |
