069371 - Dodge - WSTU-IP-106RE
Regular price
$376.20 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

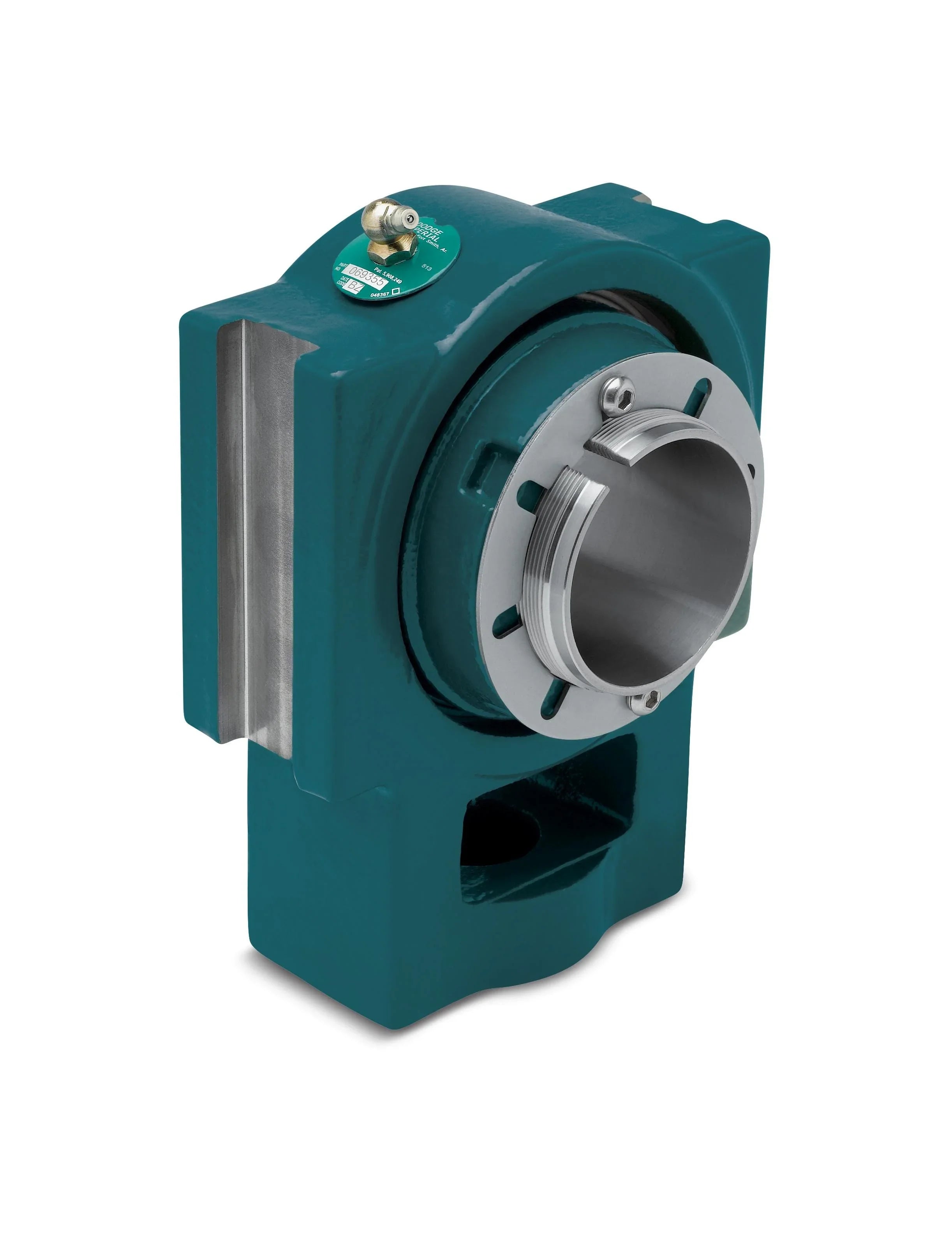

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
069371 - Dodge - WSTU-IP-106RE
WSTU-IP-106RE
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bore Length | 2.6300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/wstu_ip_i_asmtab.prj&varset={SS=1-3/8},{PN=069371},{DESCRIPTION=WSTU-IP-106RE},{EF=Expansion},{ST=Contact Seal},{A=2-5/8},{B=5-1/16},{C=17/32},{D=2-3/4},{E=3-3/16},{F=7/8},{G=11/16},{H=5/8},{J=2-7/16},{K=1-7/16},{L=2-23/32},{M=3-1/2},{N=4-1/8},{R=2-53/64},{S=1-47/64},{T=2-1/16},{X=3/16},{Y=0.020},{Z=1-51/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 20800 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3975 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.3750 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 21000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-308 |
| HTS Code | 8483204080 |
| ECCN | ear99 |
