069365 - Dodge - WSTU-IP-311R
Regular price
$2,457.84 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

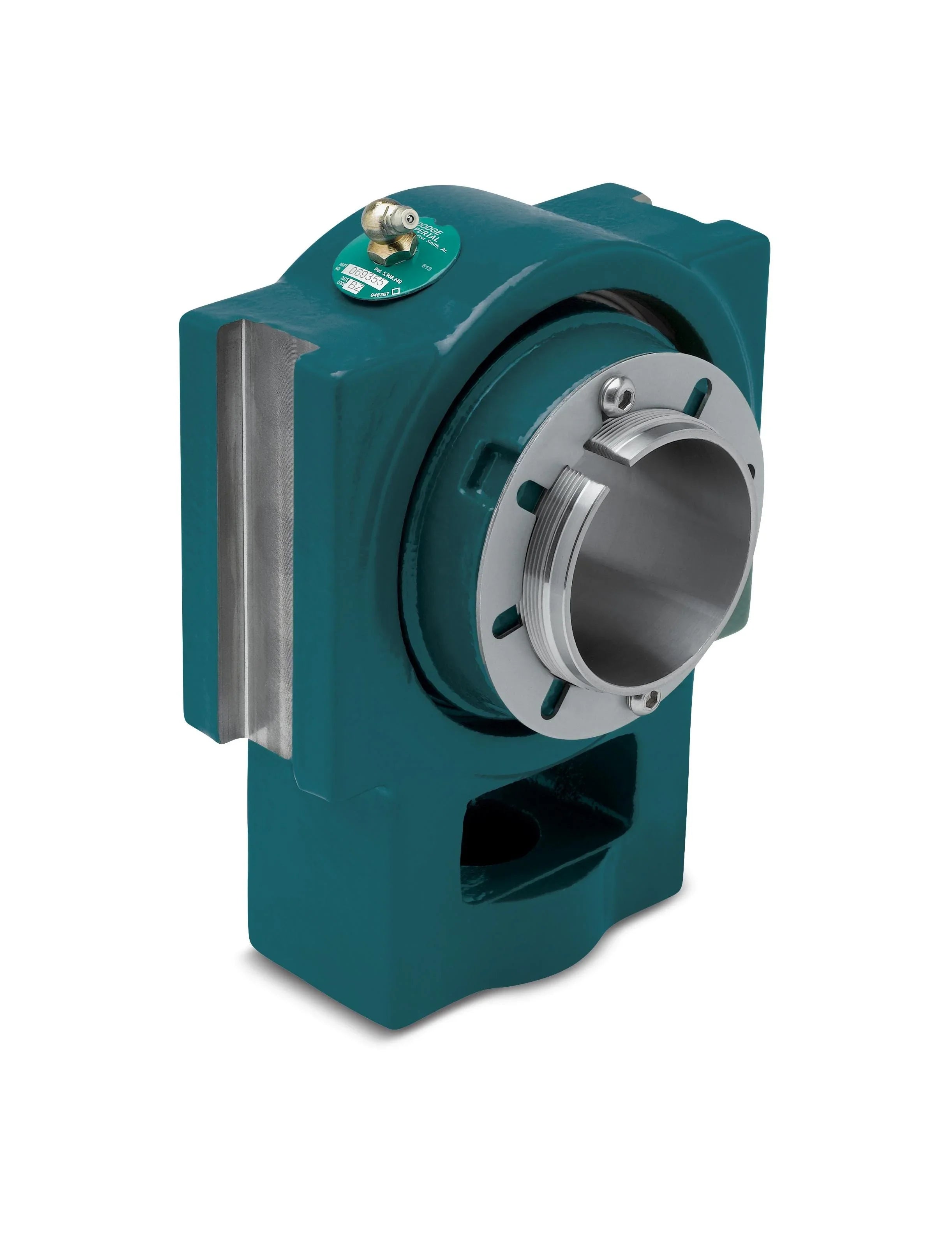

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
069365 - Dodge - WSTU-IP-311R
WSTU-IP-311R
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bore Length | 4.7000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/wstu_ip_i_asmtab.prj&varset={SS=3-11/16},{PN=069365},{DESCRIPTION=WSTU-IP-311R},{EF=Non-Expansion},{ST=Contact Seal},{A=4.82},{B=12-9/16},{C=2-1/16},{D=7},{E=8-3/8},{F=2-1/8},{G=2-1/16},{H=2-1/8},{J=6},{K=3-3/8},{L=6.15},{M=8-5/8},{N=9-7/16},{R=4-51/64},{S=3.173},{T=3-7/16},{X=5/16},{Y=0.025},{Z=4-1/2}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 83000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1530 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.6875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 104000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-810 |
| HTS Code | 8483204080 |
| ECCN | ear99 |
