065312 - Dodge - P2B-C-108 TYPE C
Regular price
$1,966.12 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

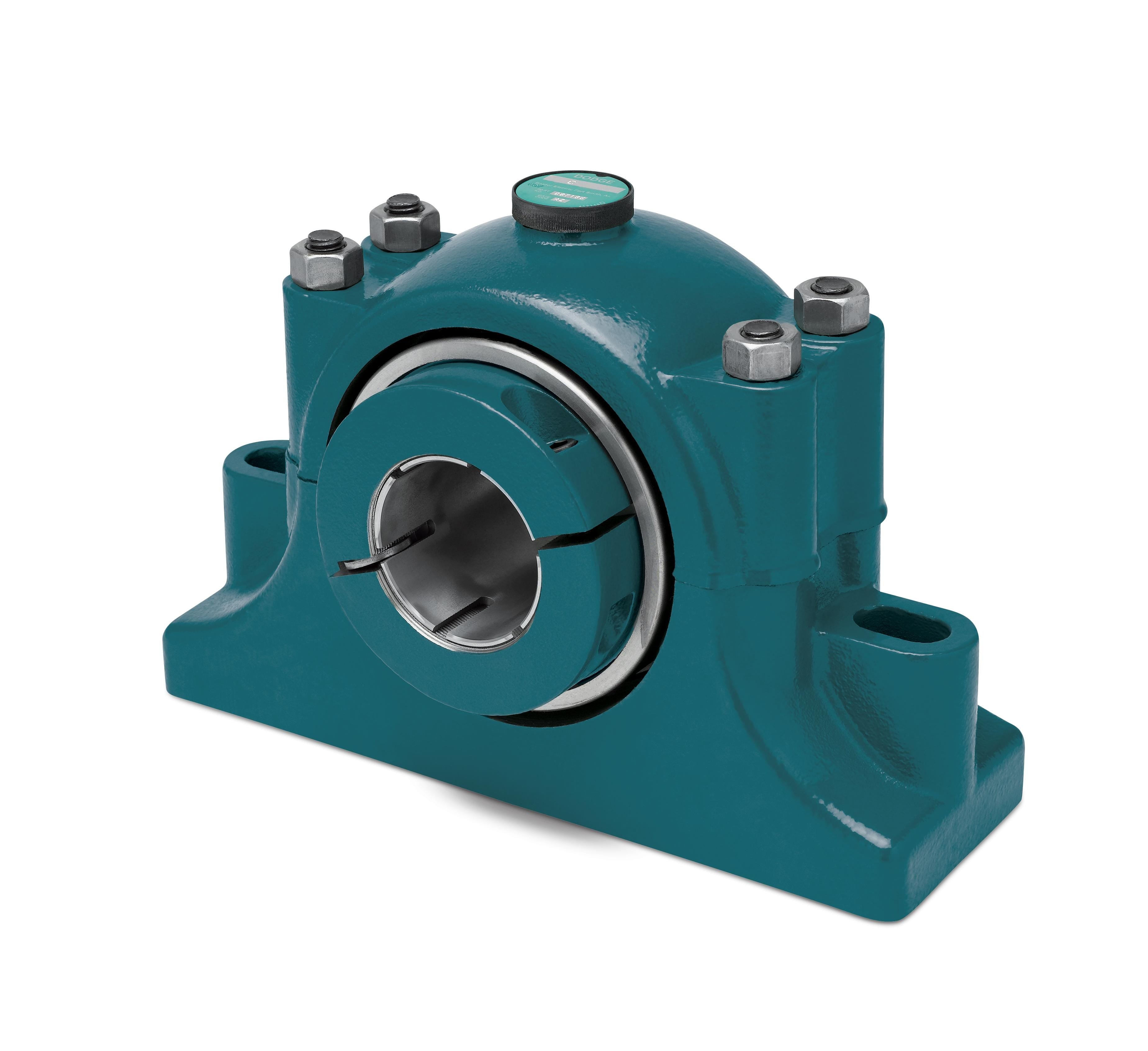

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
065312 - Dodge - P2B-C-108 TYPE C
P2B-C-108
Technical Specifications
| Base to Center Height | 3.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 8.1300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 7.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 4.8800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_c/p2b_c_asmtab.prj&varset={SS=1-1/2},{TYPE=1},{A=4-7/8},{B=9-1/2},{C=3-3/8},{DMIN=7-9/16},{DMAX=7-15/16},{F=1/2},{G=13/16},{H=2-3/8},{J=6-13/16},{L=3-1/2},{M=3-1/8},{P=6-1/2},{EXP=5/8}&hidePortlets=searchHeader |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 1.5000 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-200 |
