048051 - Dodge - F4B-UN2-107E UNI-II
Regular price
$839.57 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

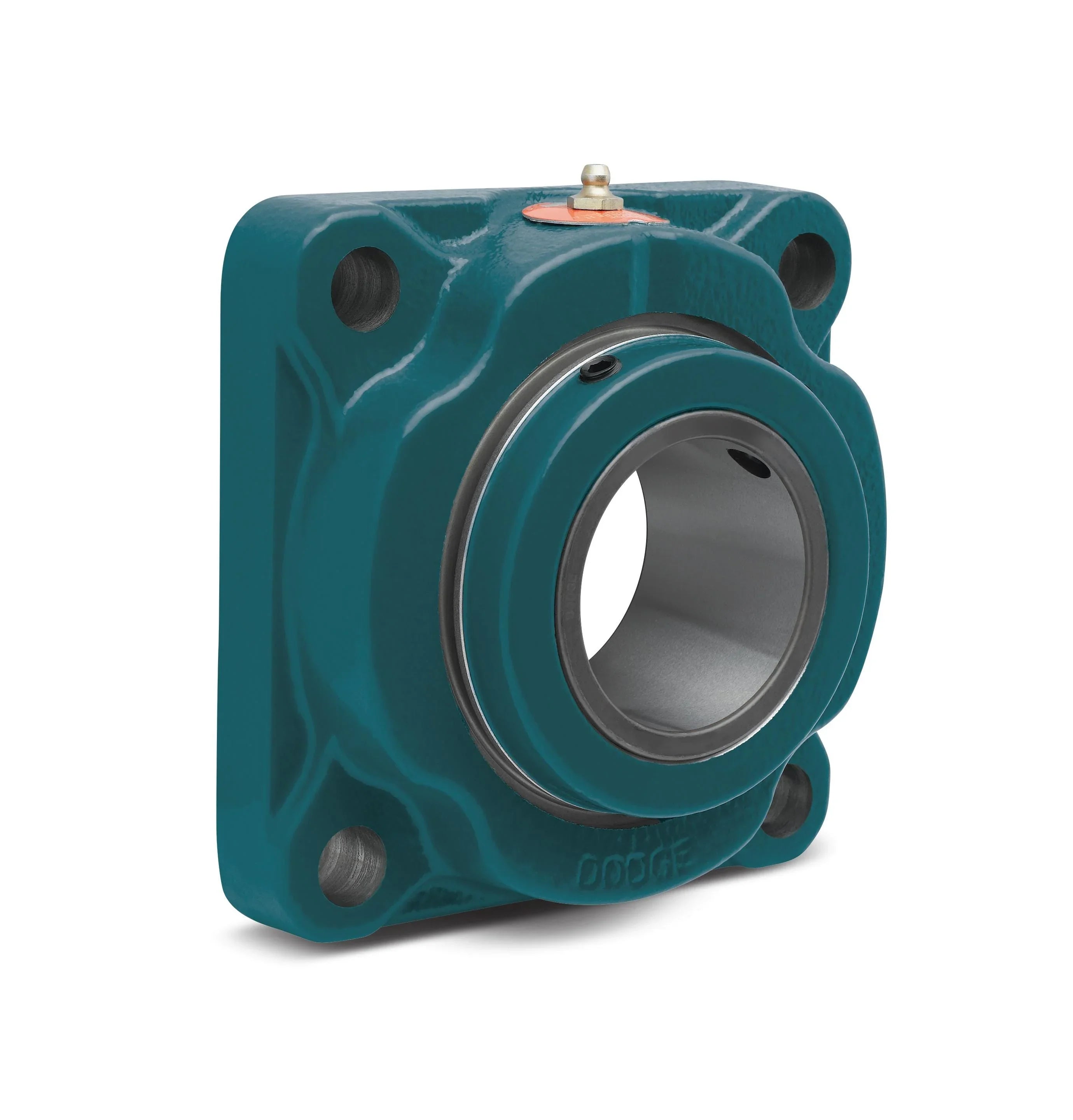

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
048051 - Dodge - F4B-UN2-107E UNI-II
F4B-UN2-107E UNI-II
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 5.0000 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.5300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.5300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 0.0000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 1.6900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_unisphere_ii/f4b_uni_2_asmtab.prj&varset={SS=1-7/16},{TYPE=2},{WEIGHT=5.2},{A=1-11/16},{B=4-3/4},{C=1-29/32},{D=3-17/32},{F=1/2},{H=3/4},{J=9/16},{K=5},{L=2-3/4},{M=5/32},{N=2-7/16},{MRPM=3000},{CS=22400},{CD=20800},{RN=15},{RM=.04488},{PD=2.449},{RC=0.0012-0.0018},{CSS=5/16-18x5/8},{CST=165},{MH=C.I. ASTM A48 CLASS 30},{MIR=4118 Case Carb.},{MOR=E52100 Steel},{MR=Polyamide},{MRO=E52100 Steel},{SM=2�}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 20800 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Material | Ductile Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 80.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 21000 |
| Static Load Capacity (Unit) | POUND_FORCE |
