048047 - Dodge - F4B-UN2-307 UNI-II
Regular price
$3,266.93 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

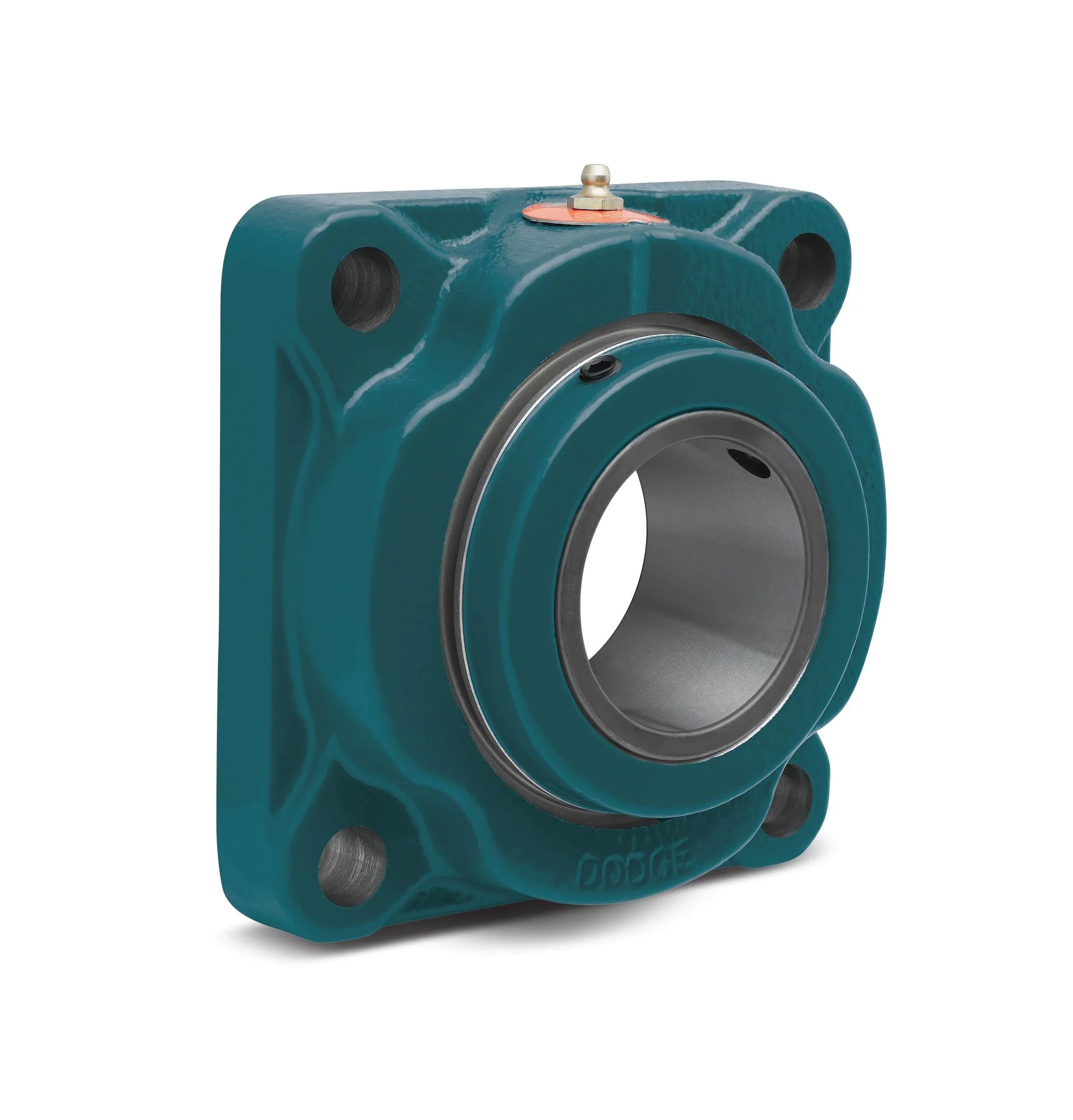

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
048047 - Dodge - F4B-UN2-307 UNI-II
F4B-UN2-307 UNI-II
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 9.5000 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.7200 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.7200 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 0.0000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 2.8600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_unisphere_ii/f4b_uni_2_asmtab.prj&varset={SS=3-7/16},{TYPE=1},{WEIGHT=24.7},{A=2-55/64},{B=8-11/32},{C=3-5/64},{D=6-23/32},{F=3/4},{H=1-3/16},{J=55/64},{K=9-1/2},{L=5-1/2},{M=3/16},{N=4-5/16},{MRPM=1400},{CS=81500},{CD=64000},{RN=18},{RM=0.7795},{PD=5.079},{RC=0.0024-0.0039},{CSS=1/2-13x1},{CST=620},{MH=C.I. ASTM A48 CLASS 30},{MIR=4118 Case Carb.},{MOR=E52100 Steel},{MR=Polyamide},{MRO=E52100 Steel},{SM=2�}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 65500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Material | Ductile Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 160.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 1400 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 81500 |
| Static Load Capacity (Unit) | POUND_FORCE |
