048015 - Dodge - P2B-UN2-315 UNI-II
Regular price
$4,594.19 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

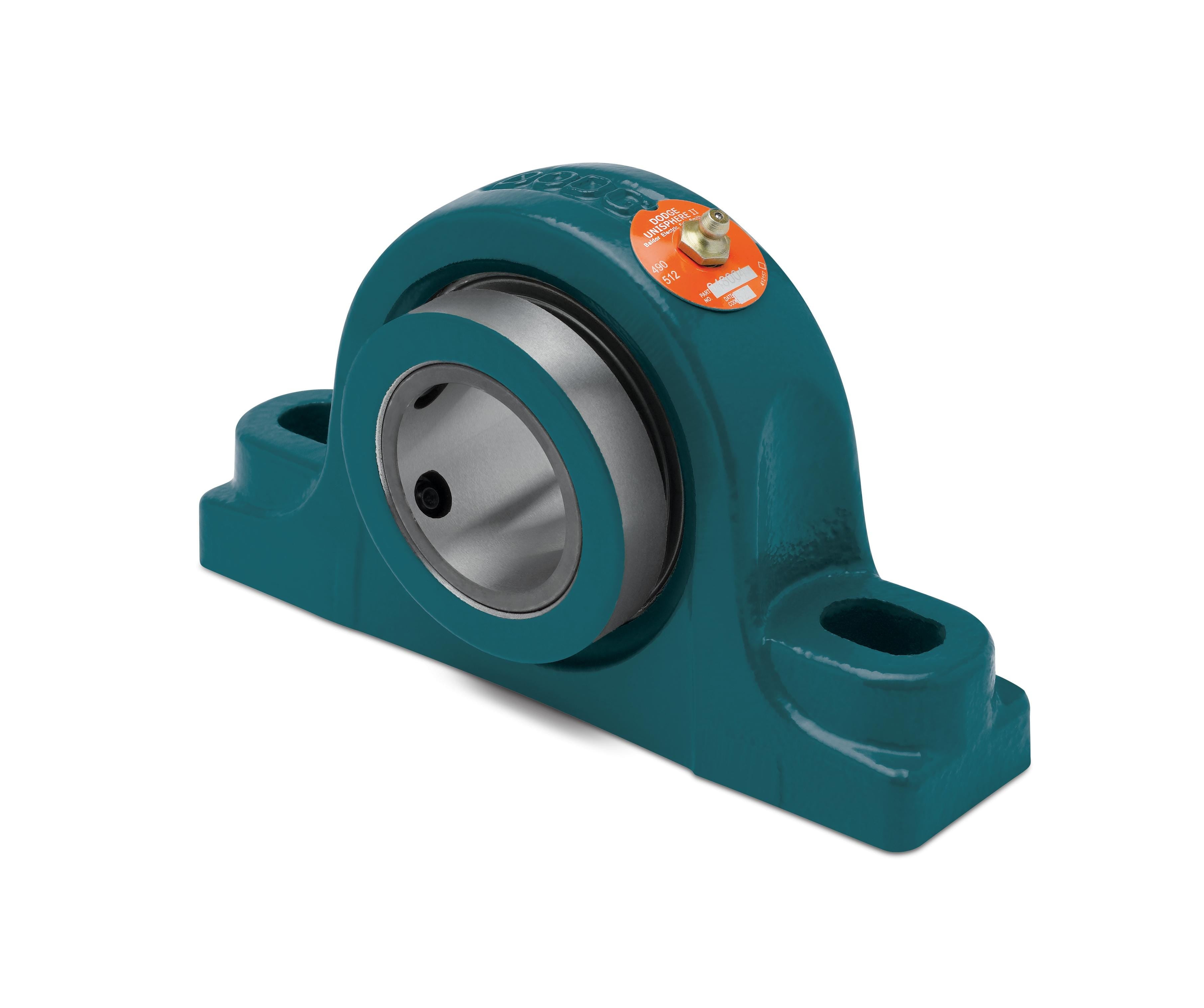

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
048015 - Dodge - P2B-UN2-315 UNI-II
P2B-UN2-315 UNI-II
Technical Specifications
| Base to Center Height | 4.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 11.8800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 10.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.3300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_unisphere_ii/p2b_uni_asmtab.prj&varset={SS=3-15/16},{TYPE=1},{WEIGHT=37.4},{A=3-21/64},{B=14-1/4},{C=3-5/16},{DMIN=10},{DMAX=11-7/8},{E=7/32},{F=1},{G=2},{H=2-1/2},{J=8-7/16},{L=6-15/32},{M=4-1/8},{R=1-1/8},{S=2-3/16},{MRPM=1250},{CS=104000},{CD=80000},{RN=18},{RM=0.8780},{PD=5.705},{RC=0.0024-0.0039},{CSS=5/8-11x1-1/4},{CST=1325},{MH=Ductile Iron Grade 65-45-12 ASTM A536},{MIR=4118 Case Carb.},{MOR=E52100 Steel},{MR=Polyamide},{MRO=E52100 Steel},{SM=2�}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 83000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Material | Ductile Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1250 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 104000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-350 |
