048004 - Dodge - P2B-UN2-115 UNI-II
Regular price
$1,109.97 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

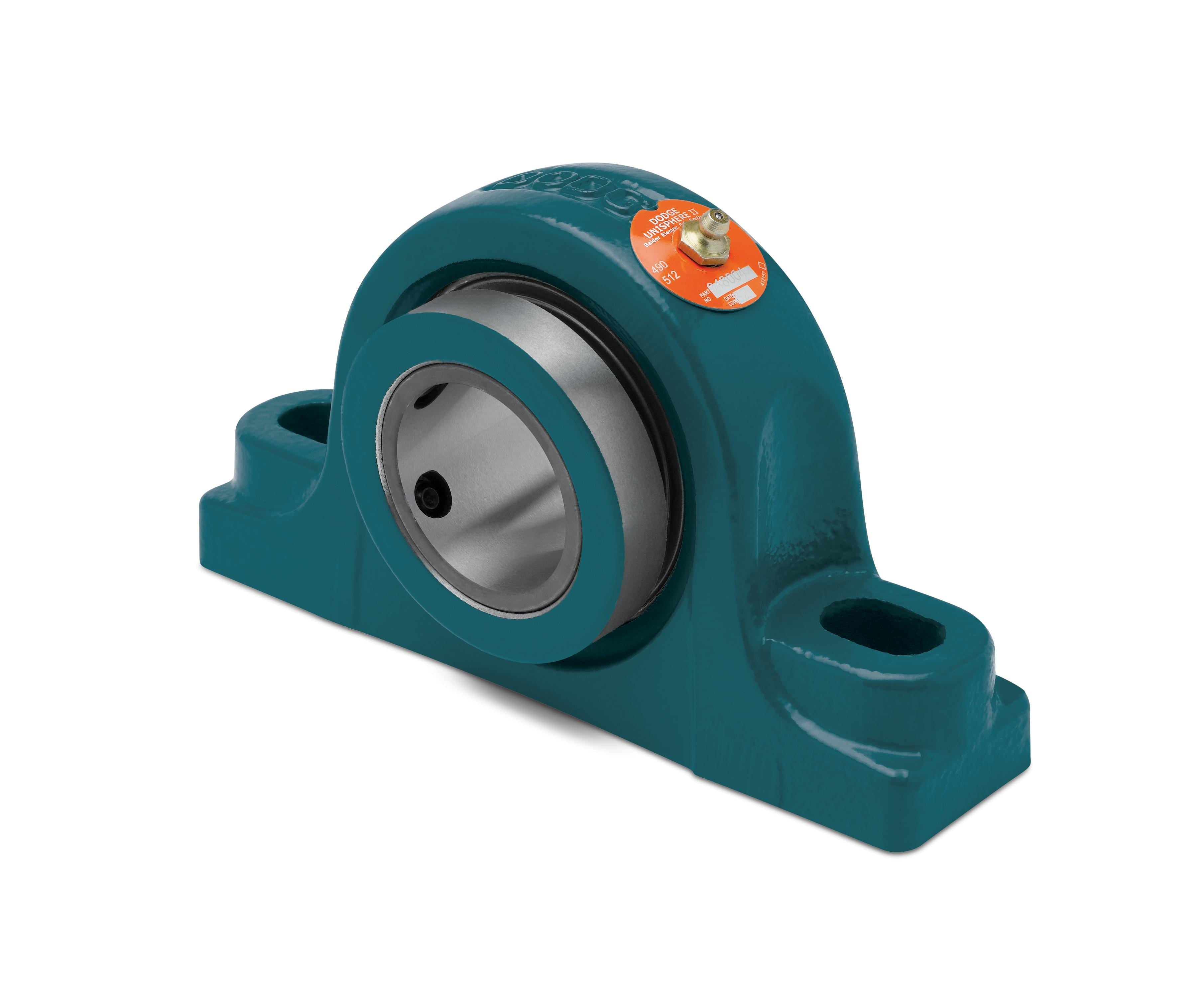

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
048004 - Dodge - P2B-UN2-115 UNI-II
P2B-UN2-115 UNI-II
Technical Specifications
| Base to Center Height | 2.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.6900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.9400 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_unisphere_ii/p2b_uni_asmtab.prj&varset={SS=1-15/16},{TYPE=1},{WEIGHT=8.0},{A=1-29/32},{B=8-3/8},{C=2-1/16},{DMIN=5-15/16},{DMAX=6-11/16},{E=5/32},{F=5/8},{G=1-1/16},{H=1-3/8},{J=4-9/16},{L=3-1/4},{M=2-1/4},{R=15/32},{S=1-7/16},{MRPM=2625},{CS=25500},{CD=22000},{RN=18},{RM=0.4331},{PD=2.858},{RC=0.0014-0.0022},{CSS=3/8-16x3/4},{CST=290},{MH=Ductile Iron Grade 65-45-12 ASTM A536},{MIR=4118 Case Carb.},{MOR=E52100 Steel},{MR=Polyamide},{MRO=E52100 Steel},{SM=2�}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 22000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Material | Ductile Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2625 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 24000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,LD-30 |
