048001 - Dodge - P2B-UN2-108 UNI-II
Regular price
$813.65 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

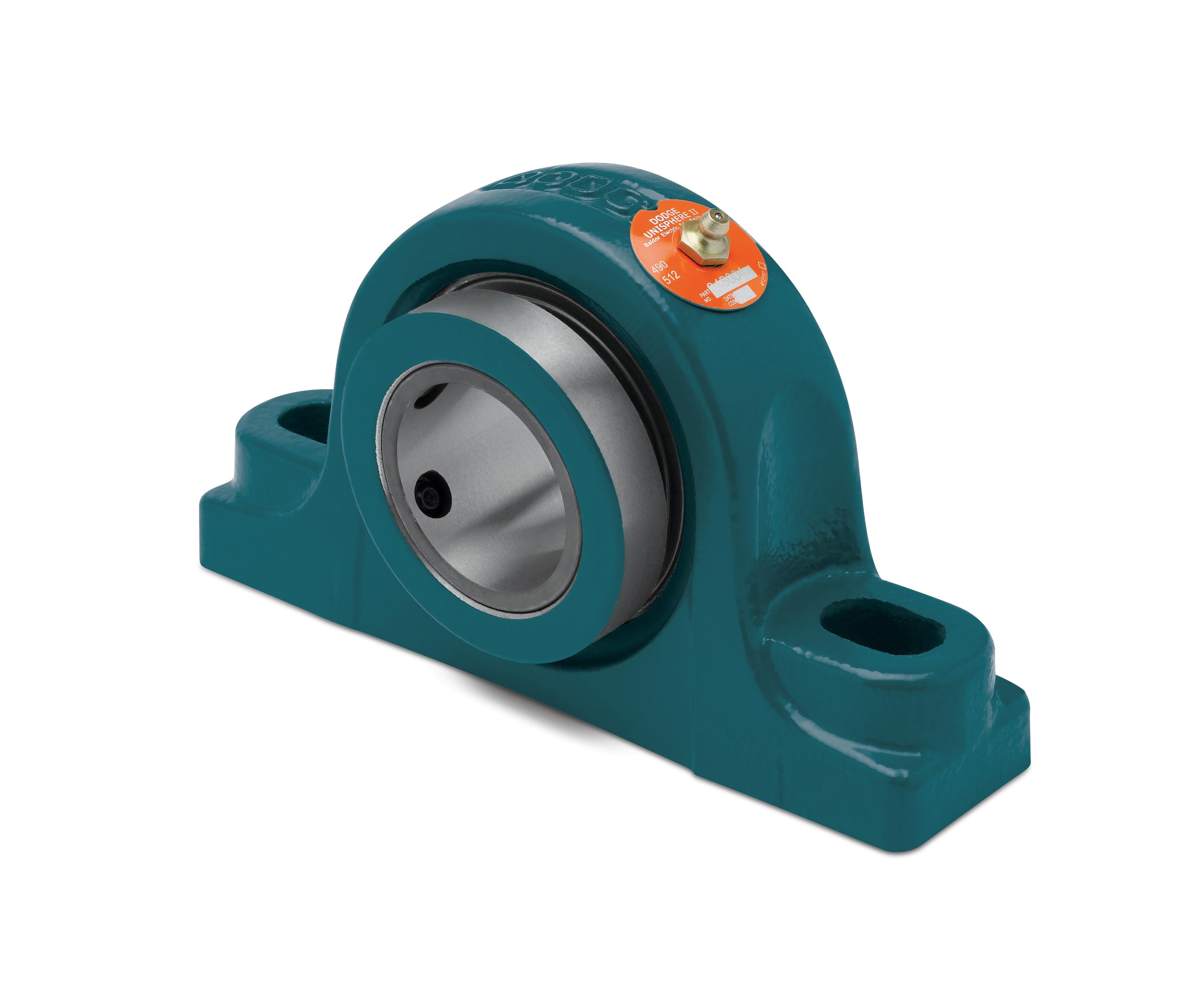

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
048001 - Dodge - P2B-UN2-108 UNI-II
P2B-UN2-108 UNI-II
Technical Specifications
| Base to Center Height | 1.8800 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.6900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.6900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_unisphere_ii/p2b_uni_asmtab.prj&varset={SS=1-1/2},{TYPE=1},{WEIGHT=5.4},{A=1-11/16},{B=6-7/8},{C=1-61/64},{DMIN=4-11/16},{DMAX=5-1/2},{E=5/32},{F=1/2},{G=31/32},{H=1-3/16},{J=3-7/8},{L=2-3/4},{M=1-7/8},{R=1/2},{S=1-3/16},{MRPM=3000},{CS=22400},{CD=20800},{RN=15},{RM=0.4488},{PD=2.449},{RC=0.0012-0.0018},{CSS=5/16-18x5/8},{CST=165},{MH=Ductile Iron Grade 65-45-12 ASTM A536},{MIR=4118 Case Carb.},{MOR=E52100 Steel},{MR=Polyamide},{MRO=E52100 Steel},{SM=2�}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 20800 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Material | Ductile Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 21000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TS-250 |
