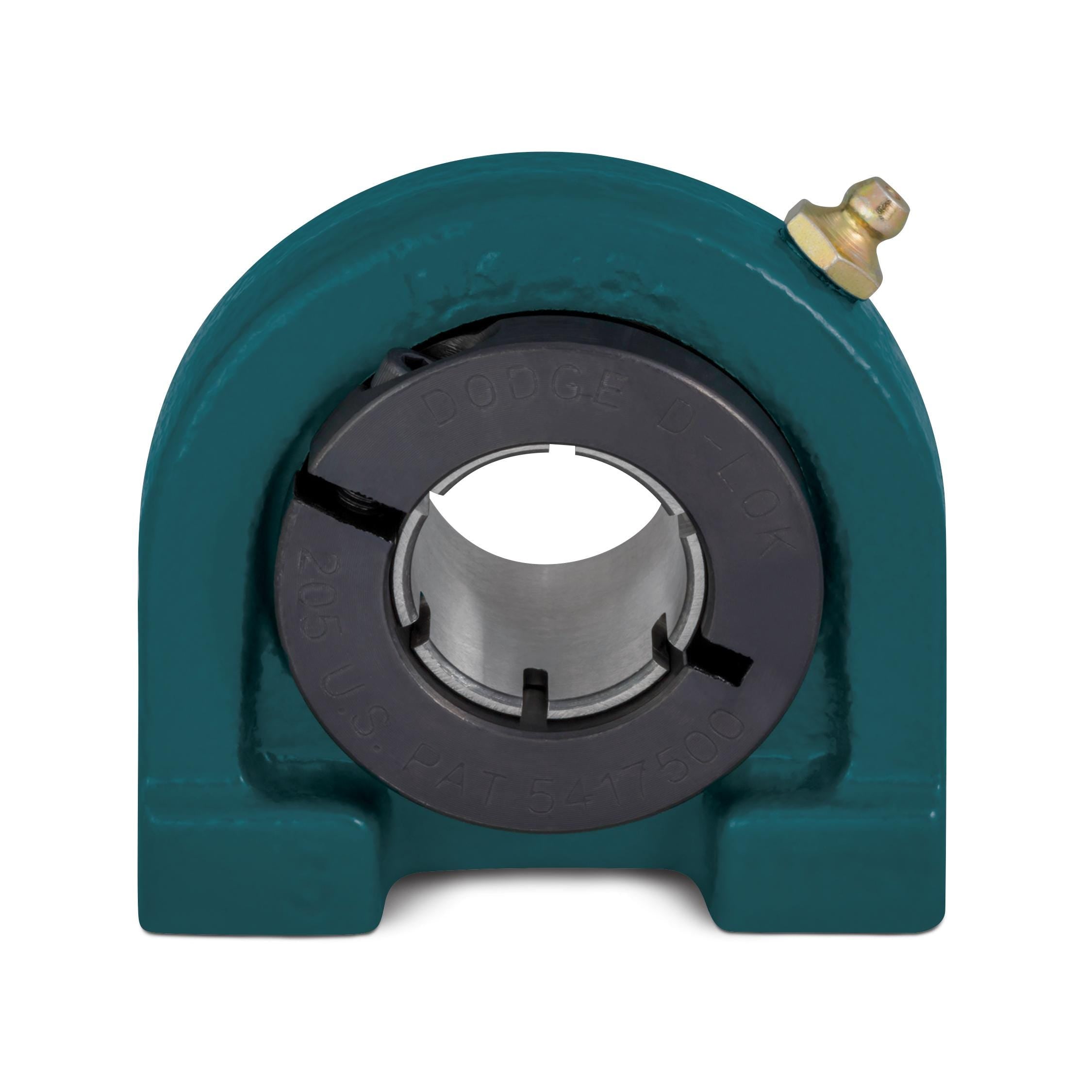

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
140285 - Dodge - TB-DLED-103 DRY
TB-DLED-103 DRY
Technical Specifications
| Ball Bearing Series | 206 Series |
| Base to Center Height | 1.6900 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.4375 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5600 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | None |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Tapped-Base Pillow Block |
| Insert Material | Steel |
| Lubrication | None |
| Maximum Speed | 5500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 1.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
