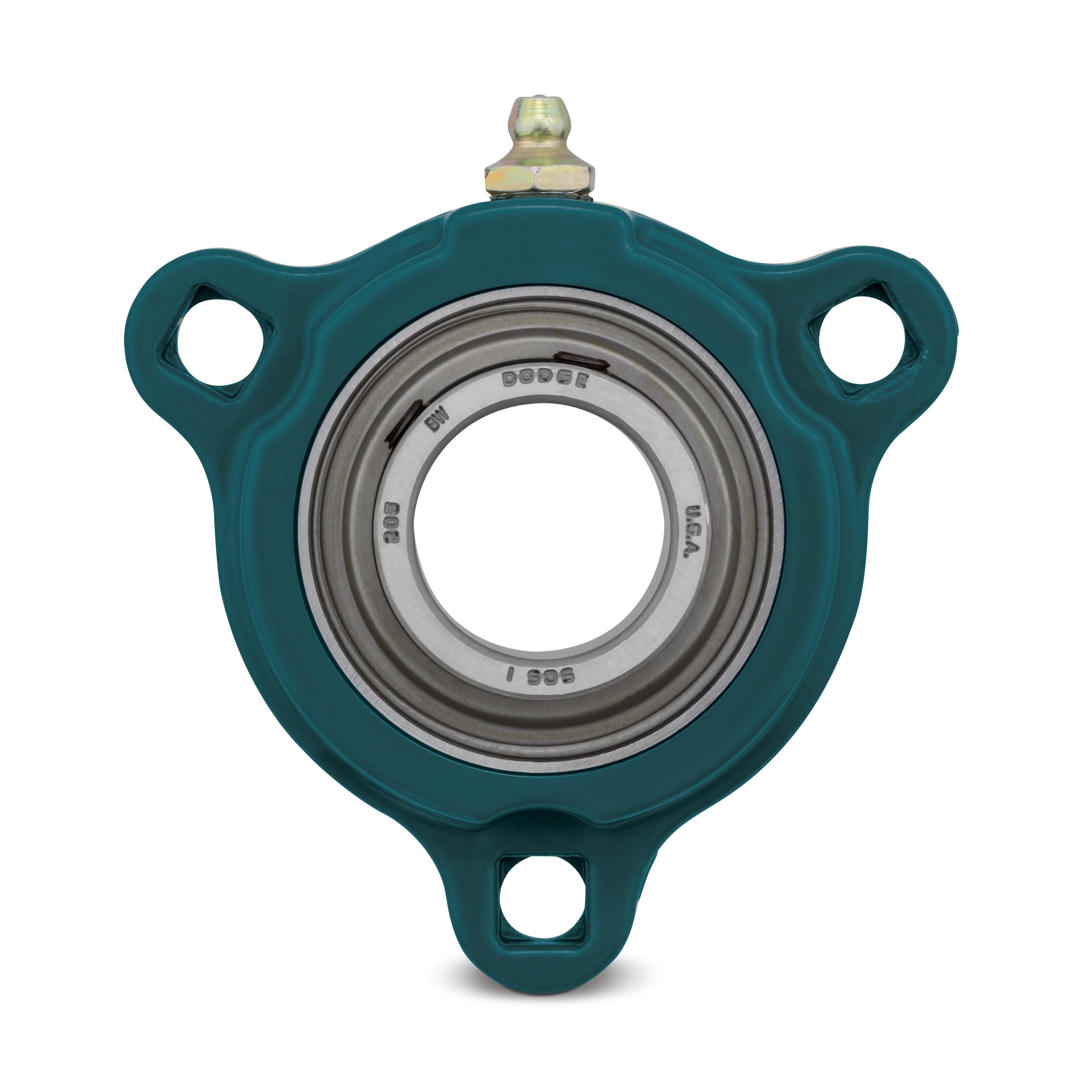

140106 - Dodge - LF-SCED-100
LF-SCED-100
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Type | Ball |
| Bolt Circle | 3.0000 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.3438 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.5700 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.5700 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.0600 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Mobilith SHC PM 220 |
| Housing Construction | Solid |
| Housing Material | Alloy |
| Housing Type | Three-Bolt Flange (Light Duty) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
