139641 - Dodge - FC-GTMED-40M
Regular price
$282.72 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

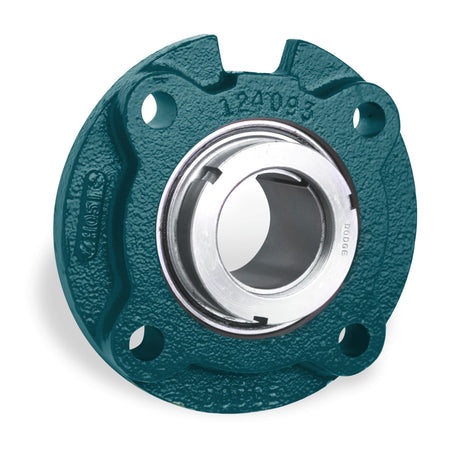

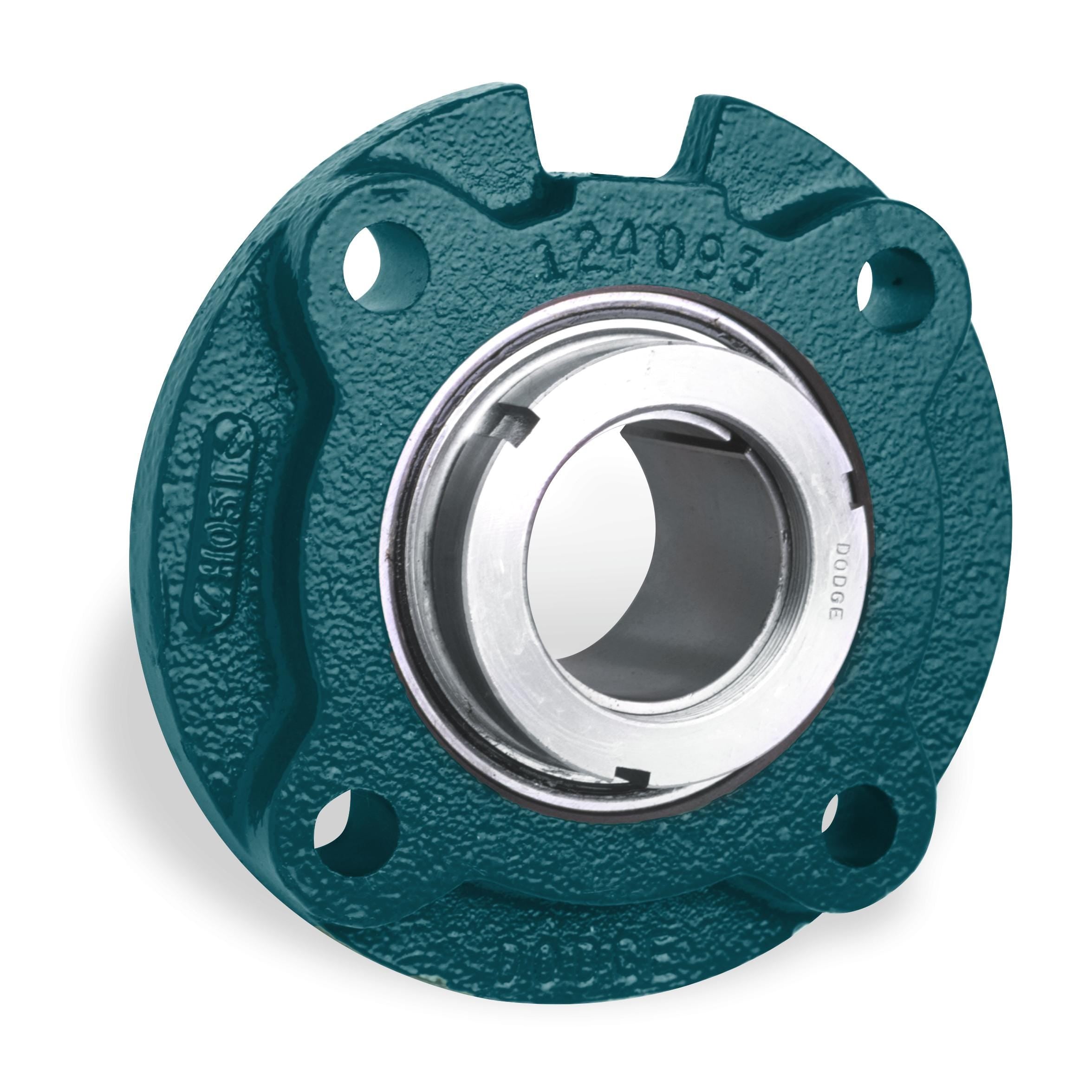

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
139641 - Dodge - FC-GTMED-40M
FC-GTMED-40M
Technical Specifications
| Ball Bearing Series | 209 Series |
| Bearing Type | Ball |
| Bolt Circle | 4.7500 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 1.8500 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Mobilith SHC PM 220 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5300 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.4400 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 4.0000 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Quadruple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 40.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
