136980 - Dodge - WSTU-SCEZ-20M-SHCR
Regular price
$161.43 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

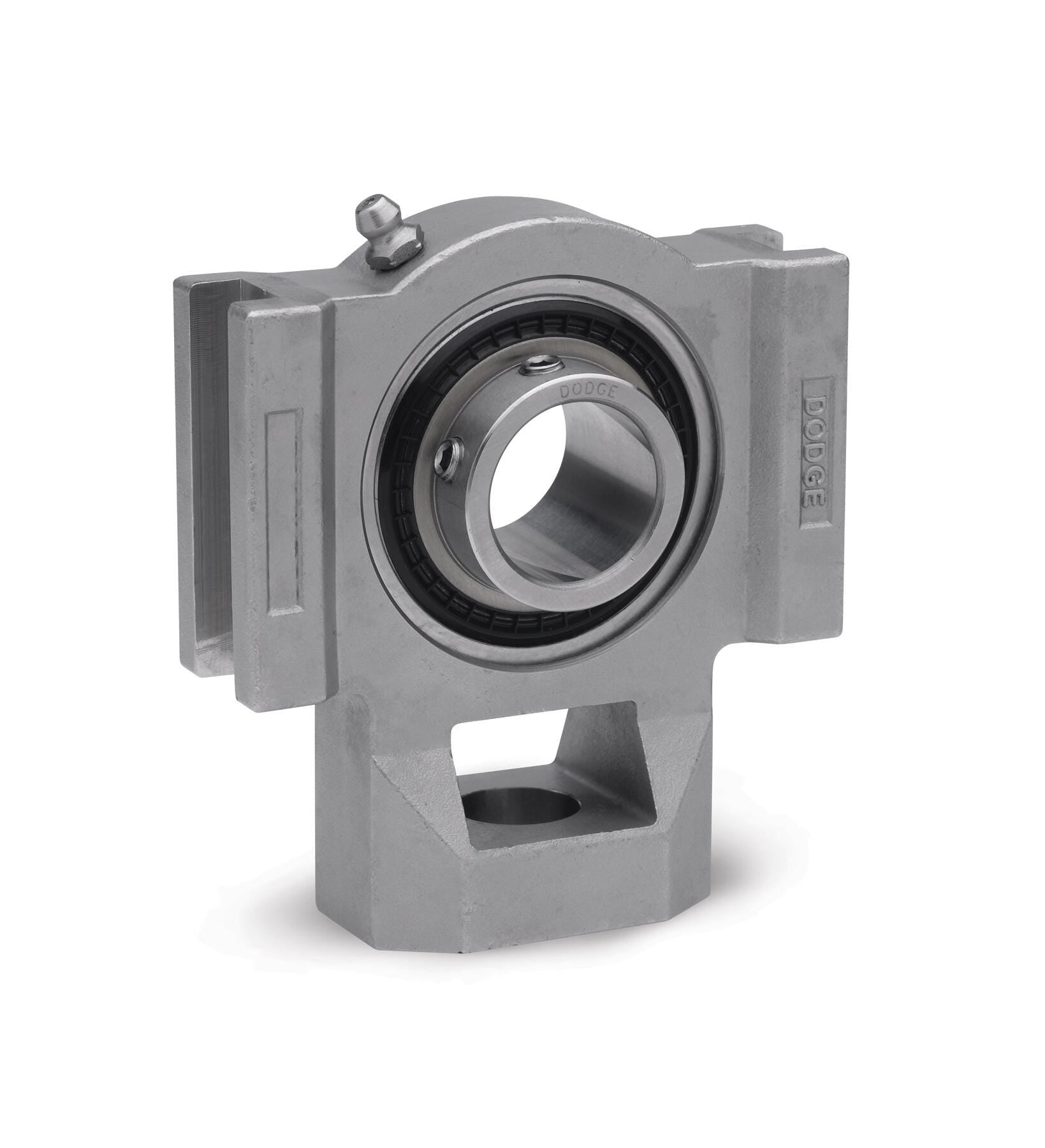

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136980 - Dodge - WSTU-SCEZ-20M-SHCR
WSTU-SCEZ-20M-SHCR
Technical Specifications
| Ball Bearing Series | 204 Series |
| Bearing Type | Ball |
| Bore Length | 1.2300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/wstu_scez_shcr_hm_asmtab.prj&varset={SERIES=204},{SS=20},{PN=136980},{DESCRIPTION=WSTU-SCEZ-20M-SHCR},{W=0.97},{FS=WS300},{A=31.2},{B=100.8},{C=13.46},{D=55.9},{E=65.0},{F=15.9},{G=14.2},{H=16.5},{J=53.8},{K=29.2},{L=28.4},{M=76.84 / 76.07},{N=92.2},{R=12.7},{S=18.5},{T=35.1}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 20.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-300 |
