136951 - Dodge - WSTU-SCEZ-104-SHCR
Regular price
$243.86 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

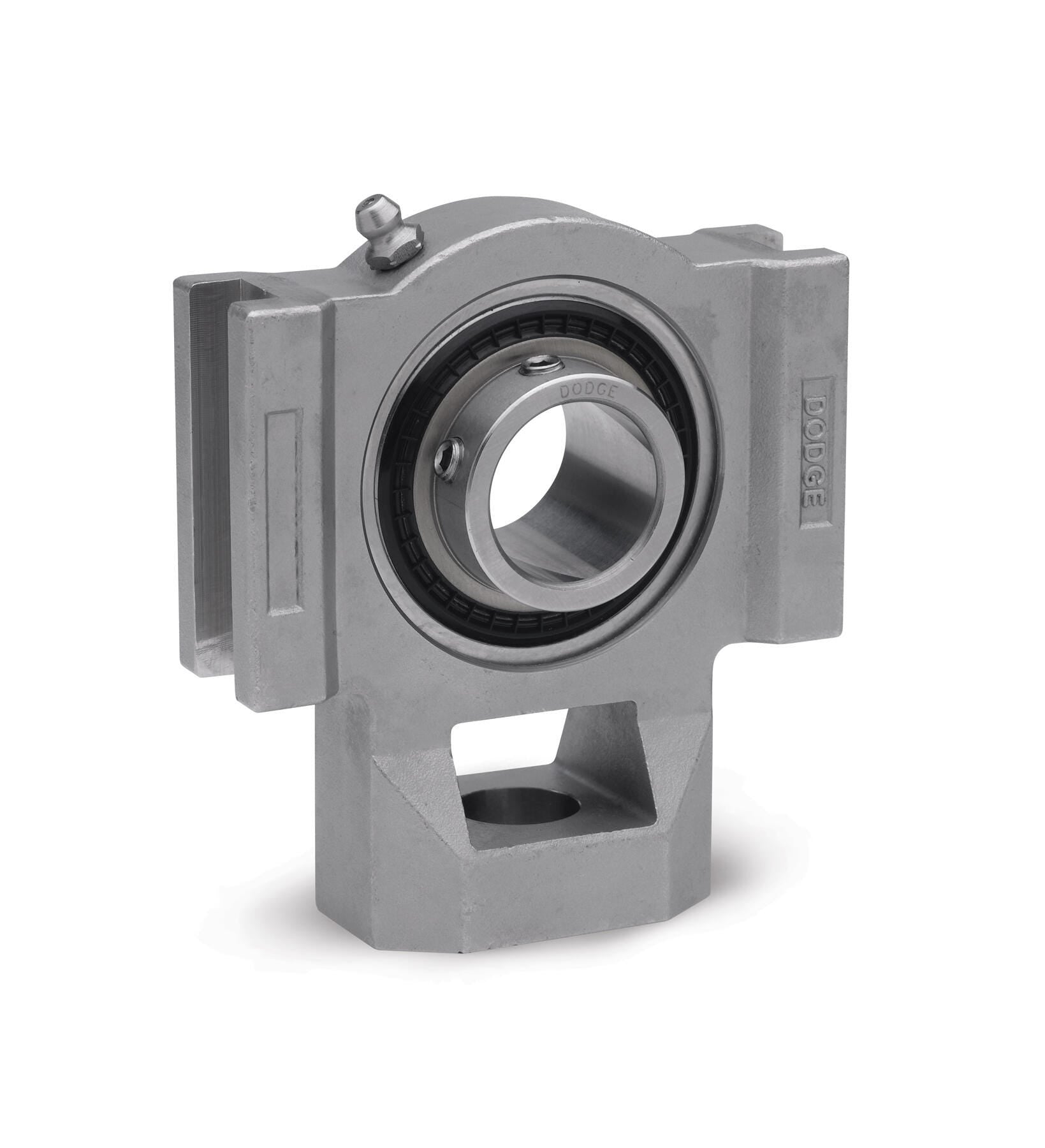

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136951 - Dodge - WSTU-SCEZ-104-SHCR
WSTU-SCEZ-104-SHCR
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bore Length | 1.7100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/wstu_scez_shcr_hi_asmtab.prj&varset={SERIES=207},{SS=1-1/4},{PN=136951},{DESCRIPTION=WSTU-SCEZ-104-SHCR},{W=3.21},{FS=WS308},{A=1.71},{B=4.99},{C=0.530},{D=2.26},{E=3.10},{F=3/4},{G=0.56},{H=0.65},{J=2.43},{K=1.39},{L=1.84},{M=3.540 / 3.510},{N=4.20},{R=0.67},{S=1.04},{T=1.62}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-308 |
