136945 - Dodge - NSTU-SCEZ-108-SHCR
Regular price
$261.53 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

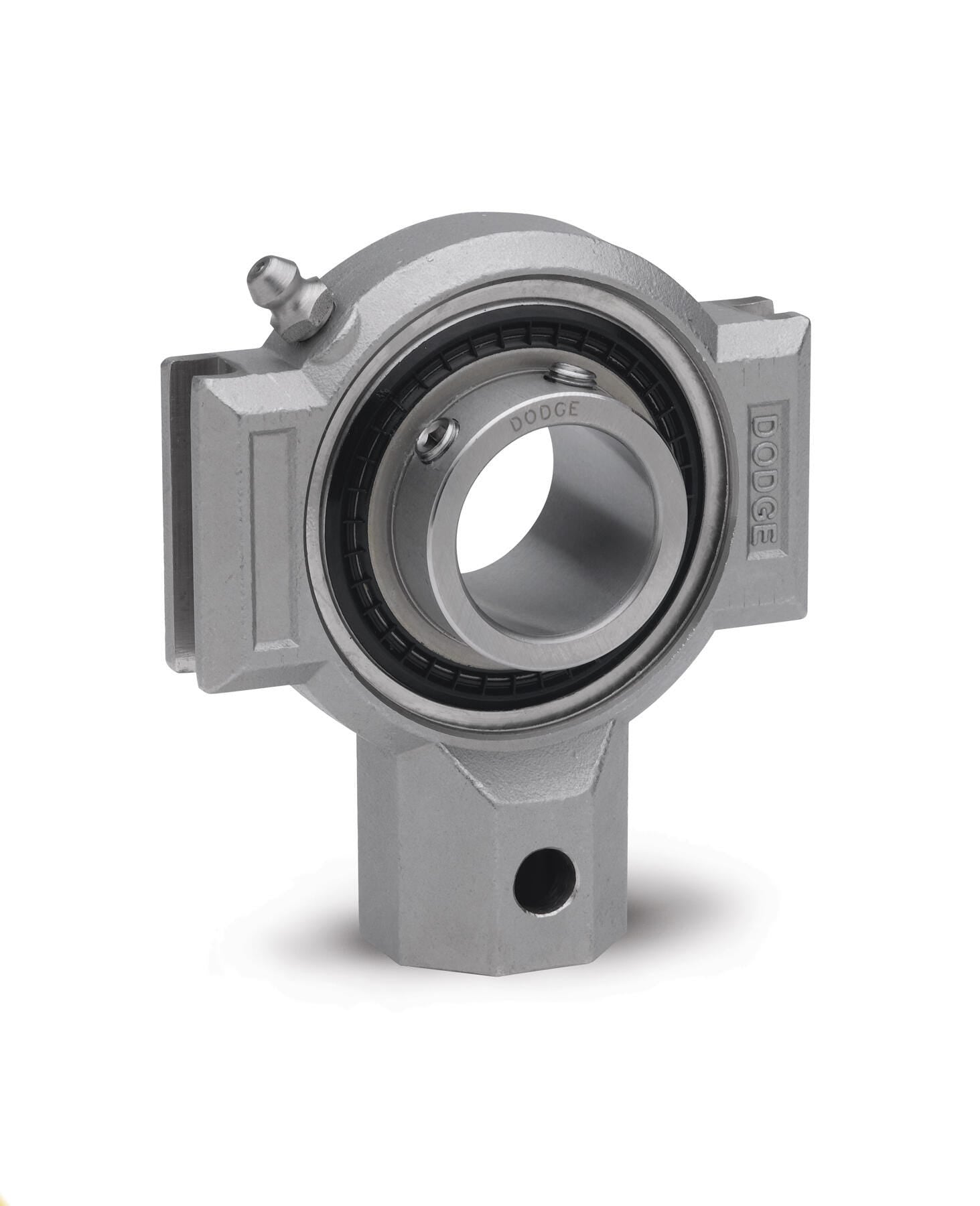

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136945 - Dodge - NSTU-SCEZ-108-SHCR
NSTU-SCEZ-108-SHCR
Technical Specifications
| Ball Bearing Series | 208 Series |
| Bearing Type | Ball |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/nstu_scez_shcr_hi_asmtab.prj&varset={SERIES=208},{SS=1-1/2},{PN=136945},{DESCRIPTION=NSTU-SCEZ-108-SHCR},{W=4.16},{FS=NS400},{A=1.94},{B=5.38},{C=0.328},{D=3.00},{E=3.25},{F=1},{G=0.66},{H=1.16},{J=1.50},{L=2.05},{M=4.015 / 3.985},{N=4.75},{P=0.38},{R=0.75},{S=1.19}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | NS-400 |
