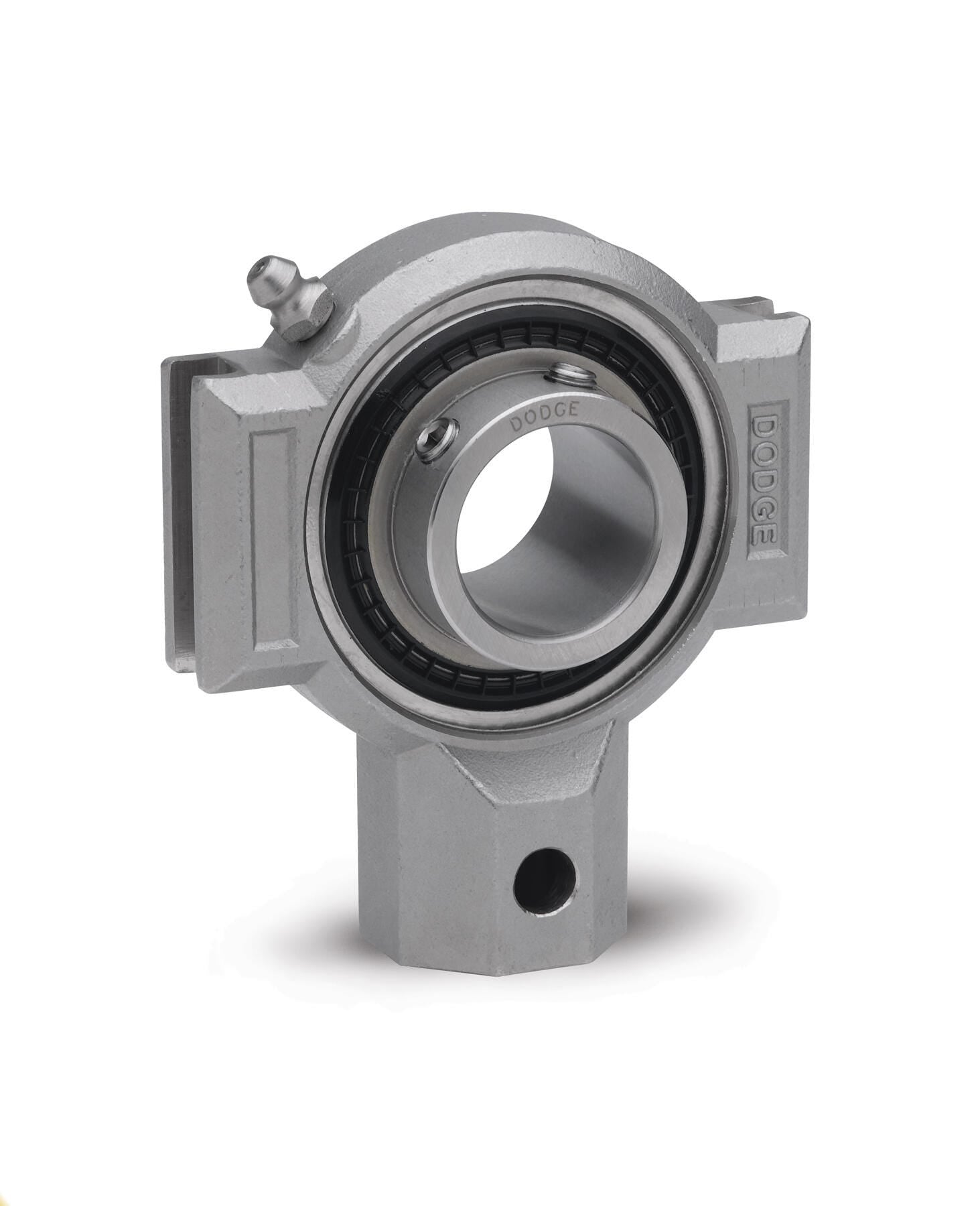

136939 - Dodge - NSTU-SCEZ-012-SHCR
Regular price
$161.43 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136939 - Dodge - NSTU-SCEZ-012-SHCR
NSTU-SCEZ-012-SHCR
Technical Specifications
| Ball Bearing Series | 204 Series |
| Bearing Type | Ball |
| Bore Length | 1.2300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/nstu_scez_shcr_hi_asmtab.prj&varset={SERIES=204},{SS=3/4},{PN=136939},{DESCRIPTION=NSTU-SCEZ-012-SHCR},{W=1.16},{FS=NS210},{A=1.23},{B=3.49},{C=0.265},{D=1.50},{E=2.19},{F=3/4},{G=0.44},{H=0.88},{J=1.20},{L=1.12},{M=2.635 / 2.605},{N=3.13},{P=0.32},{R=0.50},{S=0.73}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 0.7500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | NS-210 |
