136875 - Dodge - LF-SCEZ-30M-SHSS
Regular price
$239.22 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

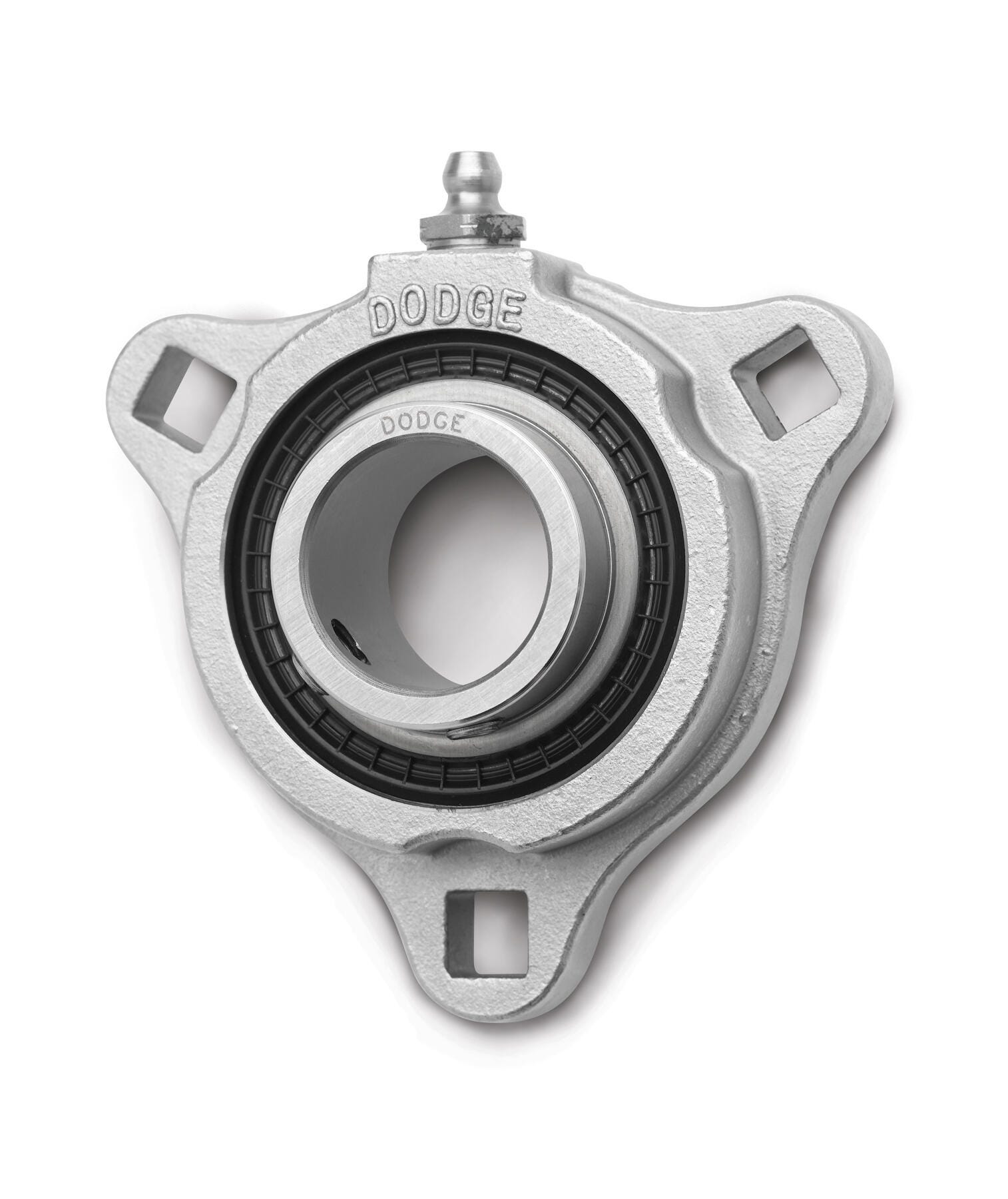

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136875 - Dodge - LF-SCEZ-30M-SHSS
LF-SCEZ-30M-SHSS
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bolt Circle | 3.5600 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.4063 |
| Bolt Diameter (Unit) | INCH |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/lf_scez_shss_hm_asmtab.prj&varset={SERIES=206},{SS=30},{PN=136875},{DESCRIPTION=LF-SCEZ-30M-SHSS},{W=0.54},{A=38.6},{B=112.8},{C=40.5},{D=90.4},{G=10.4},{H=15.5},{J=13.0},{L=39.9},{M=56.4},{N=50.3}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3713 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Three-Bolt Flange (Light Duty) |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
