136870 - Dodge - FB-SCEZ-35M-SHSS
Regular price
$335.34 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

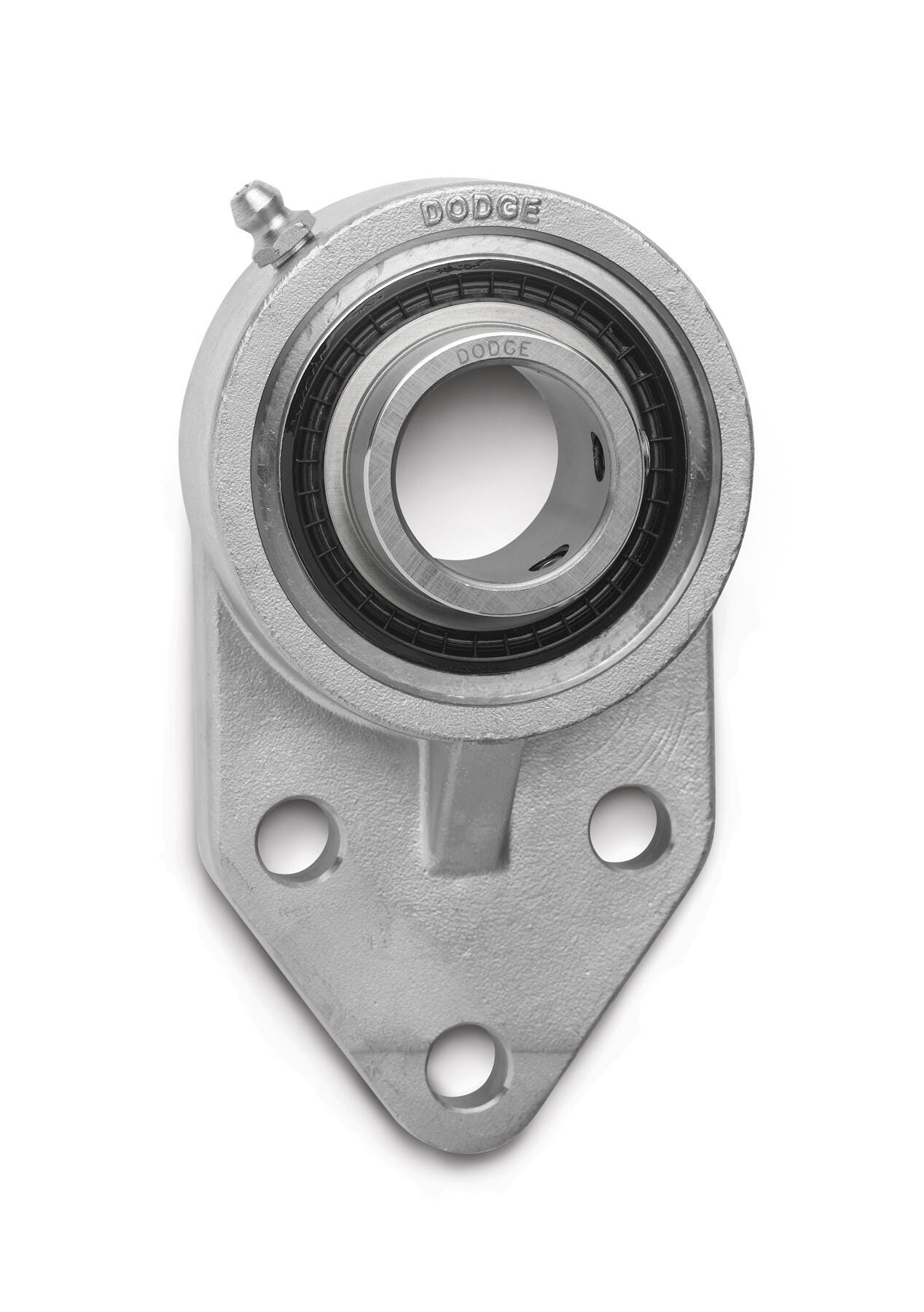

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136870 - Dodge - FB-SCEZ-35M-SHSS
FB-SCEZ-35M-SHSS
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.7100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/fb_scez_shss_hm_asmtab.prj&varset={SERIES=207},{SS=35},{PN=136870},{DESCRIPTION=FB-SCEZ-35M-SHSS},{W=1.3},{A=43.4},{B=152.4},{C=44.8},{D=50.8},{E=60.5},{F=M12},{G=31.8},{H=12.7},{I=108.0},{J=88.8},{K=31.0},{L=46.7},{M=82.6}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4895 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Flanged Bracket |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 35.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
