136854 - Dodge - P2B-SCEZ-50M-SHSS
Regular price
$481.68 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

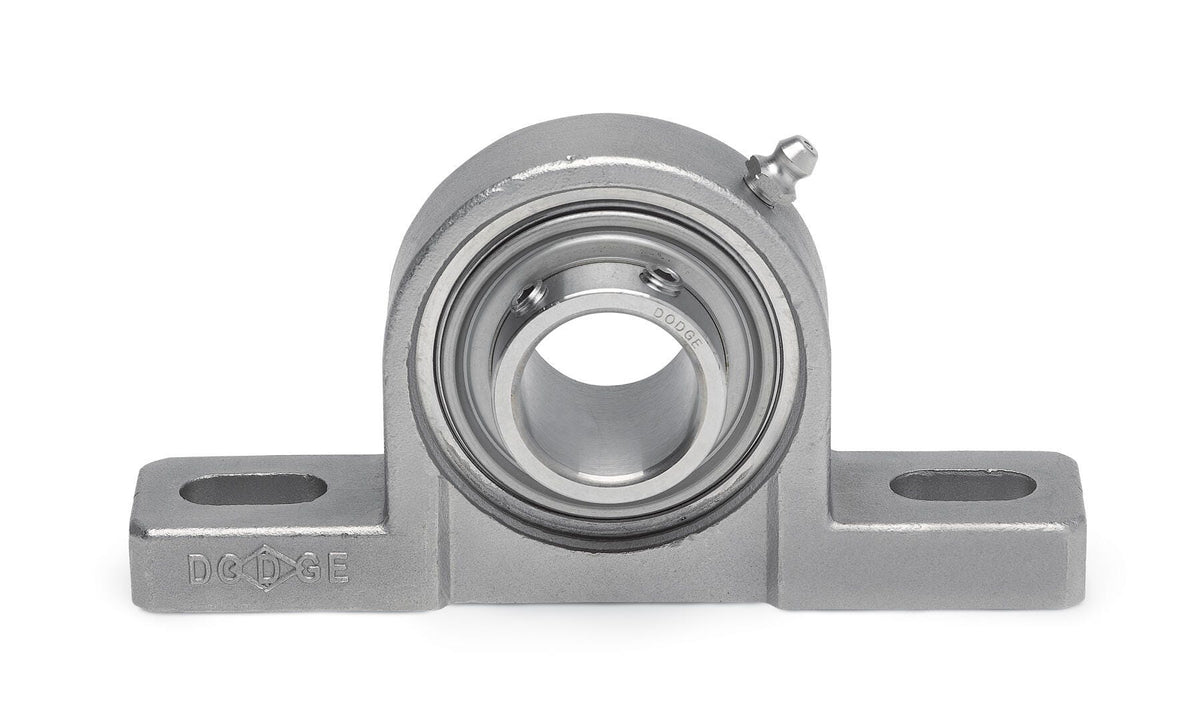

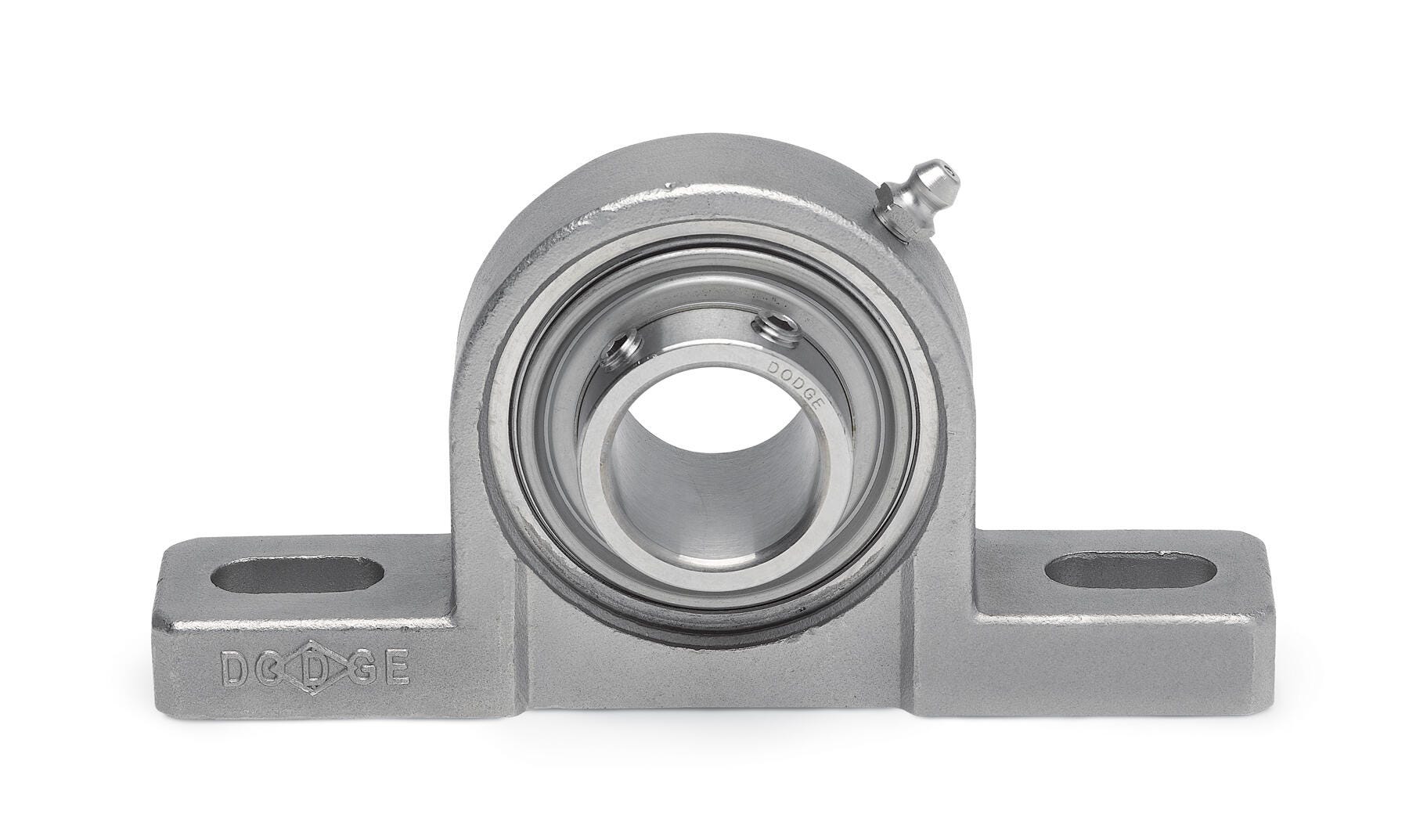

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136854 - Dodge - P2B-SCEZ-50M-SHSS
P2B-SCEZ-50M-SHSS
Technical Specifications
| Ball Bearing Series | 210 Series |
| Base to Center Height | 2.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.6800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.7600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/p2b_scez_shss_hm_asmtab.prj&varset={SERIES=210},{SS=50},{PN=136854},{DESCRIPTION=P2B-SCEZ-50M-SHSS},{W=2.29},{A=49.3},{B=203.2},{C=41.4},{DMIN=146.3},{DMAX=169.7},{F=M16},{G=29.0},{H=15.7},{J=109.5},{L=61.7},{M=57.2},{R=19.1},{S=30.2}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 6707 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 50.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 5213 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-30,TS-300 |
