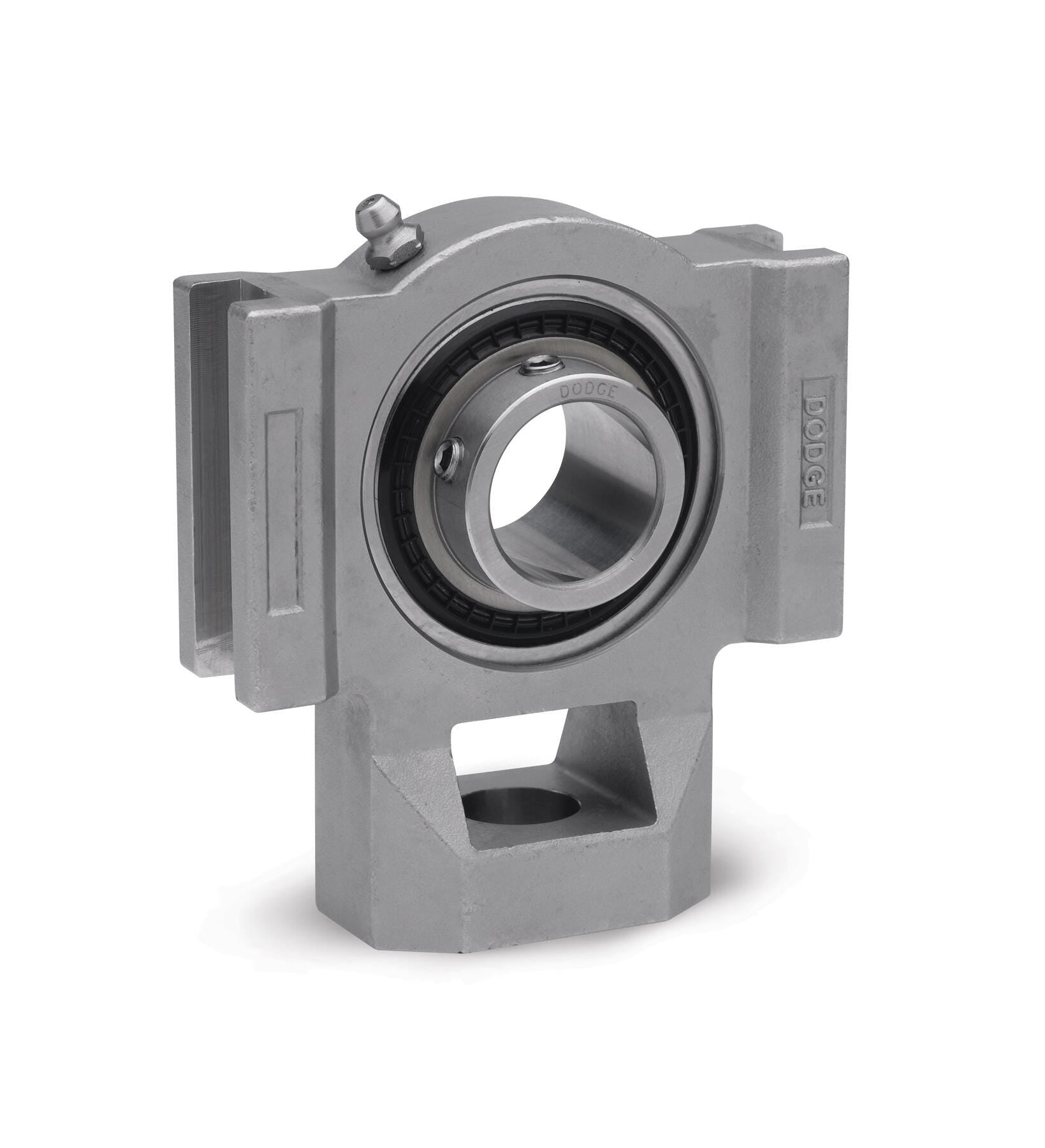

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136848 - Dodge - WSTU-SCEZ-115-SHSS
WSTU-SCEZ-115-SHSS
Technical Specifications
| Ball Bearing Series | 210 Series |
| Bearing Type | Ball |
| Bore Length | 1.9100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/wstu_scez_shss_hi_asmtab.prj&varset={SERIES=210},{SS=1-15/16},{PN=136848},{DESCRIPTION=WSTU-SCEZ-115-SHSS},{W=4.03},{A=1.94},{B=5.63},{C=0.688},{D=3.25},{E=3.50},{F=1},{G=0.63},{H=0.75},{J=2.75},{K=1.94},{L=2.43},{M=4.015 / 3.985},{N=4.50},{R=0.75},{S=1.19},{T=1.62}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 6707 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 5213 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-400 |
