136838 - Dodge - NSTU-SCEZ-107-SHSS
Regular price
$335.34 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

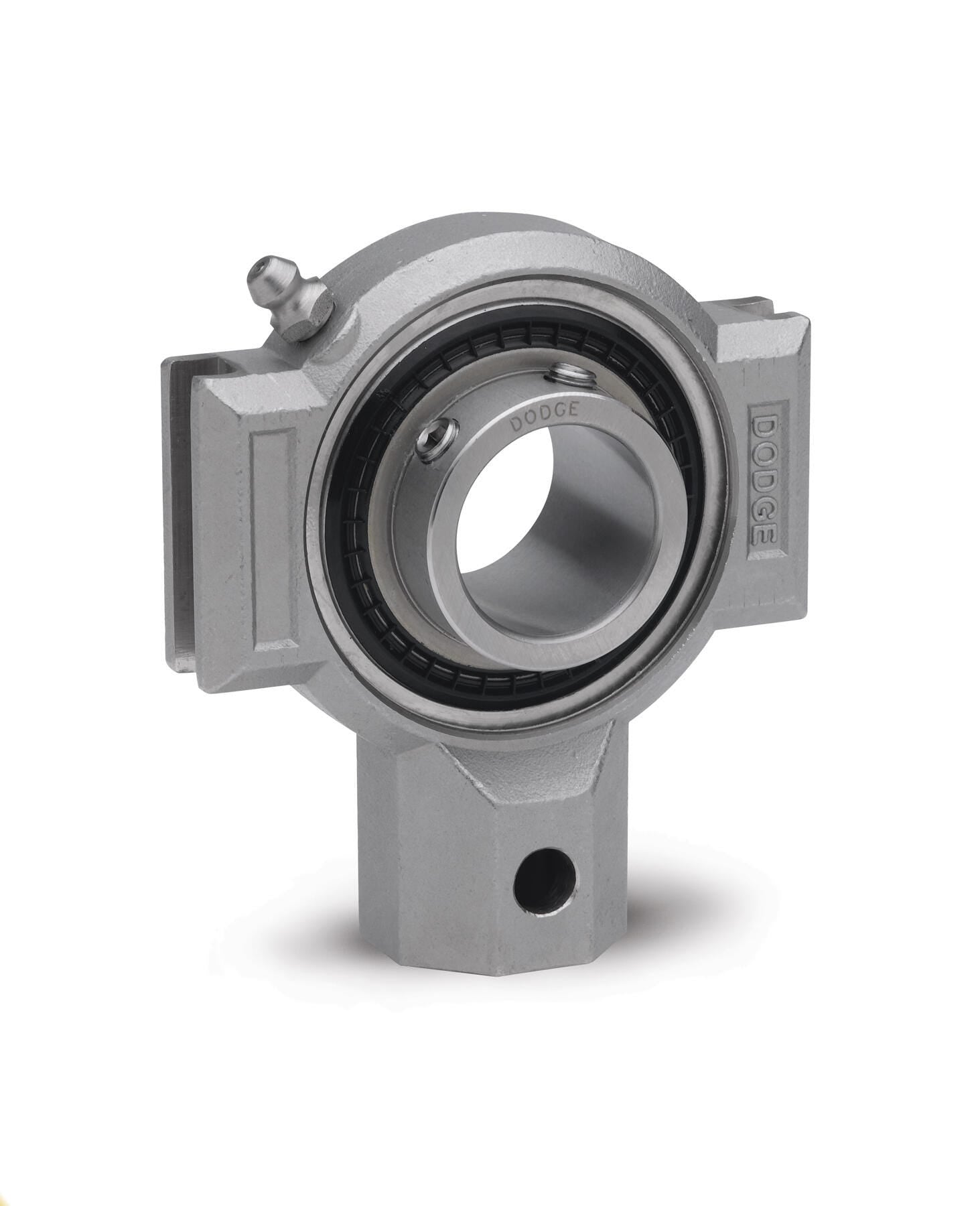

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136838 - Dodge - NSTU-SCEZ-107-SHSS
NSTU-SCEZ-107-SHSS
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bore Length | 1.7100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/nstu_scez_shss_hi_asmtab.prj&varset={SERIES=207},{SS=1-7/16},{PN=136838},{DESCRIPTION=NSTU-SCEZ-107-SHSS},{W=2.65},{FS=NS308},{A=1.71},{B=4.50},{C=0.265},{D=2.50},{E=2.69},{F=3/4},{G=0.50},{H=0.94},{J=1.20},{L=1.84},{M=3.510 / 3.480},{N=4.13},{P=0.32},{R=0.67},{S=1.04}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4895 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | NS-308 |
