136834 - Dodge - NSTU-SCEZ-100-SHSS
Regular price
$240.84 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

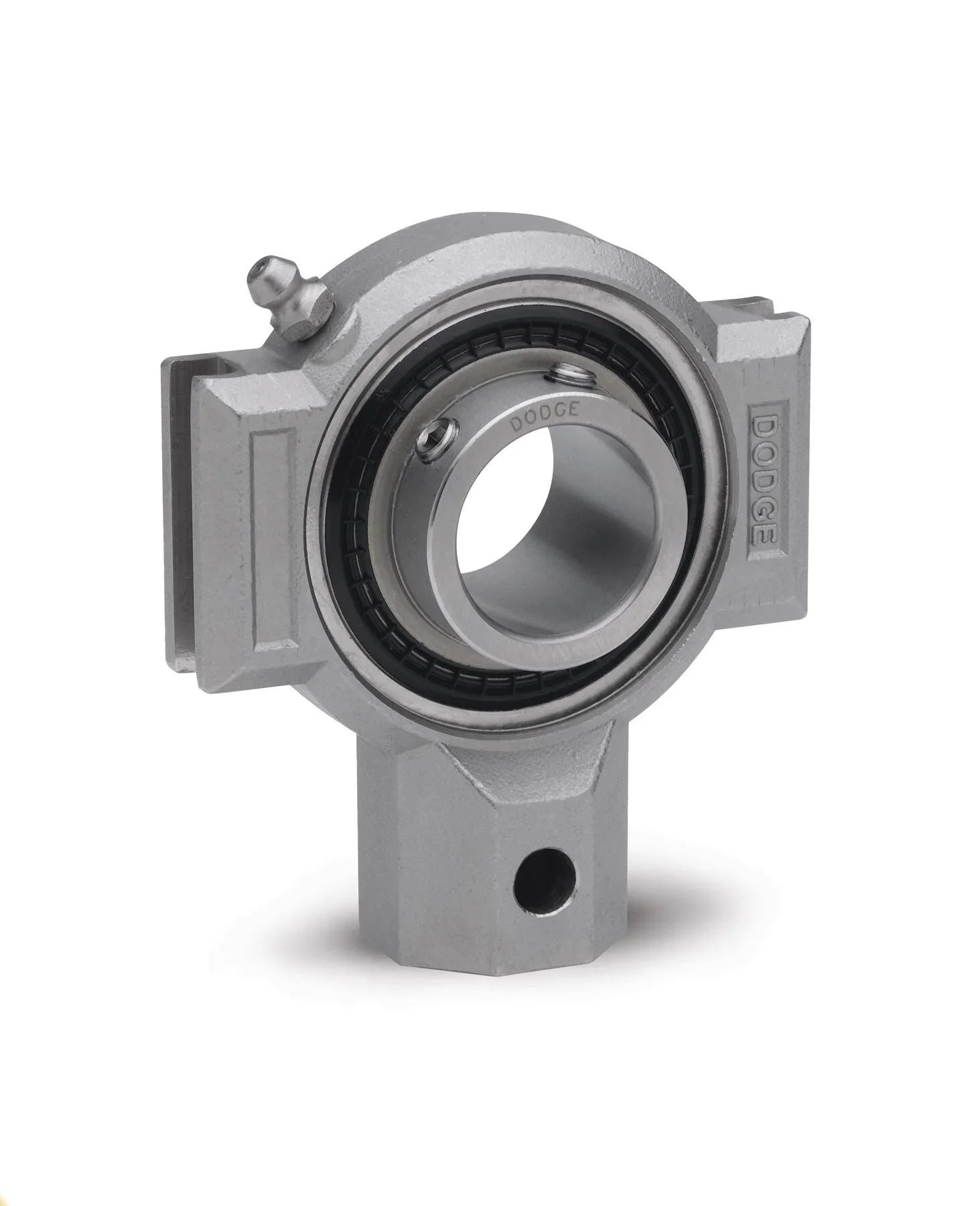

136834 - Dodge - NSTU-SCEZ-100-SHSS
NSTU-SCEZ-100-SHSS
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Type | Ball |
| Bore Length | 1.3400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/nstu_scez_shss_hi_asmtab.prj&varset={SERIES=205},{SS=1},{PN=136834},{DESCRIPTION=NSTU-SCEZ-100-SHSS},{W=1.06},{FS=NS210},{A=1.34},{B=3.49},{C=0.265},{D=1.50},{E=2.19},{F=3/4},{G=0.44},{H=0.88},{J=1.20},{L=1.32},{M=2.635 / 2.605},{N=3.13},{P=0.32},{R=0.56},{S=0.78}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2674 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | NS-210 |
