136802 - Dodge - FB-SCEZ-100-SHSS
Regular price
$240.84 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

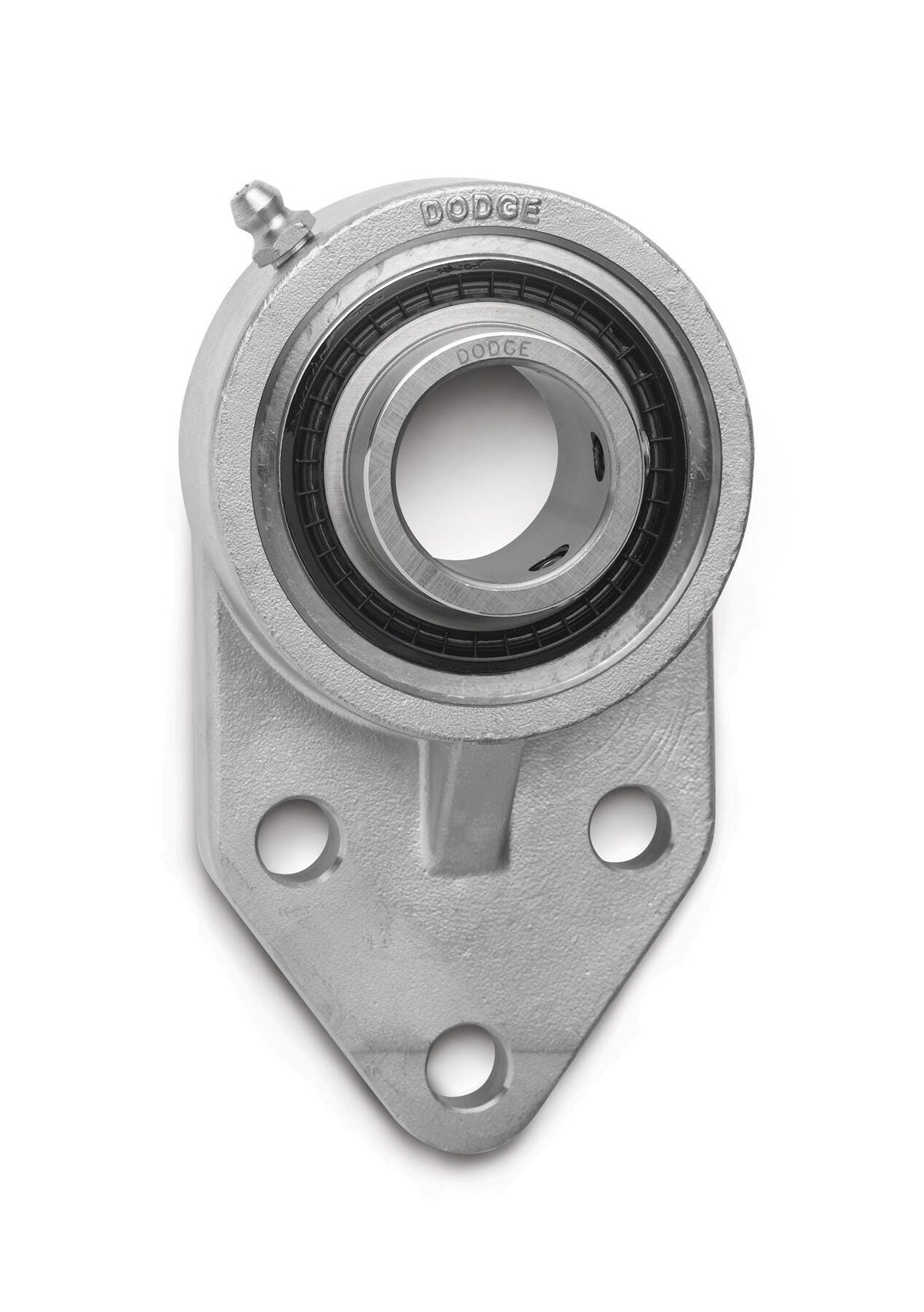

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136802 - Dodge - FB-SCEZ-100-SHSS
FB-SCEZ-100-SHSS
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 1.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 1.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.3400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/fb_scez_shss_hi_asmtab.prj&varset={SERIES=205},{SS=1},{PN=136802},{DESCRIPTION=FB-SCEZ-100-SHSS},{W=1.26},{A=1.34},{B=4.69},{C=1.37},{D=1.63},{E=1.81},{F=3/8},{G=1.13},{H=0.38},{I=3.38},{J=2.62},{K=0.98},{L=1.32},{M=2.50}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2674 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Flanged Bracket |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
