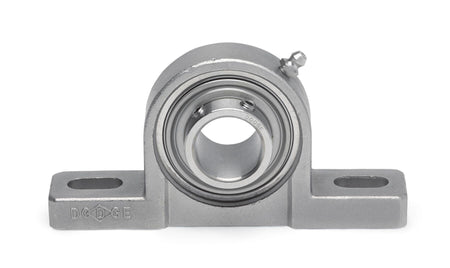

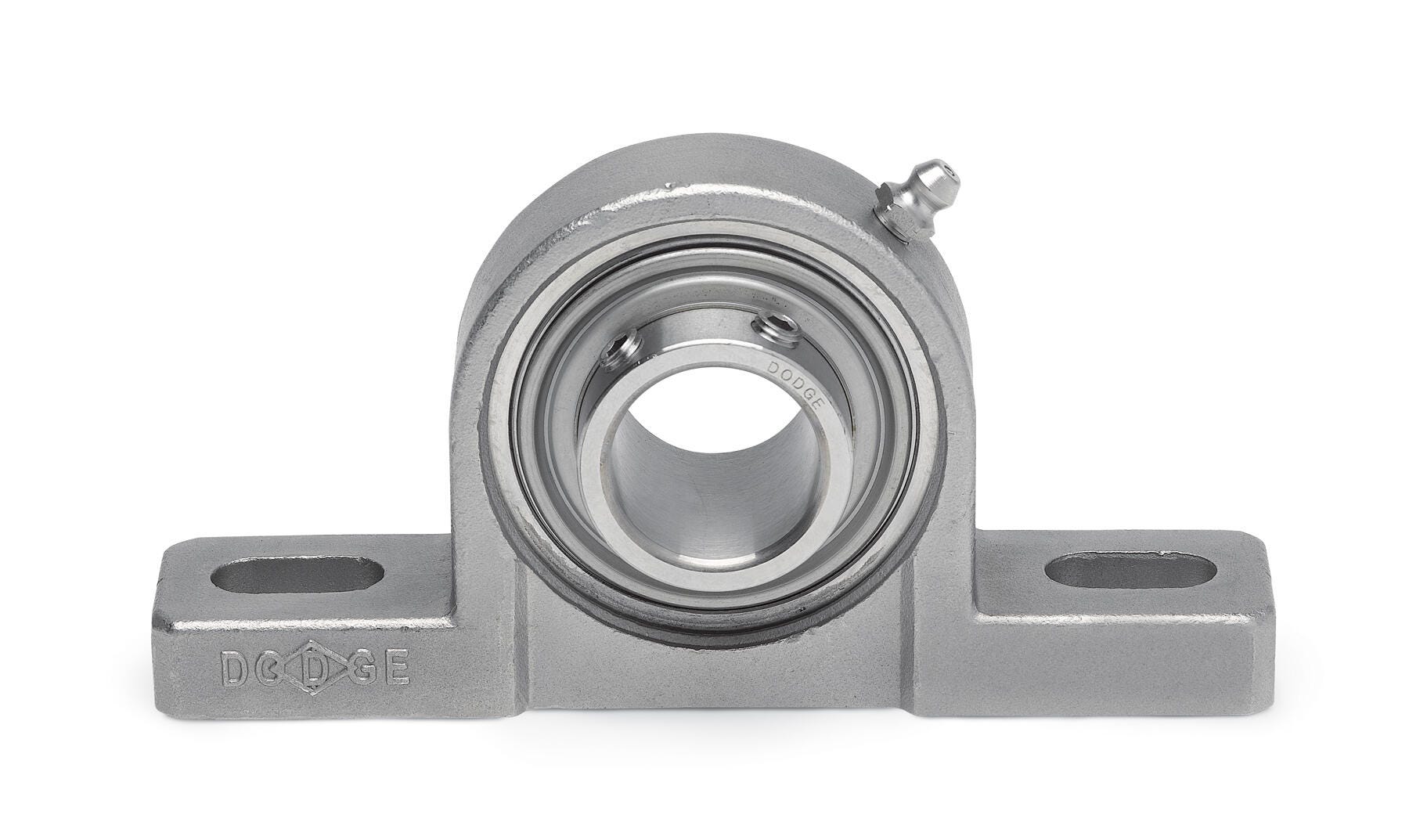

136773 - Dodge - P2B-SCEZ-012-SHSS
P2B-SCEZ-012-SHSS
Technical Specifications
| Ball Bearing Series | 204 Series |
| Base to Center Height | 1.3100 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.1900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/p2b_scez_shss_hi_asmtab.prj&varset={SERIES=204},{SS=3/4},{PN=136773},{DESCRIPTION=P2B-SCEZ-012-SHSS},{W=1.31},{A=1.23},{B=5.00},{C=1.00},{DMIN=3.38},{DMAX=4.18},{F=3/8},{G=0.84},{H=0.50},{J=2.50},{L=1.11},{M=1.31},{R=0.50},{S=0.73}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2464 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 0.7500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
