136712 - Dodge - F2B-SCEZ-103-PSS
Regular price
$203.58 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

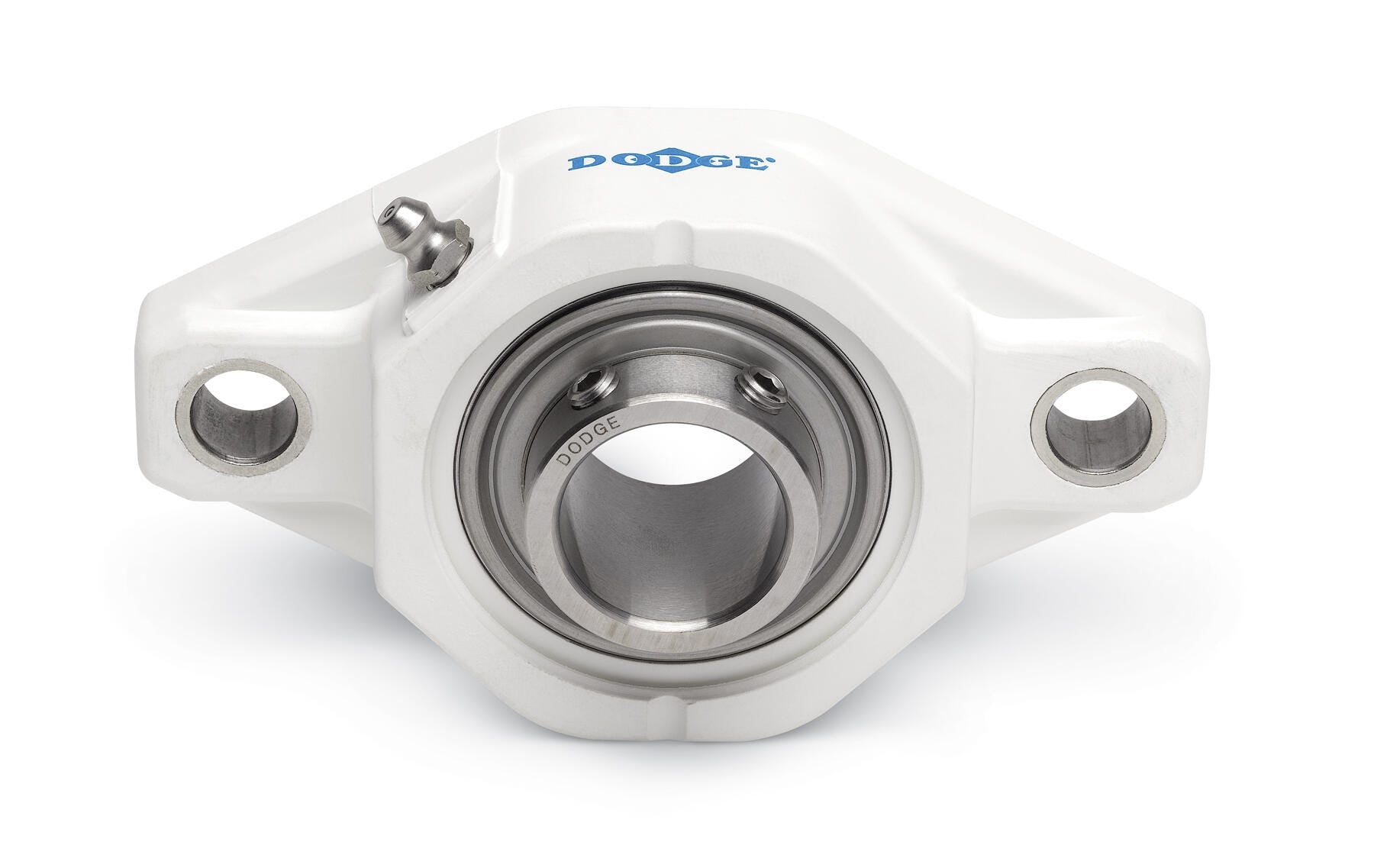

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136712 - Dodge - F2B-SCEZ-103-PSS
F2B-SCEZ-103-PSS
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.5900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.5900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.6100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/f2b_scez_pss_hi_asmtab.prj&varset={SERIES=206},{SS=1-3/16},{PN=136712},{DESCRIPTION=F2B-SCEZ-103-PSS},{W=0.86},{A=1.52},{B=5.58},{C=1.69},{D=4.59},{F=3/8},{H=0.60},{J=0.45},{L=1.57},{M=3.19}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Flange |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
